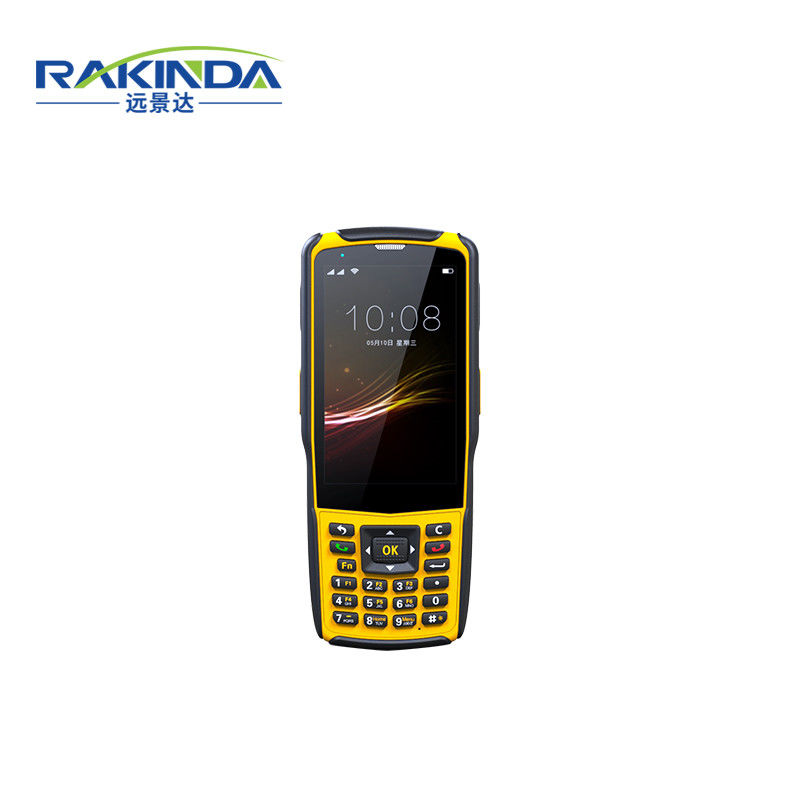

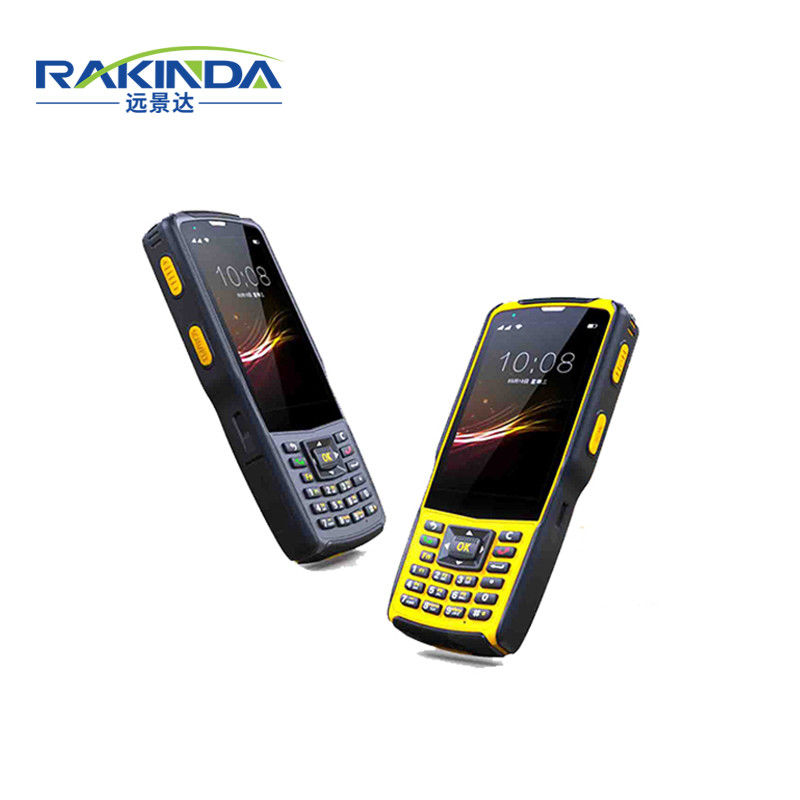

Industrial Gps Handheld PDA Scanner Inventory Reader Phone Accessories 4000mAh Battery

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE CCC
Model Number: S5
Minimum Order Quantity: 1 PC
Price: negotiation
Packaging Details: packing in carton
Delivery Time: 1-3 work days
Supply Ability: 100 pcs per week
Dimensions: 172mm*72mm*24.8mm Operating System: Android 5.1/Android 7.0
Weight: 320g IP: IP 67, 1.5m Drop
Interface: Micro USB +Charging Cradle Interface, 3.5mm Audio Battery: 4000mAh
Memory: RAM: 1GB/2GB; ROM: 8GB/16GB 4G Full Net: GSM (Band 3/8) WCDMA (Band 1/8) CDMA1X, EVDO (Band BC0) TD-SCDMA (Band 34/39) FDD-LTE (Band 1/3/7/17) TDD-LTE (Band 38/39/40/41)
Barcode Scanner: 2D
High Light:

desktop barcode reader


handheld uhf rfid reader

gps barcode reader inventory handheld oem phone accessories industrial pda

1. 4G Full Netcom PDA
2. 4G full Netcom, dual sim option

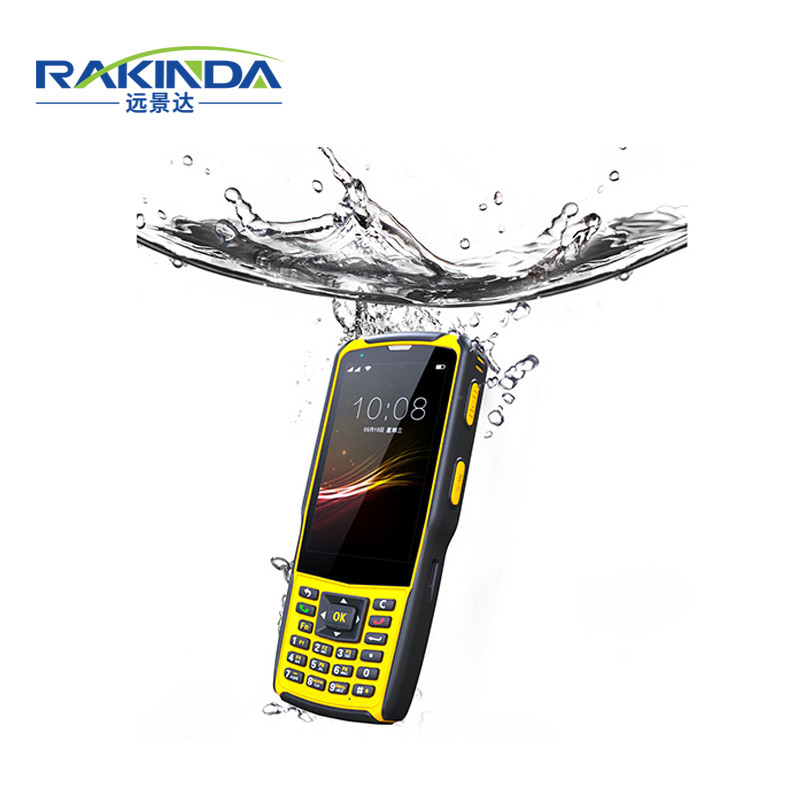

3. IP67 Industrial Design
4. Multi-functions to meet various application


1.It uses customized Apps management and administrator rights to solve the safety problem of Android system data;We can provide SDK so that you can dock your system.The device optimizes the system and makes the battery work longer hours; it has a wideapplication with data collector, wireless communication, bluetooth, GPS functions.

2.Application Scenarios:Asset management system fixed asset solution, product quality tracking management system, warehousing, logistics, vehicle, access control, book system system, ticket management system, commercial retail, coal mine safety (downhole attendance), a la carte machine, small hotel information entry

Industrial Gps Handheld PDA Scanner Inventory Reader Phone Accessories 4000mAh Battery 0





Model S5
Dimensions 172mm*72mm*24.8mm
Weight 320g




Key sides: power key, Volume key, left-scan key, right-scan key, and one of the scan key same as PTT key; front: number keys, five-navigation key, dial key, hang off key, back key, enter key, self definitions key (Fn)
  Input English, pinyin, handwriting, soft-keyboard




Operating System Android 5.1/Android 7.0
CPU Quad core 1.45Ghz
Screen 4 inch WVGA
Touch Capacitive Touch
Memory RAM: 1GB/2GB; ROM: 8GB/16GB



Data Collecting

1D Barcode Mainstream 1D code, such as Codabar, code 39, code 128, Interleaved 2 of 5, UPC, EAN, MSI etc.
2D Barcode (optional) Mainsteam 2D code, such as qr, PDF417, DataMatrix, Maxicode etc.
NFC (optional)

Frequency: 13.56Mhz RFID

Protocol: ISO14443A/B, ISO15693, ISO18000-3, Mifare, Felica RF, Kovio, NFC Forum Type 1-4 Tag



4G full Net GSM (Band 3/8) WCDMA (Band 1/8) CDMA1X, EVDO (Band BC0) TD-SCDMA (Band 34/39) FDD-LTE (Band 1/3/7/17) TDD-LTE (Band 38/39/40/41)
WIFI 802.11 a/b/g/n (2.4GHz/5GHz)
Bluetooth BT V4.0, BT 3.0+HS, V2.1+EDR
Expansion Camera 8-mega pixel camera, auto focus, LED light source
GPS GPS supports A-GPS and Beidou




Capacity 4000mAh
Expected Battery Life (Talking) 18 hours
Expected Battery Life (Standby) 500 hours
SIM SIM Dual Sim
Interface and accessories Expanded Slot Micro SD/TF (Max 32G)
Physical Interface Micro USB +Charging cradle interface, 3.5mm audio
Cradle (optional) Charge the PDA directly
Printer (Optional) Can connect all printers supporting bluetooth serial protocol
Other accessories Adaptor, cable, handstrap
Certifications IP IP 67, 1.5m drop
  Certificates CTA, CCC, CE, RoHS
  Laser Safety IEC2 / FDA II, IEC60825 / EN60825-1



Q1: Can I get some samples? Are they free?

A1: Of course you can get sample for testing before bulk order, but samples are not free.

Q2: What's the delivery time?

A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.

Q3: What about payment methods?

A3: Payment terms: Online payment, T/T,West Union and Paypal, etc.

Q4: Can you list the product of your company?

A4: Barcode Scanner Module, Bluetooth Barcode/RFID Scanner, Desktop/Handheld Barcode Scanner.

Q5: Where can we download the user manual of your products?

A5: User manual will be sent to you by email after the sample order.

Q6: Warranty time?

A6: 1 year.

Q7: Do you provide Evaluation Kit for testing barcode scanner modules?

A7: Yes,but EVK should be purchased separately.

Q8: Product OEM?

A8: Yes, but it requires certain MOQ and the cost need to be added separately.

Q9: Customer service?

A9: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.

Q10: What shiping methods do you have?

A10: Since our products are very small, the common shiping methods are post air mail or fast express.
