| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE FCC ROHS |
| Model Number: | S2 plus |
| Minimum Order Quantity: | 1 PCS |
| Price: | negotiation |
| Packaging Details: | packing in carton |
| Delivery Time: | 1-3 work days |
| Supply Ability: | 100 pcs per week |
| Color: | Black/Orange | Weight: | 300g |
|---|---|---|---|
| Scan Speed:: | 200 Scans/sec | Interface: | USB |
| Battery: | 5200mAh | Dimensions: | 155x80x17mm |
| Styple: | Full Touch Smart Phones Look | Wireless And Communication: | 2D Scan/Wifi/GPRS/Bluetooth4.0/GPS/NFC |
| Memory Capacity: | RAM 2G,ROM 16G | Scanning Light Source: | Natural Light+LED |
| Highlight: | desktop barcode reader,handheld uhf rfid reader |
||

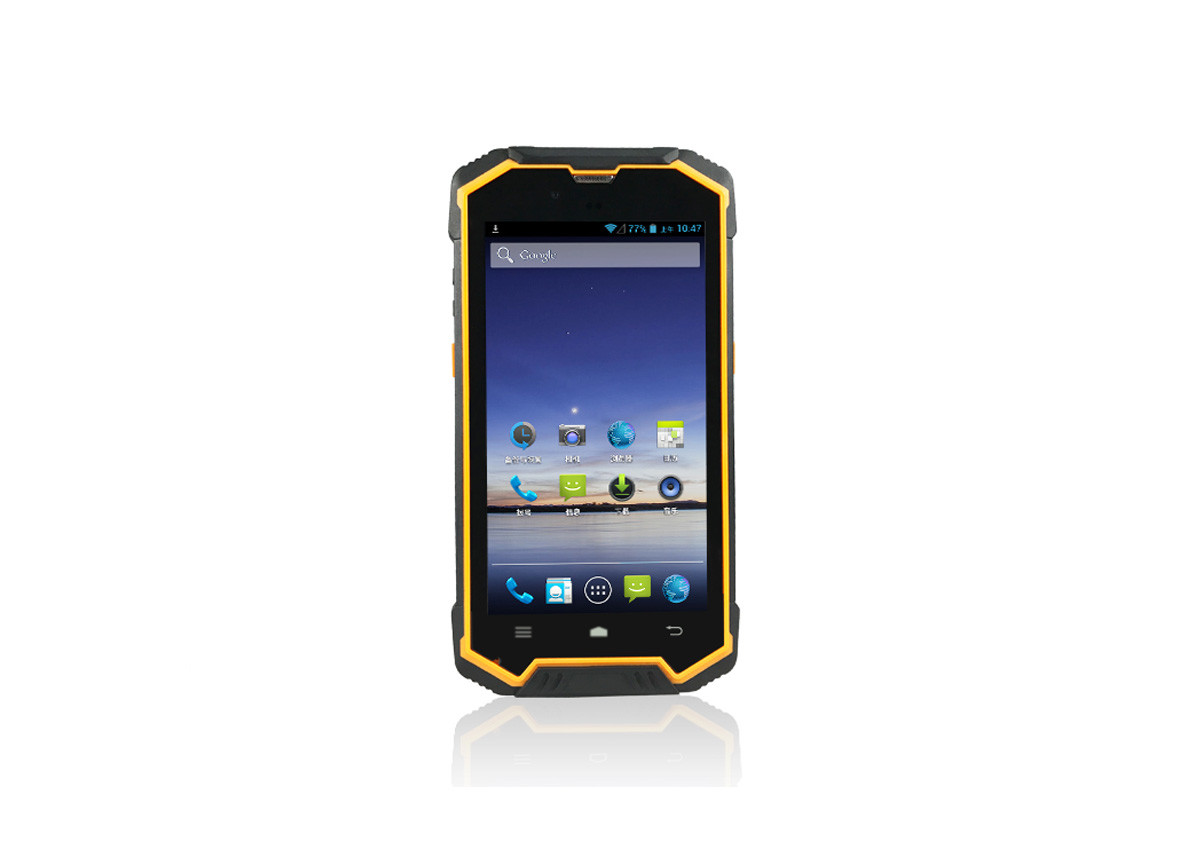

Factory IP68 PDA Bluetooth Android Handheld QR Code Barcode Scanner NFC Reader
Rakinda is development and management of data acquisition, PDA handheld terminals, wireless handheld inventory machines, two-dimensional code collector, bar code scanner, wince Andrews collector and other equipment, while providing computer software development, web site building, membership management software, performance management system, Invoicing management system, question answering system and related technical services. Shenzhen rakinda technology professionals engaged in PDA handheld terminal program development, smart city IOT system development, has been committed to serving all types of business services and individuals. Our research and development direction based on the changes in the trend of the times on the network to develop the site products for the market demand.
| SPECIFICATION CHART | |
| Physical Characteristics | |
| Dimension | 155x80x17mm |
| Weight | 300g |
| screen | 5"HD(1280X720)screen |
| Audio | speaker, 2 microphones |
| Interfaces | micro USB support OTG |
| Performance | |
| CPU | Quad core 1.2GHz,dominant frequency |
| RAM+ROM | 1GB+16GB |
| Expansion | Supports up to 32 GB Micro SD card |
| Developing Environment | |
| Operating System | Android 5.1 |
| SDK | Rakinda Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| User Environment | |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% - 95%RH (Non-condensing) |
| Sealing | IP68 |
| Drop Specification | Multiple 1.5m (at least 20 times) to the concrete across the operating temperature range |
| Communication | |
| WLAN | WiFi 802.11a/b/g/n(Dual-band 2.4GHz/5GHz) |
| Bluetooth | support bluetooth 3.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| NFC | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4cm |
| Camera | |
| Camera | 13MP autofocus camera with flash |
| Barcode Scanners (Optional) | |
| 2D Imager Scanner | Zebra SE4710/Honeywell N6603 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, DutchPostal (KIX), etc |
Rakinda Group is one of the leading Auto-ID solution supplier in China, with more than 17 years professional experience. Rakinda always keep an eye on the latest news about IoT and Auto-ID industry, and develops new products to meet new demands of customers all over the world. Latest company news and industry news can be found here. Besides, Rakinda spares no efforts to share our experience with you, so that you can find a better solution for your projects. And we share successful cases we have done for different industries, including smart traffic, intelligent self-service terminals, access control system, mobile devices, parking, vending solution, payment terminal, etc. Rakinda looks forward to working with you sincerely!
FAQ
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: How can I buy?
A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q4: What is your payment method?
A4: We accept online credit card, TT, Paypal, Western Union.
Q5: Can I visit your factory:
A5: Yes, you are warmly welcome.
Q6: How long is your warranty time:
A6: 1 Year.
Q7: Where can we download the user manual of the scanners?
A7: We will send by email after you get samples.
Q8: What's the lead time?
A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q9: Can you provide OEM service?
A9: Yes. We need further discuss about details.
Q10: How do you ship the scanners usually?
A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
