Handheld Qr Code Pda Barcode Scanner Industrial Android 7.0 For Logistics Warehouse

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FC ROHS
Model Number: S5
Minimum Order Quantity: 1 PCS
Price: negotiation
Packaging Details: packing in carton
Delivery Time: 1-3 work days
Supply Ability: 100 pcs per week
Dimensions: 172mm*72mm*24.8mm Operating System: Android 7.0
Weight: 320g IP: IP67, 1.5m Drop
Interface: Micro USB +Charging Cradle Interface, 3.5mm Audio Battery: 4000mAh
Memory: RAM: 1GB/2GB; ROM: 8GB/16GB Input: English, Pinyin, Handwriting, Soft-keyboard
Highlight:

desktop barcode reader

,

barcode reader scanner

IP67 Industrial Design with Multi-functions to meet various application for Logistics, Warehouse management, chain stores, food traceability, medical etc.

S5 .pdf

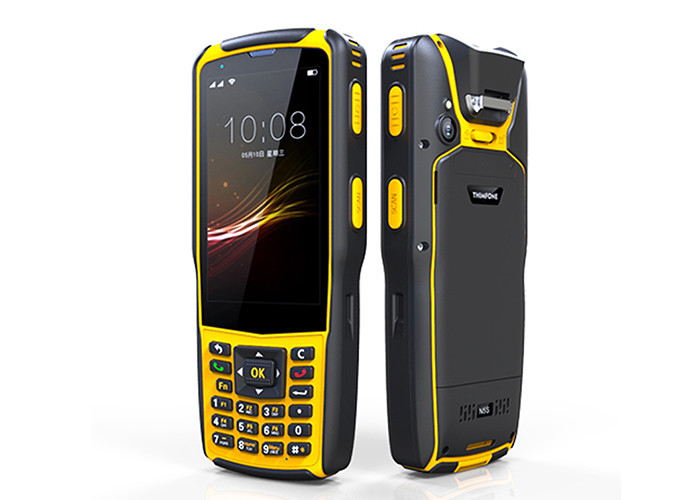

S5 Android Smartphone PDA
1. 4G Full Netcom PDA
2. 4G full Netcom, dual sim option
3. IP67 Industrial Design
4. Multi-functions to meet various application







Physical

Model S5
Dimensions 172mm*72mm*24.8mm
Weight 320g





Keypad

Key sides: power key, Volume key, left-scan key, right-scan key, and one of the scan key same as PTT key; front: number keys, five-navigation key, dial key, hang off key, back key, enter key, self definitions key (Fn)
  Input English, pinyin, handwriting, soft-keyboard





Performance

Operating System Android 5.1/Android 7.0
CPU Quad core 1.45Ghz
Screen 4 inch WVGA
Touch Capacitive Touch
Memory RAM: 1GB/2GB; ROM: 8GB/16GB





Data Collecting

1D Barcode Mainstream 1D code, such as Codabar, code 39, code 128, Interleaved 2 of 5, UPC, EAN, MSI etc.
2D Barcode (optional) Mainsteam 2D code, such as qr, PDF417, DataMatrix, Maxicode etc.
NFC (optional)

Frequency: 13.56Mhz RFID

Protocol: ISO14443A/B, ISO15693, ISO18000-3, Mifare, Felica RF, Kovio, NFC Forum Type 1-4 Tag



Communications

4G full Net GSM (Band 3/8) WCDMA (Band 1/8) CDMA1X, EVDO (Band BC0) TD-SCDMA (Band 34/39) FDD-LTE (Band 1/3/7/17) TDD-LTE (Band 38/39/40/41)
WIFI 802.11 a/b/g/n (2.4GHz/5GHz)
Bluetooth BT V4.0, BT 3.0+HS, V2.1+EDR
Expansion Camera 8-mega pixel camera, auto focus, LED light source
GPS GPS supports A-GPS and Beidou





Battery

Capacity 4000mAh
Expected Battery Life (Talking) 18 hours
Expected Battery Life (Standby) 500 hours
SIM SIM Dual Sim
Interface and accessories Expanded Slot Micro SD/TF (Max 32G)
Physical Interface Micro USB +Charging cradle interface, 3.5mm audio
Cradle (optional) Charge the PDA directly
Printer (Optional) Can connect all printers supporting bluetooth serial protocol
Other accessories Adaptor, cable, handstrap
Certifications IP IP 67, 1.5m drop
  Certificates CTA, CCC, CE, RoHS
  Laser Safety IEC2 / FDA II, IEC60825 / EN60825-1

Features:
1.4G full Netcom, dual sim option
Supports GSM/WCDMA/TD-LTE/FDD-LTE/CDMA1X/TD-SCDMA/EVDO; it can support 2G/3G/4G by China Mobile, Unicom, and Telecom. The device also has a dual SIM option, allowing you to use the most suitable provider available wherever you go.


2.Powerful Scanning Performance
The PDA embeds high-quality 1D laser scan engine or 2D image scan engine to ensure fast scanning performance.
It supports NFC also. With 8-
megapixel camera and LED light source, it can take high definition pictures anytime and anywhere.


3.Built to survive demanding environments

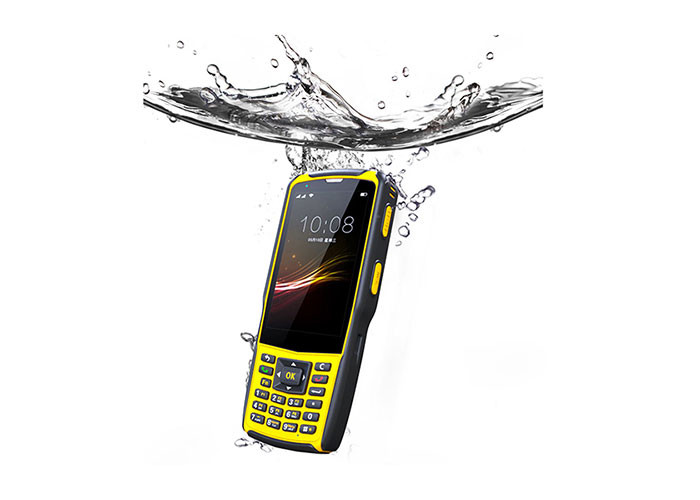

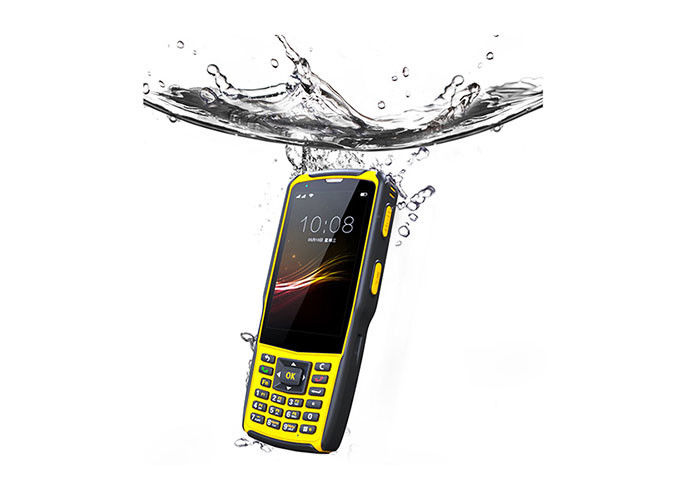

No matter the environment, S5 offers you a reliable solution. With IP67 sealing, it is highly protected from dust and moisture. The device can withstand
1.5m drop to ground (twice for every surface). The device can work normally after it is dropped into water! It is 4.0” touchscreen. S5 supports both dry and moist hands, as well as gloved fingertip touch input. Ideal for use in severe conditions, such as rain, snow, and dust.


4.Full-function Android system
It uses customized Apps management and administrator rights to solve the safety problem of Android system data;
The device optimizes the system and makes the battery work longer hours; it has a wide application with data collector, wireless communication, Bluetooth, GPS functions.

Handheld Qr Code Pda Barcode Scanner Industrial Android 7.0 For Logistics Warehouse 0

Application Scenarios:
Logistics, Warehouse management, chain stores, food traceability, medical, distributor management, manufacturing, and assets counting.
