| Place of Origin: | China |
|---|---|
| Brand Name: | RAKINDA |
| Model Number: | RK360 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | Within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 200PCS/Week |
| Weigh: | 75g | Light Source: | Visible Laser Diode 650 Nm |
|---|---|---|---|
| Colour Depth: | 32 Bit | Response Time: | Less Than 0.4 Sec |
| Scan Element Type: | CMOS | Scan Mode: | Trigger/Auto Sense/Continuous Reading |
| Symbol Contrast: | ≥30% Reflectance Difference | Ip Rating: | IP54 |
| Application: | Kiosk/Production Line | Sensor: | 1280 X 1024 CMOS |
| Sealing: | IP54 | Motion Tolerance: | 4 Meters/s |
| Drop Resistance: | 1.5 Meters | Scan Type: | Laser |
| Operating Voltage: | 3.0~5.5VDC | ||
| High Light: | desktop barcode reader,barcode reader scanner |
||

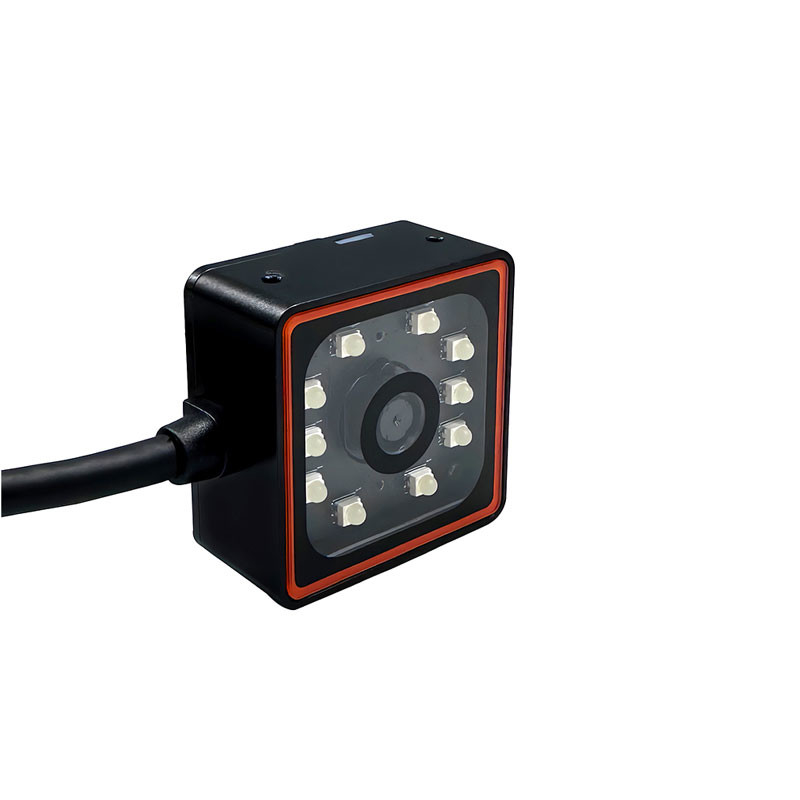

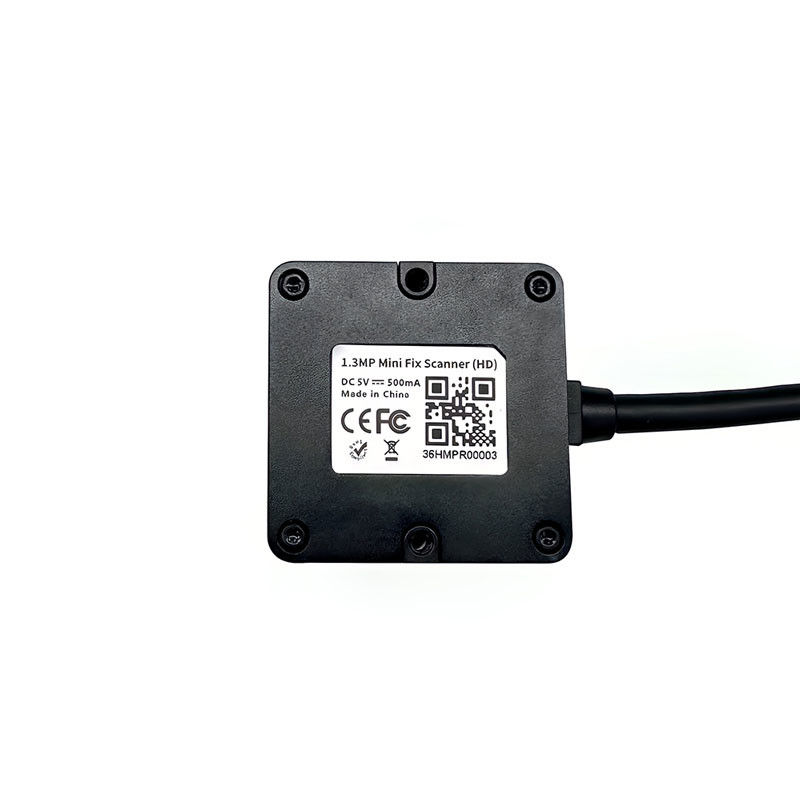

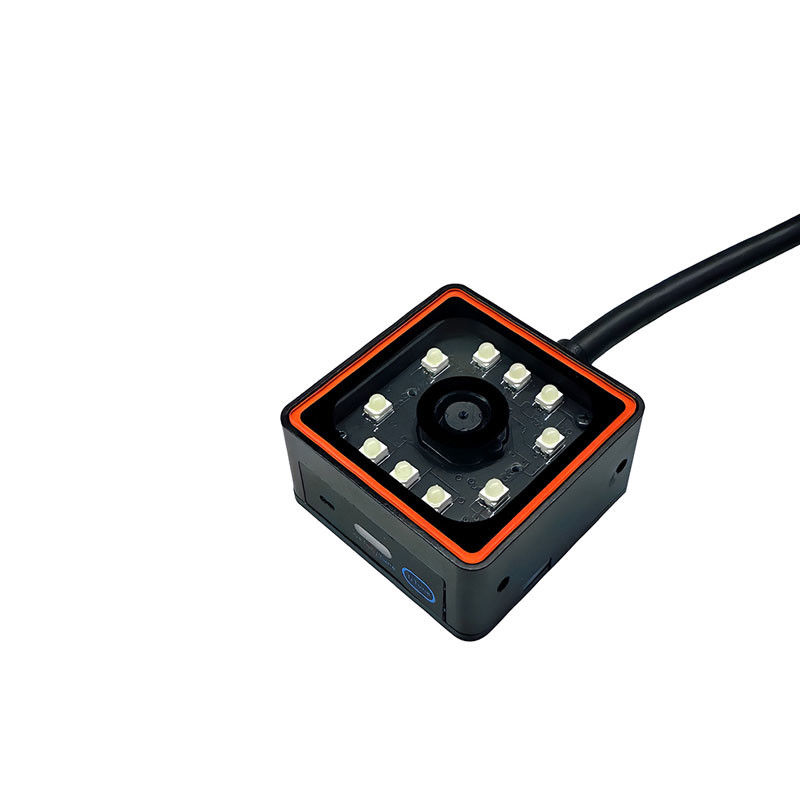

Enhance your industrial automation processes with the RK360 Small Barcode Scanner, a cutting-edge solution designed to boost operational efficiency and reliability across various industries.
Product Overview
High-Performance Small DPM Barcode Scanner for Industrial Applications
Experience the future of industrial automation with the RK360 Small Barcode Scanner, engineered to deliver unmatched performance and efficiency. This compact barcode scanner is equipped with a high-resolution megapixel image sensor that accurately reads both 1D and 2D barcodes, making it an essential tool for modern industrial environments.
Key features include anti-vibration, anti-dirt, and adaptive brightness technologies, ensuring consistent and reliable operation in even the most challenging conditions. Its lightweight, compact design allows for easy installation in various settings, while its high-strength aluminum alloy construction, coupled with an IP65 protection rating, offers superior durability against dust and water exposure.
Key Features of the RK360 Small Barcode Scanner:
- High-Resolution Megapixel Image Sensor: The scanner is equipped with a 1280*1080 high-resolution image sensor for precise and accurate barcode recognition, crucial for high-speed industrial operations.
- Compact Design & Easy Installation: Featuring proprietary barcode recognition technology, the RK360 delivers fast and efficient barcode scanning in a compact form factor, ideal for space-constrained environments.
- Durable Aluminum Alloy Shell: Constructed from high-strength aluminum alloy and rated IP65, the RK360 offers robust protection against environmental hazards, ensuring longevity and reliability.
- Wide Viewing Angle & High Frame Rate: With a 36° horizontal and 43° vertical viewing angle, along with a 60 FPS frame rate, the scanner’s advanced third-generation decoding technology enables superior dynamic reading performance, even in high-speed applications.
Invest in the RK360 Small Barcode Scanner to enhance your industrial automation systems with state-of-the-art barcode scanning technology, designed for reliability, durability, and top-tier performance.
Parameters of Conveyor belt scanner module
| Parameter List | ||
| Performance And Specification Parameters Table | ||
| Resolution Ratio | 1080 (H) * 1280 (V) 1.3M high-performance sensor | |
| Lighting | 10 LEDs (3 up and down, 2 left and right), red light source | |
| The Main Chip | ARM Cortex-A7,1.2G High-performance CPU, MIPI interface | |
| Aim At The Instructions | High-brightness red dots aim | |
| Reading Mode | Automatic induction, continuous mode, pulse mode (external trigger) | |
| Field Of View Angle | Horizontal (H) 36°, and vertical (V) 43° | |
| 1D Reading Code System | UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 | |
| Code11, Codabar , Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 | ||
| Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded | ||
| RSS-14 Limited ,Composite Code | ||
| 2D Reading Code System | PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , Maxi Code | |
| Poor Movement Capacity | Continuous scan mode: 0.5 m per second | |
| External trigger mode: 1.0-1.5 m per second | ||
| Data Interface | ||
| Communication | RS232, USB (HID; CDC), EA100: Ethernet / TCP / IP | |
| External Input | With external trigger line or control box: 1 optical coupling isolation input (NPN / PNG / relay) | |
| External Output | Version of the connection control box: 2 optical coupling isolation output (Good; NG) | |
| Supply Electricity | Direct connection version: 5VDC, control box: 5-24 VDC (network port support POE power supply) | |
| Physical Characteristics | ||
| Appearance Size | 38 (W) 38 (D) 19 (H) (mm), the part without the SR | |
| Weight | The host machine is about 40g, without the weight of the wire rod | |
| Case Material | Alufer | |
| Case Protection | IP65 | |
| Reliability | ||
| Storage Temperature | -40℃~+70℃ | |
| Working Temperature | -10℃~+50℃ | |
| Relative Humidity | 5%~95% (no condensation) | |
| Ambient Brightness | 0~8,600 Lux (fluorescent) 0~100,000 Lux (daylight) | |
| Safe Code | CE EN55022 , FCC Part 15 Class B , CE EMC Class B | |
| Work Vibration | 10 to 150HZ,0.5G, 3 axial, 1min / ct, 1 time / axial | |
| Durable Vibration | 10 to 150 HZ, 2G, 3 axial, 1min / ct, 20 times / axial direction | |
| Typical Read Code Depth Of Field | ||
| The Focal Range is Adjustable | HD | SR |
| Read Accuracy | 1D ≧3 mil ; 2D ≧5 mil | 1D ≧3 mil ; 2D ≧7 mil |
| Typical Depth Of Field / DOF | Code39(3mil):40~140mm QR (5mil) : 45 ~105mm Code39(5mil):35 ~210 mm EAN-13(13mil):30~320mm |
Code39(3mil) : 45 ~150 mm Code39(5mil) : 30 ~255 mm EAN-13 (13 mil) : 30 ~500m m |
