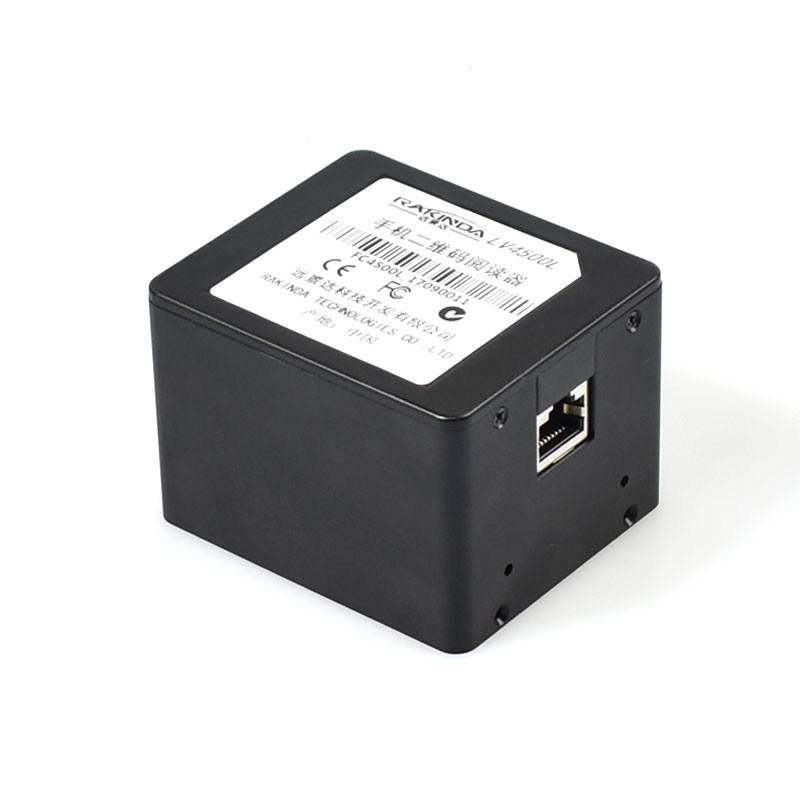

Long Range Barcode Scanner Car Parking System Fixed Outdoor QR Code Reader

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE ROHS FCC
Model Number: RD4500L
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 200PCS/Week
Dimensions:: 82 Mm(L) X 72mm (W) X 52mm(H) Weight:: 300g
Power Consumption:: 1.75W(max) Light Source:: White LED
Resolution:: 10mil Image Sensor:: 752*480 CMOS
Interface:: RS232/USB Scan Speed:: Up To 300 Scans/sec
High Light:

desktop barcode reader

,

handheld uhf rfid reader

Long Range Barcode Scanner Car Parking System Fixed Outdoor QR Code Reader

Products Features:
1. Snappy On-screen Barcode Capture
Armed with Newland’s fifth-generation of UIMG technology, the scanner excels at reading on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.

2. Durable Metal Housing
The scanner uses a durable metal housing, making it ideal for self-service applications.

3. Outstanding Power Efficiency
The advanced NLDC technology incorporated in the scanner helps reduce the power consumption and prolong the service life of the device.

4. IR Trigger
The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented. markedly increasing throughput and productivity.

5. High-capacity Barcode Reading Capability
Equipped with a sizable scan window, the scanner has the ability to scan barcodes containing large amounts of data.



Application Scenarios:

Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers.



Product Specification:

Product name Fixed Mount 2D Barcode Scanner
Item number RD4500L
Interface RS232/ USB
Image Sensor 752 x 480CMOS
Symbologies

2D: PDF417, Data Matrix, QR Code

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey

Precision 10 mil
Light Source White LED
Scan Window 38.3mm*60.4mm
Depth of Field* 40mm-430mm
Print Contrast Signal ≥ 30%
Illumination 0 ~ 100,000 LUX
Power Consumption 1.75W (max)
Power Adaptor Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz
Weight 300g
Dimensions 71 mm(L) X 61mm (W) X 51mm(H)
Notification Beep
Operating Temperature -10 ℃ to + 50 ℃
Storage Temperature -20 ℃ to + 60 ℃
Humidity 5% - 95% ( non-condensing )
Certification FCC Part15 Class B, CE EMC Class B
