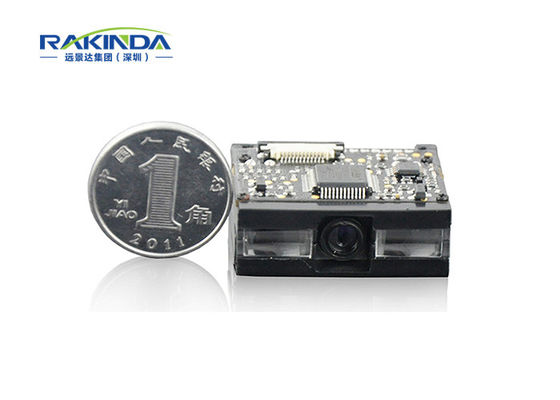

Handheld 1D Barcode Scanner Module Engine LV1000 CCD Reading Mode For PDA

Handheld 1D Barcode Scanner Module Engine LV1000 CCD Reading Mode For PDA

    • Handheld 1D Barcode Scanner Module Engine LV1000 CCD Reading Mode For PDA
    • Handheld 1D Barcode Scanner Module Engine LV1000 CCD Reading Mode For PDA
    • Handheld 1D Barcode Scanner Module Engine LV1000 CCD Reading Mode For PDA
    • Handheld 1D Barcode Scanner Module Engine LV1000 CCD Reading Mode For PDA
  • Handheld 1D Barcode Scanner Module Engine LV1000 CCD Reading Mode For PDA

    Product Details:

    Place of Origin: China
    Brand Name: RAKINDA
    Certification: FCC,CE,Rosh
    Model Number: LV1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: 14*11*8.5cm
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 10000 per month
    Contact Now
    Detailed Product Description
    Name: OEM Scan Engine Symbologies: 1D
    Reading Mode: CCD Interface: TTL232
    Category: Full Feature, Customizable Scan Rate: Up To 300 Scans/sec
    Weight: 6g Size: 28.2*23.4*11.2mm

    LV1000 Bar code scanner engine is widely embedded in various devices, such as PDA, hand held bar code scanner, locker, tablet and so on. These devices can be used in many area, such as scanning the 1D code in the label on the patient’s hand and label on the vial, and so on. As before, when the nurse want to know this patient use which kind of vial, they need to pull the cable of vial that will cause patient hand pain.



    Based on this situation, Rakinda Technology Co, ltd produced one kind of bar code scanner engine with small size, Designed for OEM application, easily adopted into all kinds of equipments where need the 1D barcode scanning application, such as tablet, PDA, mobile phone and hand held barcode scanner. Designed for OEM applications, this high performance CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, PDA's and many more.



    LV1000_datasheet_en.pdf

    Performance
    Interface TTL232/USB-KBW
    Image Sensor CCD
    Resolution 2500
    Scan Rate up to 300 scans/sec
    Decode Rate 200 decodes/sec (default)
    Symbologies Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, etc.
    Precision ≥ 5mil (Condition: PCS=0.9, testing code: Code 39)
    Light Source LED(622 nm - 628 nm)
    Light Intensity 265 LUX (130 mm )
    Depth of Scan Field 40mm-430mm
    Print Contrast Signal ≥ 30%
    Sensitivity** Pitch ±65°@ 0°Roll and 0° Skew
      Roll ±30°@ 0°Pitch and 0° Skew
      Skew ±60°@ 0°Roll and 0° Pitch
    Illumination 0 ~ 100,000 LUX
    Mechanical/ Electrical
    Power Consumption 0.33W
    Voltage DC 3.3 V
    Current Working 150mA(Max)
      Idle 45mA
      Sleep 1 mA
    Weight 6g
    Environment
    Operate Temperature -20℃ - +60℃
    Storage Temperature -40℃ - +85℃
    Humidity 5% - 95% ( non-condensing )
    Certificates
    FCC Part15 Class B, CE EMC Class B
    Accessories
    Evaluation Kit The Evaluation Kit for EM1300, with trigger, beep functions and USB, RS232 interfaces.
    Flex Cable RS232 Cable This cable connect to the RS232 port of EVK1300.
    With a standard female RS232 port to connect to standard male RS232 port.
    With a power port to accept power adapter supply.
    USB Cable This cable connects to the USB Slave port of LV1000 with a USB-B male port. With a standard USB Slave port to connect to standard USB Host port.
    Power Adapter The power adapter for EVK1300 by RS232 Cable.
    Output: DC5V, 2A; Input: AC100~240V, 50~60HZ
    **Test Condition:
    Code39: 3 Bytes ; Resolution = 10mil; W:N = 3:1 ; PCS = 0.8 ;
    Barcode Height = 11mm; Distance = 120mm; T=23°C; Illumination= 200 LUX

    Handheld 1D Barcode Scanner Module Engine LV1000 CCD Reading Mode For PDA

    Shenzhen RAKINDA Technology Co., Ltd. is specialized in the development of smart card hardware and software systems, production, sales and operations in one of the national high-tech enterprises. Products are widely used in city card, park area, retail businesses, parking fees, government platforms and other consumer areas. With years of focus on management, innovation and development, the company in the industry.



    Q: How long is your warranty time:
    A: 1 Year.
    Q: Where can we download the user manual of the scanners?
    A: We will send by email after you get samples.
    Q: What's the lead time?
    A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
    Q: Can you provide OEM service?
    A: Yes. We need further discuss about details.
    Q: How do you ship the scanners usually?
    A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
