| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE FCC ROHS |
| Model Number: | LV4200-PT QR Code Scanner Module |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiation |
| Packaging Details: | package in carton; |
| Delivery Time: | 3-10 working days |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 1000 piece for a week |
| Name: | Auto Code Scanner | Image Sensor: | 752×480 CMOS |
|---|---|---|---|
| MOQ: | 1 Piece | Delivery Time: | 3-10 Working Days |
| Usage: | Turnstile | Module: | LV4200-PT QR Code Scanner Module |
| High Light: | 2d barcode module,barcode engine |
||
Turnstile is important for metro for it controls passengers flow and charges transport fee in time. QR Code payment is booming. Now metro turnstile also introduce qr code payment to the turnstiles. You may think it will cause high cost and influence the operation of Metro station to replace the traditional turnstile with new qr code payment function turnstile. The answer is No.
Beijing Metro, Guangzhou Metro and Shenzhen Metro has been using turnstile with qr code scanner. Now Shanghai Metro is upgrading their existing turnstiles with qr code scanner.
The designers have partially upgraded the turnstile to add the qr code scanner module inside. It takes a comparatively short time to finish and cost is low. All this work can be done in late evening.

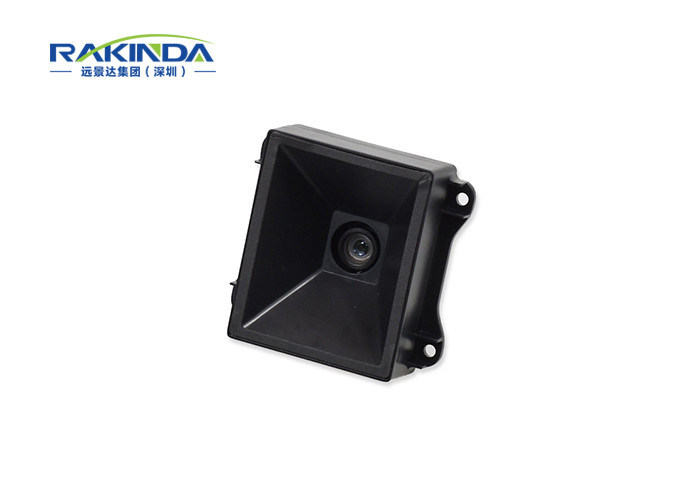

Shanghai Metro uses Rakinda LV4200PT 2D qr code scanner module. It can scan the code from phone screen code fast and users have good experience. Bluetooth technology also has been used. In this way, when the network is not good, the qr code can be shown immediately the same when touching the App on screen. People needn’t worry about the network condition in the Metro station.
More and more people will enjoy the convenience brought by mobile qr code payment.
LV4200_Datasheet_en.pdf
| Performance | Image Sensor | 752×480 CMOS | |
| Light Source | White LED | ||
| Symbologies | 2D | PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, | |
| 050, 080, 100, 140) | |||
| 1D | Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, | ||
| UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, | |||
| Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, | |||
| Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, | |||
| RSS-Expand) | |||
| Resolution | ≥5mil | ||
| Typical Depth of Field | EAN-13 | 10mm-55mm (13mil) | |
| PDF 417 | 15mm-35mm (6.67mil) | ||
| Data Matrix 15mm-40mm (10mil) | |||
| QR Code | 10mm-50mm (15mil) | ||
| Symbol Contrast | ≥30% reflectance difference | ||
| Scan Angle** | Roll: 360°, Pitch: ±40°, Skew: ±40° | ||
| Field of View | Horizontal 80°, Vertical 56° | ||
| Mechanical/ | Interface | TTL-232 | |
| Electrical | |||
| Operating Voltage | 3.0~5.5VDC | ||
| Current@5VDC | Operating | 160mA | |
| Sleep | 12mA | ||
| Dimensions | 65.1(D)×61.1(W)×43.6(H)mm | ||
| Weight | 41.5g | ||
| EnvironmentaL Operating Temperature | -20℃~+60℃ (-4°F~140°F) | ||
| Storage Temperature | -40℃~+80℃(-40°F~176°F) | ||
| Humidity | 5%~95% (non-condensing) | ||
| Ambient Light | 0~100000lux (natural light) | ||
| Accessories | USB Cable | Used to connect the LV 4200 to a host device. | |
Rakinda has been focused on barcode scanner for 18 years. Please contact us if you are handling qr code scanner projects.
Application:
FAQ
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: What is your payment method?
A3: We accept online credit card, TT, Paypal, Western Union.
Q4: Can I visit your factory:
A4: Yes, you are warmly welcome.
Q5: How long is your warranty time:
A5: 1 Year.
Q6: Where can we download the user manual of the scanners?
A6: We will send by email after you get samples.
Q7: What's the lead time?
A7: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q8: Can you provide OEM service?
A8: Yes. We need further discuss about details.
