Shenzhen Rakinda Technology Development Co., Ltd.
The leader of the barcode scanner module in the world.
|Place of Origin:||China|
|Certification:||CE, FCC, Rohs|
|Minimum Order Quantity:||1 pc|
|Packaging Details:||carton package|
|Delivery Time:||5-8 Working days|
|Payment Terms:||Western Union, T/T, paypal|
|Supply Ability:||10000 pcs per month|
|Model:||RD 4500I Barcode Scanner||Interface:||RS232|
|Color:||Black||Scan Speed:||300 Scans Per Sec|
|Dimension:||71mm 61mm 50mm||Operating Temperature:||-10 To 50 Centi Degrees|
RD4500I delivers effortless, snappy and accurate reading of barcodes on various mobile phone LCD screens with different contrast actions, colours and reflectances.

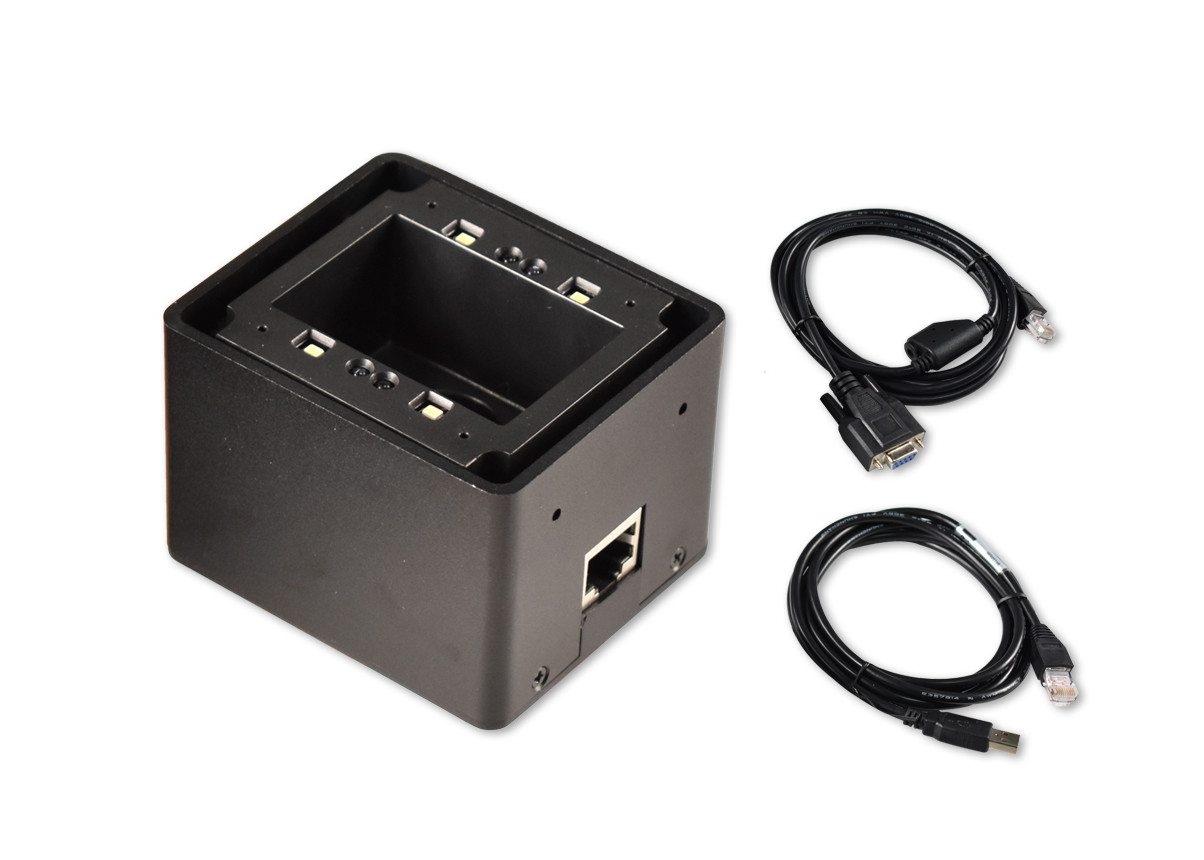

RD4500I 2D scanner is fixed mount type embedded barcode scanner module. It has USB or RS232 output cable. It is easy to operate and integrate.The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented.
We will provide you user guide to set the scanner.
Suggest application areas: kiosk, vending machine, turnstile, certificate market, access control system, queue machine, lottery machine, express delivery machine, etc.
1. Fixed mount type USB or Serial cable output: easy to integrate;
2. Quick scanning screen code
Scanning 1D and 2D barcodes off cell phone screen in a time less than 0.4 sec.
3. Same good at scanning paper and cards code
Swift reading 1D and 2D barcodes on cards and paper
4. Fit for demanding environment
It is a common case that phone screen is covered with various protective film. Do not worry with RD4500I scanner. RD4500I can still scan the code swiftly. It typically takes less than 0.4 sec to recognize the code.
5. Simple to operate
When you need to set the scanner, you just need to scan the setting code in the user guide. It is one step operation and easy to do.
6. A bar code scanner has a housing including a surface having a transparent scanning window. The housing contains optical components including a spinner and pattern mirrors arranged to produce sets of densely packed scan lines. The housing further contains a single output mirror which can be arranged in a first position in which the scan lines are optimized for horizontal scanning and a second position in which the scan lines are optimized for vertical scanning.
|Type||Embedded type fixed mount|
|Code to scan:||2D: pdf417, qr code, data matrix
1D: EAN-13, EAN-8, UPC-A, UPC-E,ISSN, ISBN, Codabar, code 128, code 93, itf-6, itf-16, interleaved 2 of 5, industrial 2 of 5, standard 2 of 5, matrix 2 of 5, gs1 databard, code 39, code 11, msi-plessey, plessey
|Size||71mm 61mm 50mm|
|Scan Speed||300 scans per sec|
|Ambient Light||0-100,000 LUX|
|Power Consumption||1.75 W max|
|Light Source||White LED|
With over 18 years of experience in barcode scan technology industry area, Rakinda has achieved some important success by enormous effort. The scanner products are certified by CE, FCC and RoHS etc.
Rakinda sticks to "born to challenge" to deliver best products and services to our customers. Rakinda does the best to be your reliable business partner.
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: What is your payment method?
A3: We accept online credit card, TT, Paypal, Western Union.
Q4: Can I visit your factory:
A4: Yes, you are warmly welcome.
Q5: How long is your warranty time:
A5: 1 Year.
Q6: Where can we download the user manual of the scanners?
A6: We will send by email after you get samples.
Q7: What's the lead time?
A7: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q8: Can you provide OEM service?
A8: Yes. We need further discuss about details.
Image Sensor: 640×480 CMOS
Illumination: Red LED 650±10 nm
Symbologies: PDF 417, Data Matrix（ECC200,ECC000,050,080,100,140）, QR Code; Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5,
Reading Precision: >=5 mil
