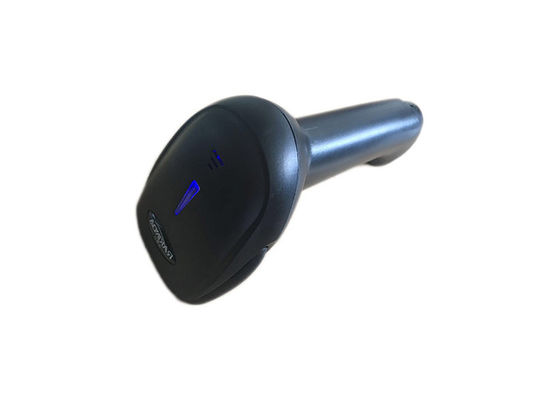

USB Long Range Barcode Scanner Handheld Read All Mainstream Ergonomic Design

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE, FCC, ROHS
Model Number: RK2621
Minimum Order Quantity: 1pc
Packaging Details: carton package
Delivery Time: 1-7 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000pcs per month
Dimension: L150mm * W70mm * H95mm Scan Type: Linear CCD
Depth Of Field: 10mm-600mm Resolution: ≥3mil/0.1mm(PCS90%、 Code 39)
Decoding Speed: 300times/s Name: Handheld Bluetooth 2D Barcode Scanner
High Light:

desktop barcode reader

,

portable barcode scanner

RK2621 Handheld Bluetooth/Wireless 1D Barcode Scanner
Characteristic
◆ Ergonomic design, comfortable using.
◆ Read all mainstream 1D barcodes in the market easily. (3mil)
◆ Mode: Bluetooth(HID,SPP,BLE), wired, wireless 2.4G, connected with PC, mobile phone
easily.
◆ Dual mode: wired, wireless, Ultra-low power consumption, continuous working time 20h.
◆ Transmission distance 150m, intelligent automatic connection when it’s beyond range,
not manual setting.
◆ Widely used in supermarket, warehouse, mobile payment, chain stores.

RK2621BG 1D Wireless&Bluetooth-Specification.pdf

USB Long Range Barcode Scanner Handheld Read All Mainstream Ergonomic Design 0

Specification:
Weight: ≈160g( without cable)
Dimension: L150mm * W70mm * H95mm
Interface Type: USB
Communication way: USB, Wireless Bluetooth & 2.4G
Power supply: DC 5V@100mA(Work)
Scan Type: Linear CCD
Light Source: Visible red light, 625±10nm
CPU: 32-bit
Resolution: 2500
Resolution: ≥3mil/0.1mm(PCS90%, Code 39)
Decoding speed: 300times/s
Depth of field: 10mm-600mm
Scan Mode: Manual, Continuous, Auto sense
Print Contrast Signal: ≥20%
Ambient Light: Indoor natural light
Scan angle: Roll±30°, Pitch±60°, Ske±60°( PCS90%, Code 39,
10mil/0.25mm)
Wireless communication mode Synchronous , asynchronous, storage mode
Wireless transmission distance: Bluetooth 50meters
Storage capacity: 2M( over 100000 barcode)
Battery capacity: 1600mAh
Battery charging time: About 6.5 hours
Continuous working time: ≥20 hours
Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code
128, GS1-128, ISBT 128, Code 39, Code 93, Code
11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5,
Standard 2 of 5( IATA) , Codabar( NW-7) , Plessey,
MSI Plessey, RSS, China Post, etc.
Operating temperature: 0℃ to 50℃
Storage temperature: -20℃ to 60℃
Humidity: 5% to 95%( non-condensing)
Drop Height: 1.5m
Transport vibration Test: 10H@125RPM
