Wiegand RS232 QR Code Scanner Mifare IC Card Access Control Reader

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC Rohs
Model Number: RD003
Minimum Order Quantity: 1pc
Packaging Details: carton package
Delivery Time: 1-5 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 pcs per month
Material: 6063GB Aluminum Profile Aluminum CNC Interface: RS232
Wiegand Output: Wiegand 26/34 Power Supply: 9~18V DC
Barcode/Card: 1D/2D Barcode, Mifare Card Dimension: 86*86*22mm
High Light:

Mifare IC Card Access Control Reader


Wiegand QR Code Scanner


RS232 QR Code Scanner

Wiegand RS232 QR Code Scanner Mifare IC Card Access Control Reader


Wiegand RS232 QR Code Scanner Mifare IC Card Access Control Reader

RD003 is a QR code and Mifare card reader for access control. It can be connected to external access controller. The communication interface is RS232, and wiegand output can be set up as 26 or 34bit. Wifi and LORA interface can be added.


RD003 QR Access Control Device Features:

1. Support both barcode/QR Code reading and, IC/Mifare card reading.

2. It can read both printed or mobile screen barcodes.

3. Free sdk and demo software.

4. RS232, Wiegand 26/34

5. Wifi, LORA interface are extensible


QR Code Access Control Devices Parameters:

Image Sensor


Light Source

White LED


2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code

1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc.

Reading Distance


Scan Angle

360° Full Angle

Power Input


Working Current

< 600mA

Can read ISO14443A

Reading ISO14443A cards or Mifare sector content, can also read/write CPU card file according to request

Barcode or 2D code input

Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules

Communication Interface


Wiegand output

Wiegand 26/34 output

Installation size

86mm * 86mm * 22mm (L*W*H)

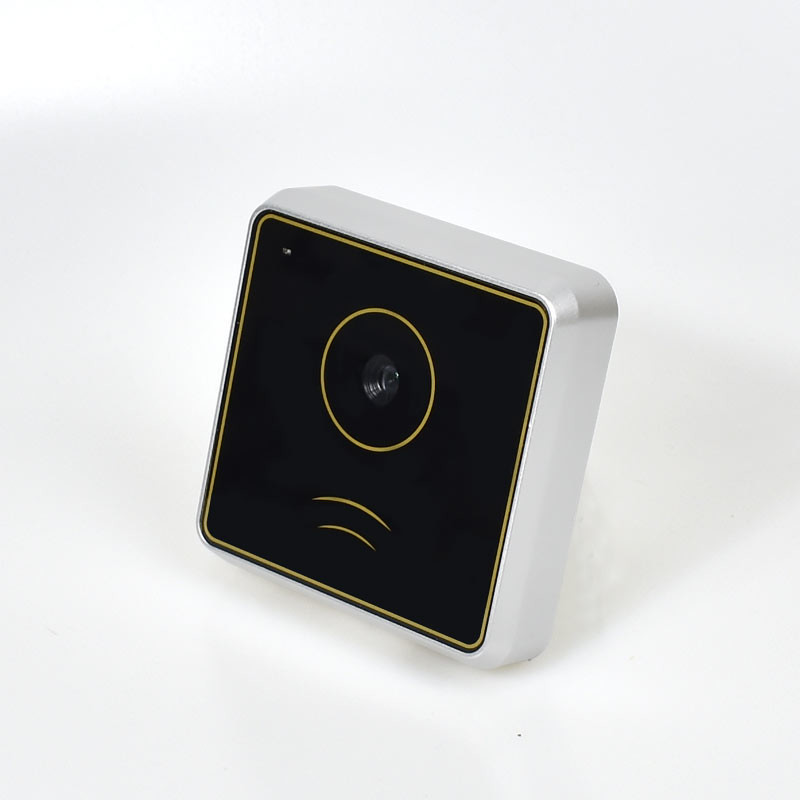

Wiegand RS232 QR Code Scanner Mifare IC Card Access Control Reader 0

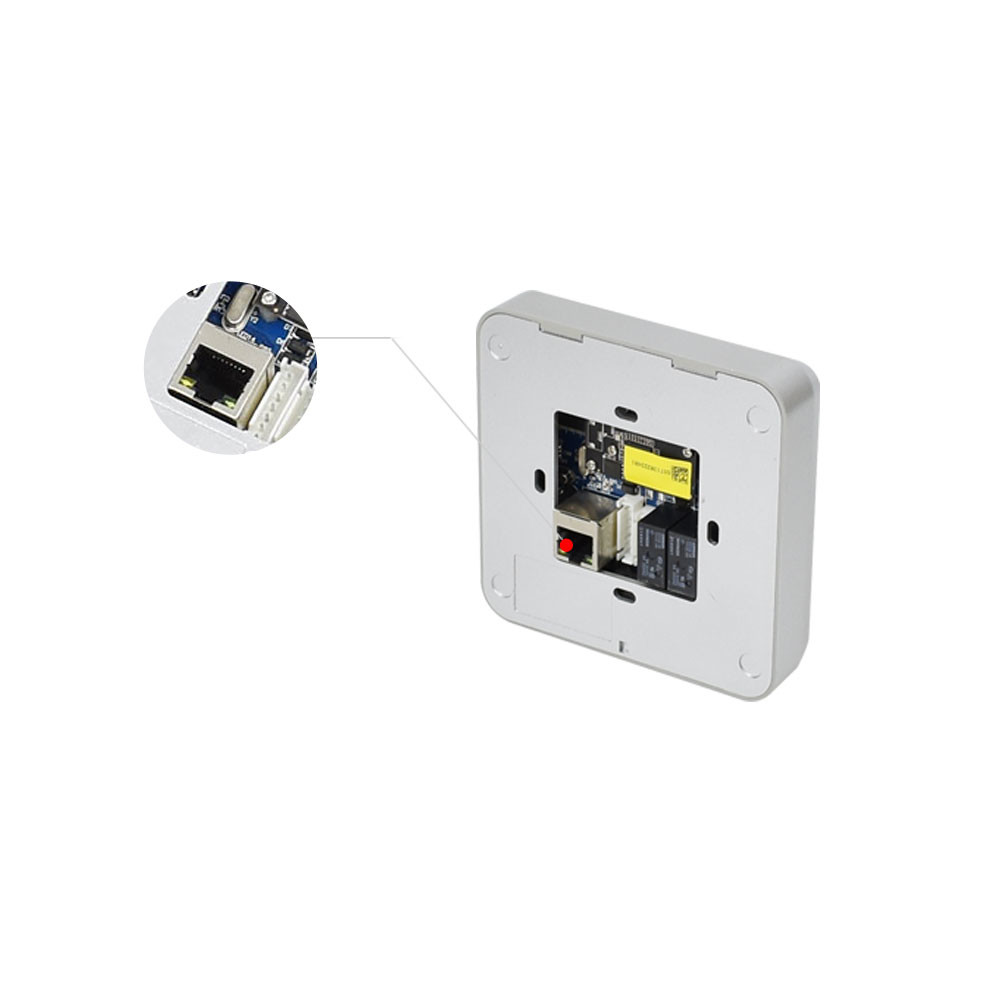

Wiegand RS232 QR Code Scanner Mifare IC Card Access Control Reader 1
