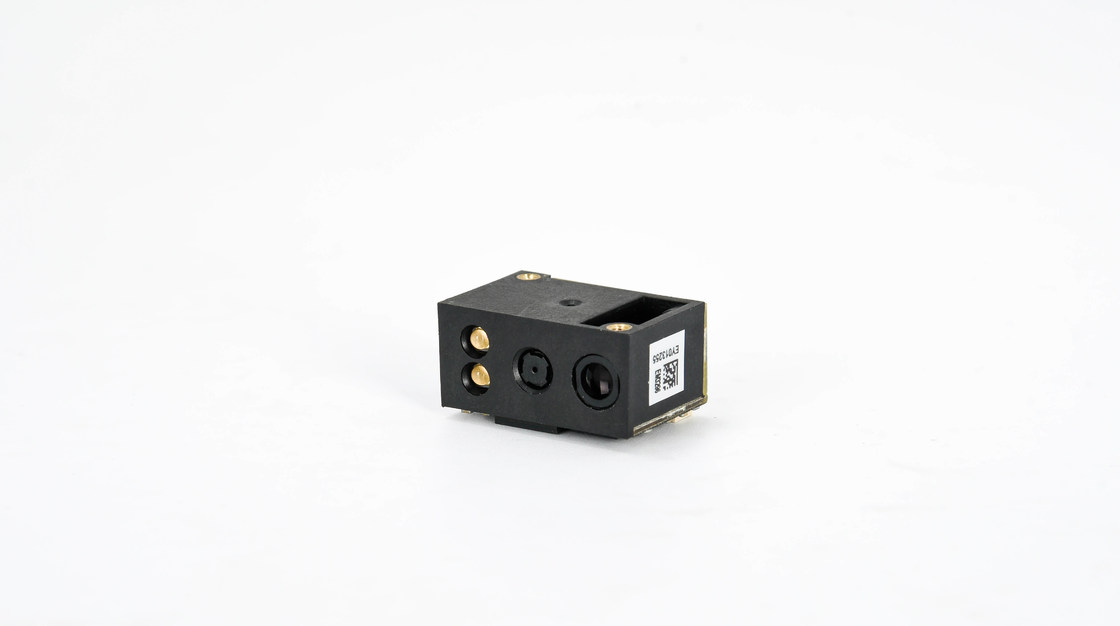

Lightweight 2D Barcode Scanner Module , Barcode Scan Engine LV3296 TTL 232 Communication

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE, FCC, Rohs
Model Number: LV3296
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: carton package
Delivery Time: 5-8 Working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 10000 pcs per month
Model: LV3296 2D Bar Code Scan Engine Sensor: CMOS
Warranty: One Year Symbologies: 2D And 1D Codes
Communication: TTL 232 New Arrival: Yes
High Light:

2d barcode module


barcode scanning solutions

Lightweight 2D Barcode Scanner Module , Barcode Scan Engine LV3296 TTL 232 Communication


When you choose an embedded type 2D bar code scan engine, you expect a low power consumption, stable performance, low faulty rate. LV3296 will be your good choice model.


SE955 is a typical 1D bar code scanner module. It has been widely used in large quantity due to its revolutionarily small size and good performance. Now people need to use 2D code more and more, and 1D scanner can no longer meet people's requirement. It is highly expected to upgrade this SE955 1D scanner module to 2D level. With same size and fix holes, LV3296 scanner can upgrade SE955 seamlessly. Clients need not to change their mold and this can save a lot cost for customers.


LV3296 Datasheet.pdf

Selling Points of LV3296 scanner:

1. Advanced Technology

LV3296 Scanner Module can scan poor printed codes easily; especially it can better scan small size 1D and 2D codes.


2. Mini Size and Light Weight:

LV3296 size is 21.2 W 14D 11.1H mm and its weight is only 4 grams. Owing to its Ultra-compact, light and integration-friendly, LV3296 scanner module is fit for miniaturization needs of OEM projects.


3. Multi Interfaces to be used
The LV3296 scanner module supports both USB and TTL-232 interfaces to meet diverse customer needs. It is the same model version for USB and TTL232 interfaces.


4. All-In-One Design
Well integration of image sensor and decoder board makes the LV3296 barcode scanner module small, lightweight and easy to fit into even the most space-constrained devices.


Manufacturer Rakinda is established in 2000. Since then, we are devoted to the barcode scanning industry and we have been providing products and services for many fields. We provide a diverse product line. Pls kindly contact us for more details. Rakinda sticks to "born to challenge" to deliver best products and services to our customers. Rakinda does the best to be your reliable business partner. With over 17 years of experience in barcode scan technology industry area, Rakinda has achieved some important success by enormous effort. The scanner products are certified by CE, FCC and RoHS etc.


LV3296 Scanner Parameters:

Image Sensor 640*480 CMOS
Symbologies 2D: pdf417, qr code, data matrix
1D: EAN-13, EAN-8, UPC-A, UPC-E,ISSN, ISBN, Codabar, code 128, code 93, itf-6, itf-16, interleaved 2 of 5, industrial 2 of 5, standard 2 of 5, matrix 2 of 5, gs1 databard, code 39, code 11, msi-plessey, plessey
Resolution >= 4mil
Current at 3.3V DC 141mA operating
Dimensions 21.2mm*14mm*11.1m
Weight 4g
Operating Temperature -20 to 50 centi degrees
EVK software development board
Ambient Light 0-100,000 Lux
Humidity 5%-95%


LV3296 Scanner Case Show:

Lightweight 2D Barcode Scanner Module , Barcode Scan Engine LV3296 TTL 232 Communication 0



Q1: Can I get some samples? Are they free?

A1: We support 1pc sample order. Samples should be paid.

Q2: Can I get extra cables for the scanners?

A2: Yes you can. We will provide according to your request.

Q3: How can I buy?

A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.

Q4: What is your payment method?

A4: We accept online credit card, TT, Paypal, Western Union.

Q5: Can I visit your factory:

A5: Yes, you are warmly welcome.

Q6: How long is your warranty time:

A6: 1 Year.

Q7: Where can we download the user manual of the scanners?

A7: We will send by email after you get samples.

Q8: What's the lead time?

A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.

Q9: Can you provide OEM service?

A9: Yes. We need further discuss about details.

Q10: How do you ship the scanners usually?

A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
