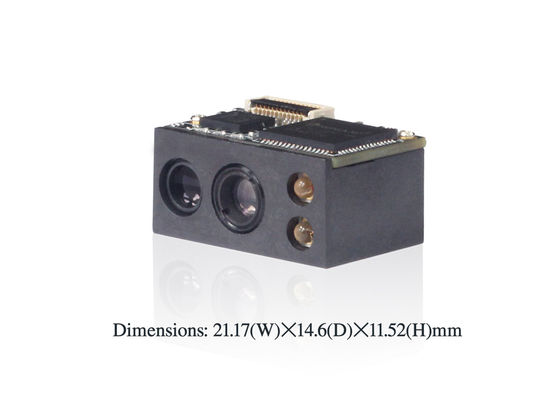

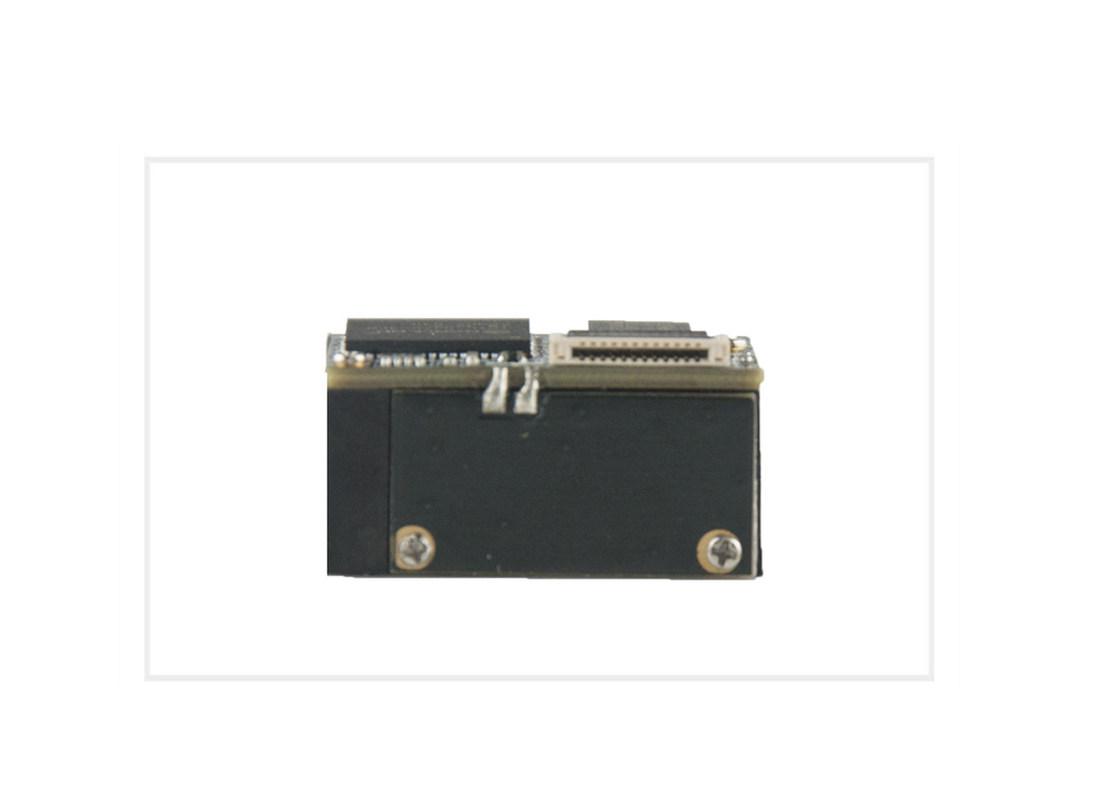

Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal

Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal

    • Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal
    • Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal
    • Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal
    • Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal
  • Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal

    Product Details:

    Place of Origin: China
    Brand Name: Rakinda
    Certification: CE, FCC, Rohs
    Model Number: LV3096

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiation
    Packaging Details: carton package
    Delivery Time: 1-3 Working days
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Model: LV3096 2D OEM Barcode Scan Engine Interface: 12pin TTL 232 Or USB (optional)
    Lead Time: 1-3 Working Days Delivery Method: By Air
    Application: Embedded Type Feature: Seamlessly Upgrading SE955

    Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal



    There is a rising demand to develop handheld bluetooth 2D barcode scanner. It requires mini size, low power consumption and stable scanning performance scanner inside. LV3096 2D scanner module is ready for you to use. It integrates image sensor and decoding board, making it small size and fit for integration into space constrained terminals.

    Together with the LV3096 scanner, we will provide customers with 12pin flex cable. If screws are needed, we will provide upon your request.

    Please kindly contact us for integration and user manual. We will send these documents by email for you!



    LV3096-Datasheet.pdf

    Concerning 2D barcode readers, maybe you are interested in the details below:

    1. What is the cost of a scanner that will read 2D barcodes? It is depended on the application. Factors include: Tethered, Cordless or portable reader,
    Density of the codes, Method of printing

    2. Can the 2D scanner read my 1D linear codes also? Yes, these imager readers will read most all linear codes as well

    3. My Current scanner will not read the barcode which may be a 2D barcode. Do I need a special scanner? Laser or linear Imager scanners will not read 2D code with a minor exception.
    2D barcodes require an area imager technology scanner for reading. Some 1D scanners may read 2D stacked codes like PDF 417. Look at pictures of the codes below to identify your code.



    Looking at the 2D barcodes below to identify your code:

    Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal

    Manufacturer Rakinda is established in 2000. Since then, we are devoted to the barcode scanning industry and we have been providing products and services for many fields. We provide a diverse product line. Pls kindly contact us for more details.



    LV3096 Scanner Datasheet:

    Image Sensor 752*480 CMOS
    Code: 2D: pdf417, qr code, data matrix
    1D: EAN-13, EAN-8, UPC-A, UPC-E,ISSN, ISBN, Codabar, code 128, code 93, itf-6, itf-16, interleaved 2 of 5, industrial 2 of 5, standard 2 of 5, matrix 2 of 5, gs1 databard, code 39, code 11, msi-plessey, plessey
    Resolution >= 5mil
    Weight 5g
    Operating Current 230mA
    Standby Current 4mA
    Power Consumption 0.76W
    EVK Available
    Operating Voltage 3.3V DC
    Humidity 5%-95%



    LV3096 Scanner Embedded in Bluetooth Scanner

    Embedded 2D OEM Barcode Scan Engine LV3096 Sleek Design Fitting into Small Terminal





    FAQ

    Q1: Can I get some samples? Are they free?

    A1: We support 1pc sample order. Samples should be paid.

    Q2: Can I get extra cables for the scanners?

    A2: Yes you can. We will provide according to your request.

    Q3: How can I buy?

    A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.

    Q4: What is your payment method?

    A4: We accept online credit card, TT, Paypal, Western Union.

    Q5: Can I visit your factory:

    A5: Yes, you are warmly welcome.

    Q6: How long is your warranty time:

    A6: 1 Year.

    Q7: Where can we download the user manual of the scanners?

    A7: We will send by email after you get samples.

    Q8: What's the lead time?

    A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.

    Q9: Can you provide OEM service?

    A9: Yes. We need further discuss about details.

    Q10: How do you ship the scanners usually?

    A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
