| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE ROHS FCC |
| Model Number: | R1 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Paper Carton package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 100pcs-1week |
| Image Sensor: | 1280 × 1024 CMOS | Max. Frame Rate: | 60 Fps |
|---|---|---|---|
| Max. Reading Speed: | 80 Codes/sec | Pixel Size: | 3.45 µm×3.45 µm |
| Gain: | 0 ~ 40 DB | Resolution: | 1D 3mil; 2D 5mil |
| Power Supply: | 12 ~ 24 VDC | ||

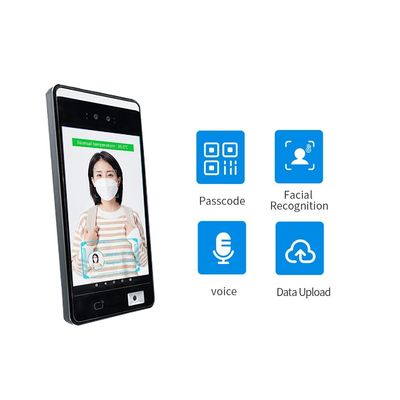

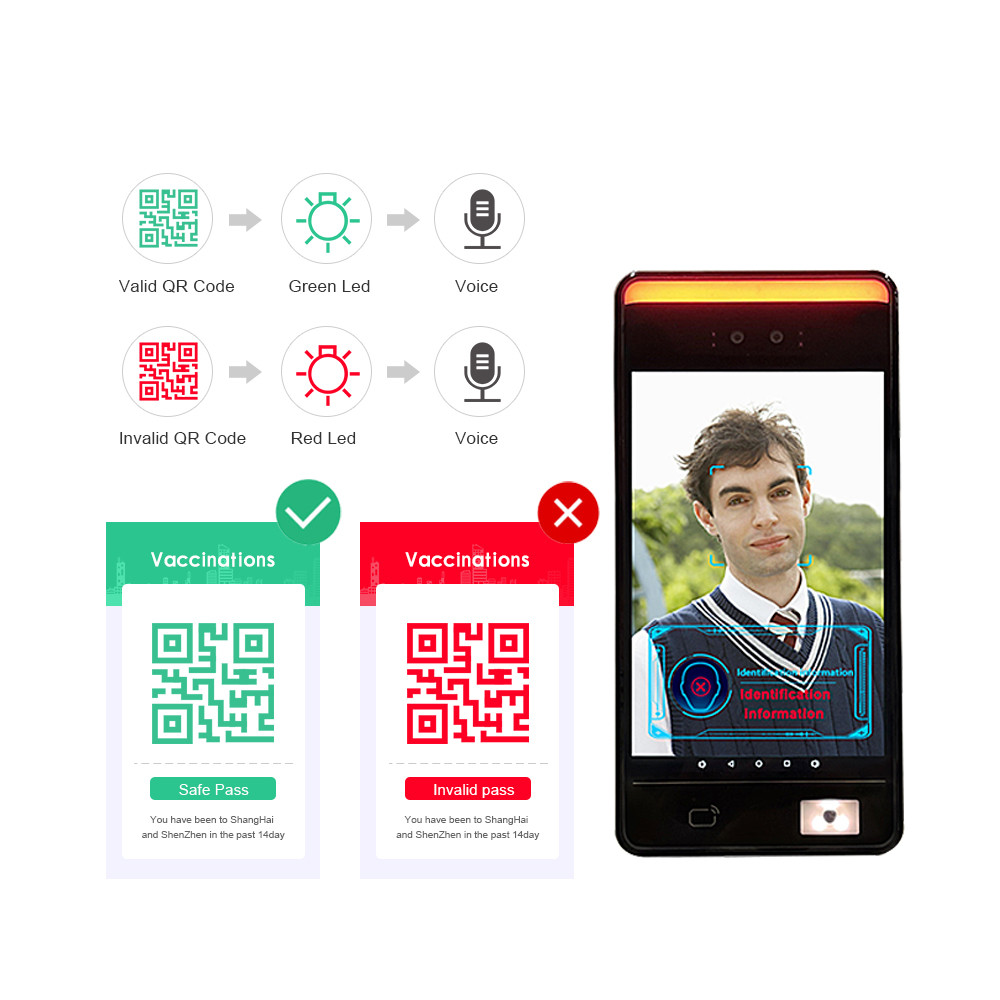

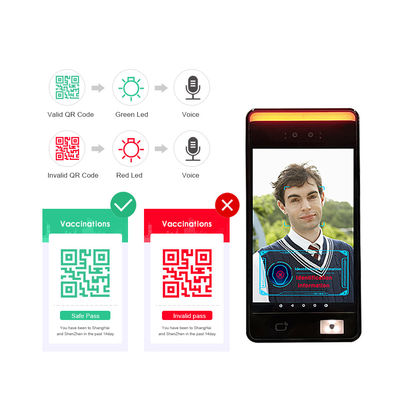

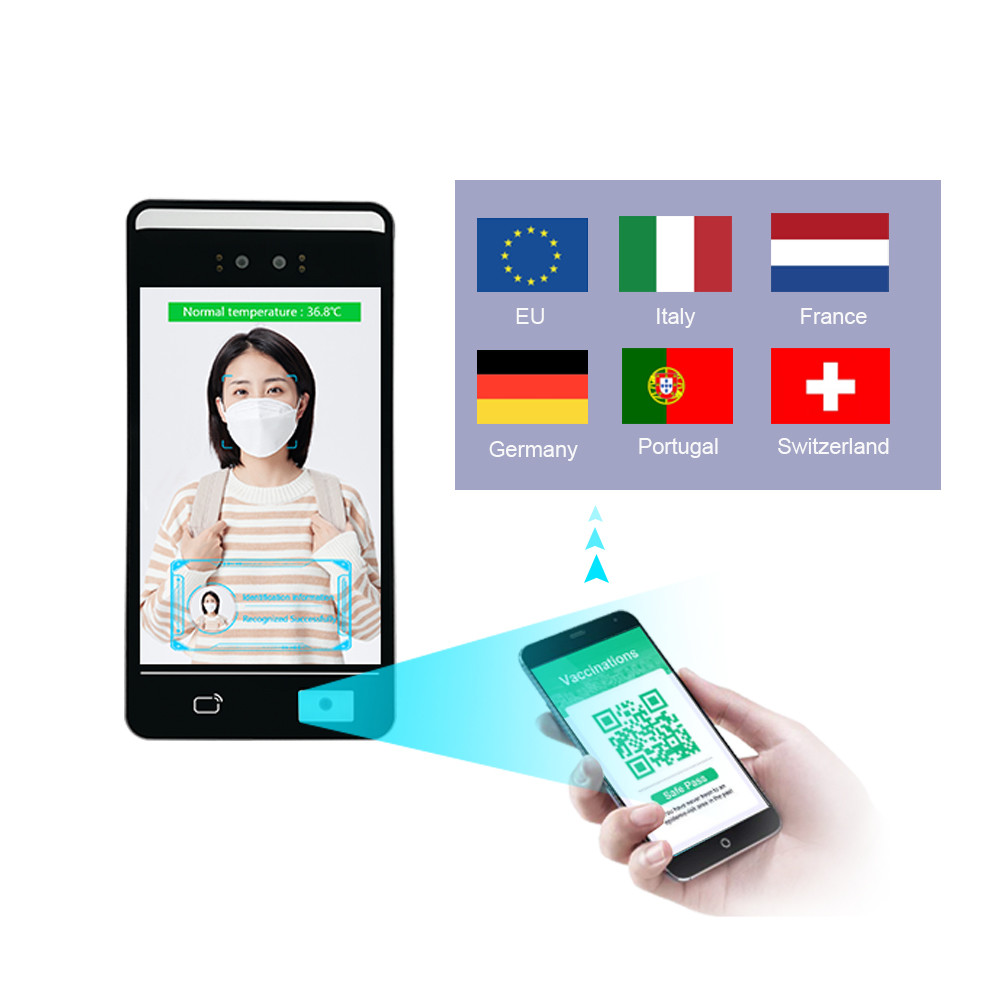

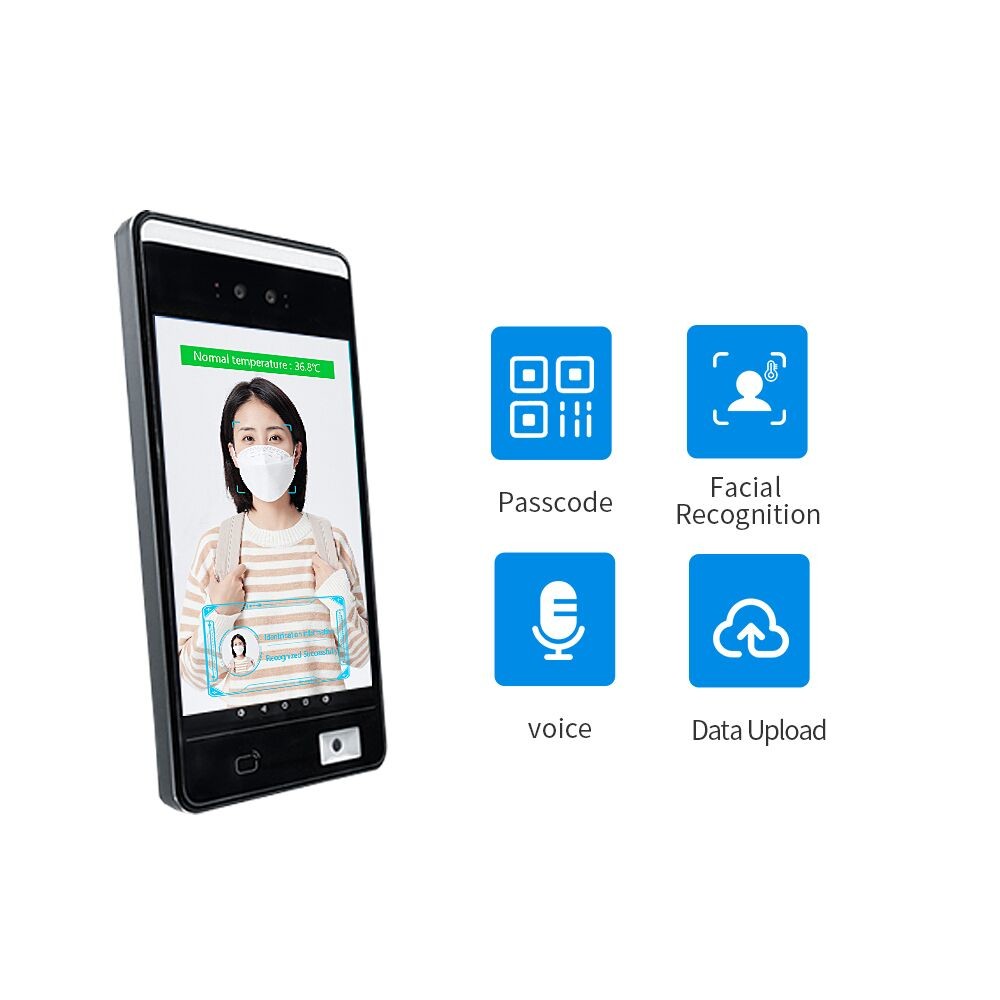

| Highlight: | Face Recognition QR Code Reader Access Control,RS485 QR Code Reader Access Control,RS485 qr access control reader |
||

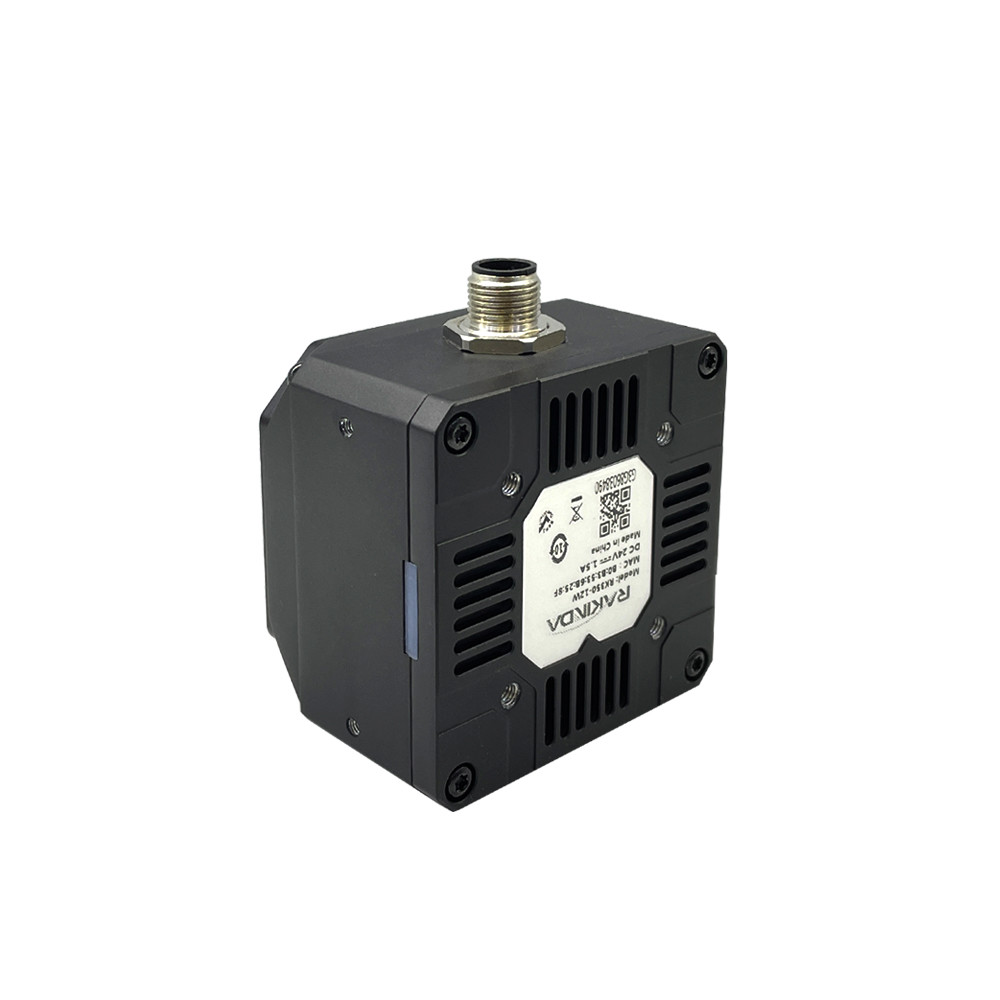

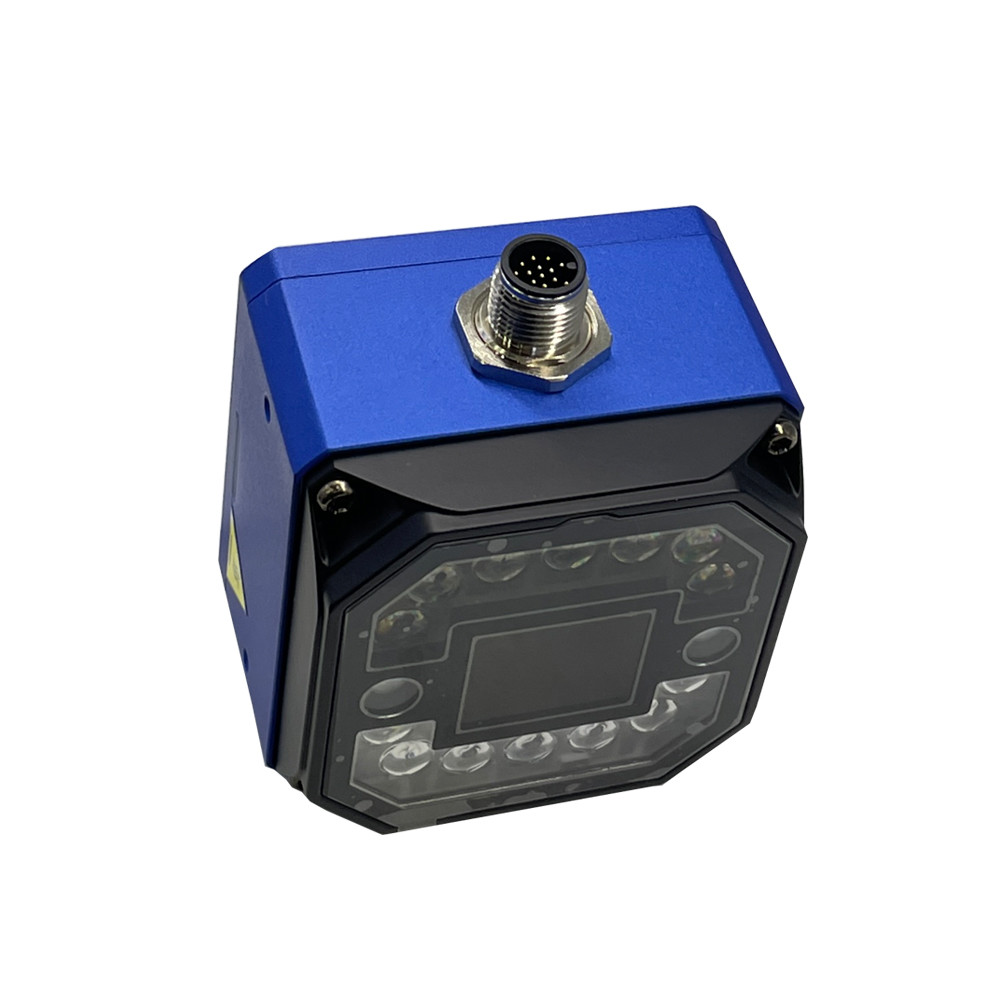

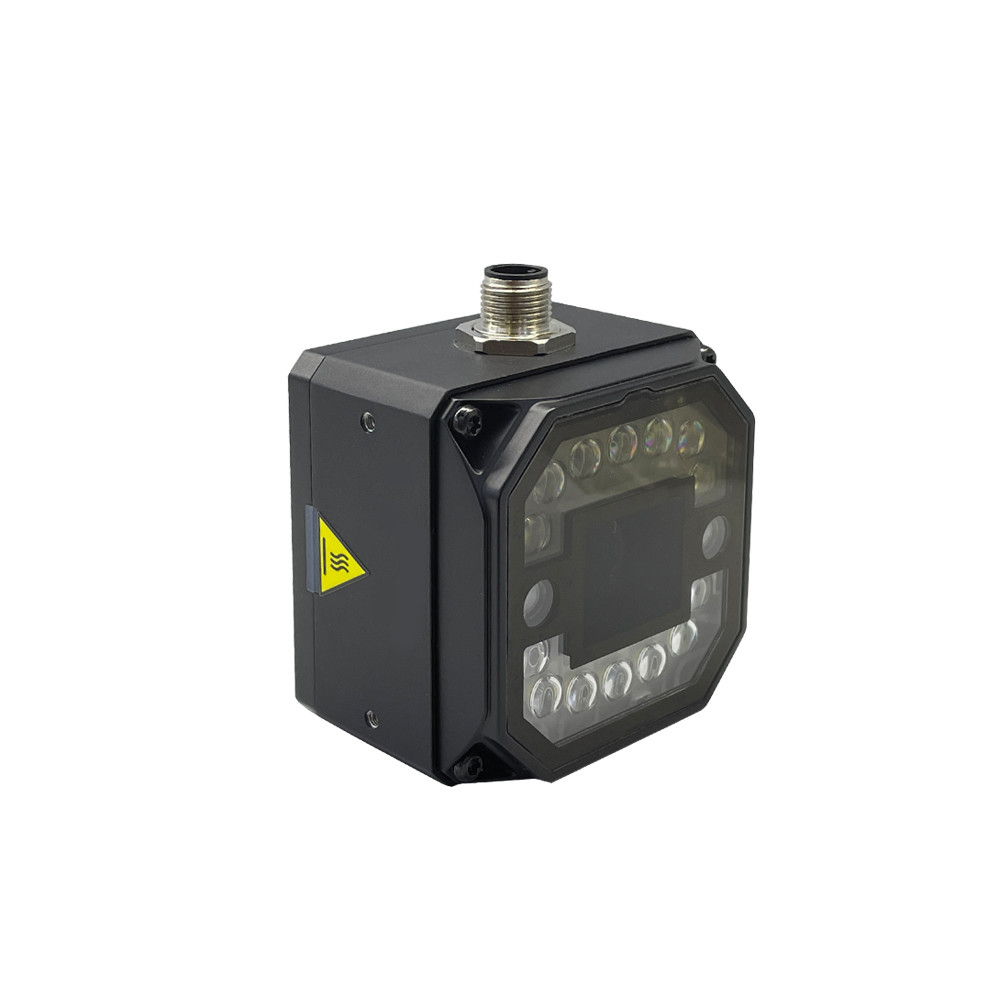

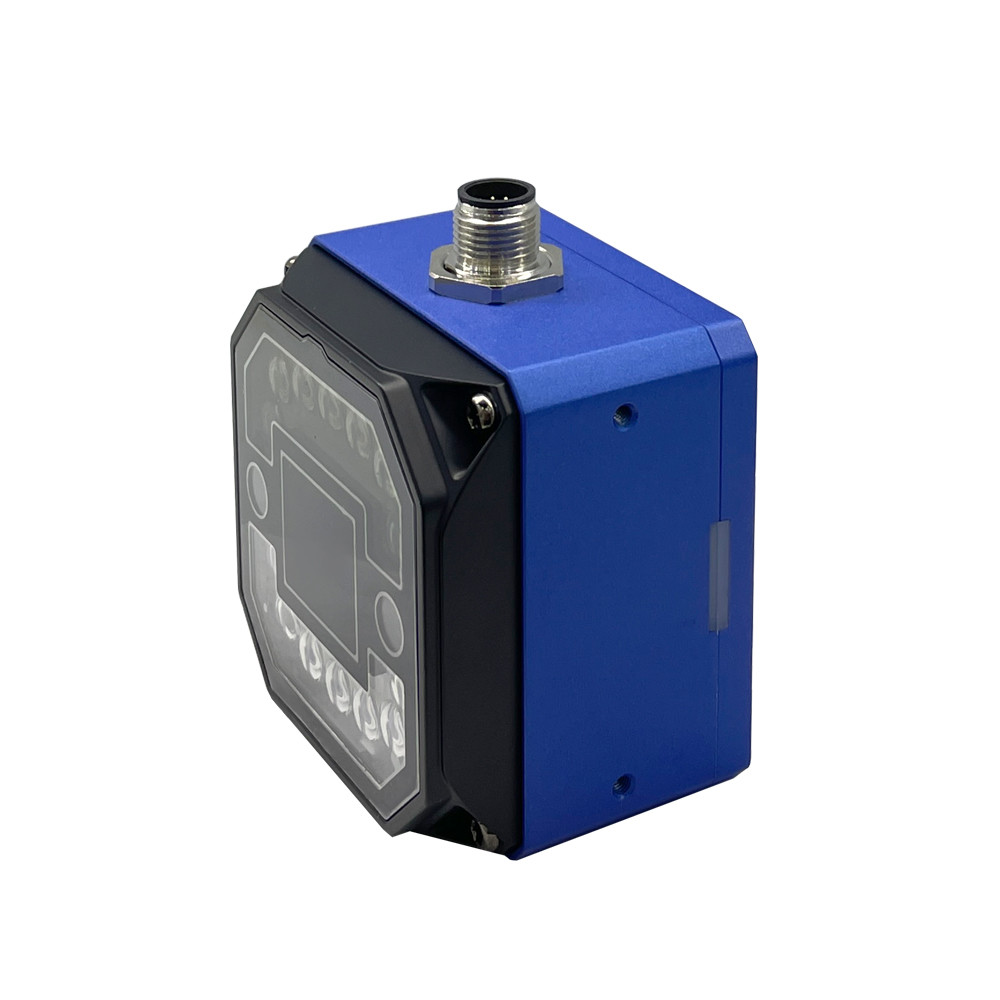

Rakinda R1 1.3M industrial barcode reader adopts 1280×1024 CMOS global shutter sensor and deep learning algorithm to accurately decode 1D & 2D barcodes. It reaches up to 60 fps frame rate and 80 codes per second reading speed for high-efficiency scanning. Available with 6mm/12mm/15mm M12 lenses, the device is fitted with complete digital I/O, RS-232 and multiple industrial Ethernet protocols. Supporting polarized lighting and featuring IP67 dust & water resistance, this compact 280g barcode scanner is widely used in electronics, automotive and express storage industries.
Parameters of Industrial Barcode Reader
| Model | R1 Series |
| Image Sensor | 1280 × 1024 CMOS |
| Performance Characteristics | |
| Decode Capabilities |
1D:Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25,Matrix 25, MSI, China Post, Code 11 and Industrial 25 2D: QR Code, Data Matrix, PDF 417 |
| Max. Frame Rate | 60 fps |
| Max. Reading Speed | 80 codes/sec |
| Sensor Type | CMOS ,global shutter 3.2 µm × 3.2 µm |
| Pixel Size | 3.45 µm×3.45 µm |
| Sensor Size | 1/2.9” |
| Exposure Time | 16 μs ~ 1 sec |
| Gain | 0 ~ 40 dB |
| Resolution | 1D 3mil; 2D 5mil |
| Communication Protocol | SmartSDK,TCP Client ,Serial, FTP ,TCP Server, Profinet, MELSEC, Ethernet/ IP, ModBus, Fins ,SLMP |
| Electrical Feature | |
| Interface | 17-pin M12 connector provides power and I/O, including non-isolated input (Lineln 0/1/2) x 3, non-isolated output (LineOut 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported. |
| Data Interface | Fast Ethernet( 100 Mbit/s) |
| Digital l/O | Including non-isolated input (Lineln 0/1/2) x 3, non-isolated output (LineOut 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported. |
| Power Supply | 12 ~ 24 VDC |
| Max. Power Consumption | 20 W@24 VDC( (light source enabled)) |
| User Environment | |
| Typical Depth of Field | 06mm: 46*38； 12mm: 24*20；15mm: 20*16 |
| Lens Interface | M12-mount ,Manual focus |
| Light Source | 6 independent control channels, totaling 14 white lights, half with polarizing lens cover |
| Light Source | Spotlight white light, available for purchase with spotlight red/blue light, wide-angle white/blue light |
| Indicator Light | Powerindicator(PWR),network indicator (LNK),status indicator(STS),result indicator (OK/NG) |
| Dimension | 65.2 mm×65.2mm×47.2mm |
| Weight | Approx. 280 g (0.6 lb.) |
| Seal | IP67 |
| Operating Temp. | 0℃~+50℃ |
| Storage Temp. | -30℃~+70℃ |
| Humidity | 20% to 95% RH,non-condensing |
| Regulatory | CE,FCC.RoHS |
