| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE FCC ROHS |
| Model Number: | RD11C |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 5-8days |
| Supply Ability: | 500pcs per week |
| Optical System: | 640*480 | Illumination Element: | Aiming: 617nm LED; Illumination 3200K White LED |
|---|---|---|---|
| Scan Mode: | Trigger Mode, Auto-sensing, Continuous Scan, Pulse Mode | Dimensions: | 28.2mm* 20.5mm * 11.8mm |
| Highlight: | 2D Raspberry Pi Qr Code Scanner,1D Raspberry Pi Qr Code Scanner,PDF417 raspberry pi qr code reader |
||

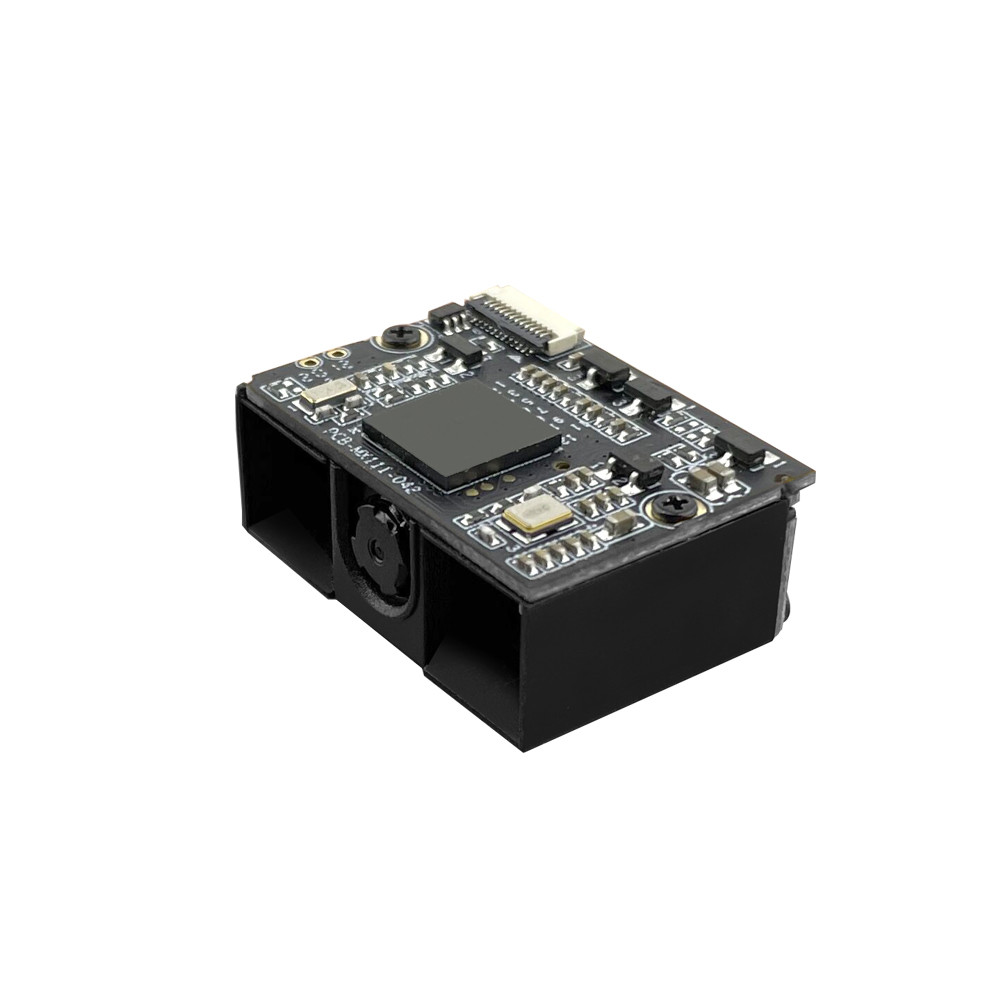

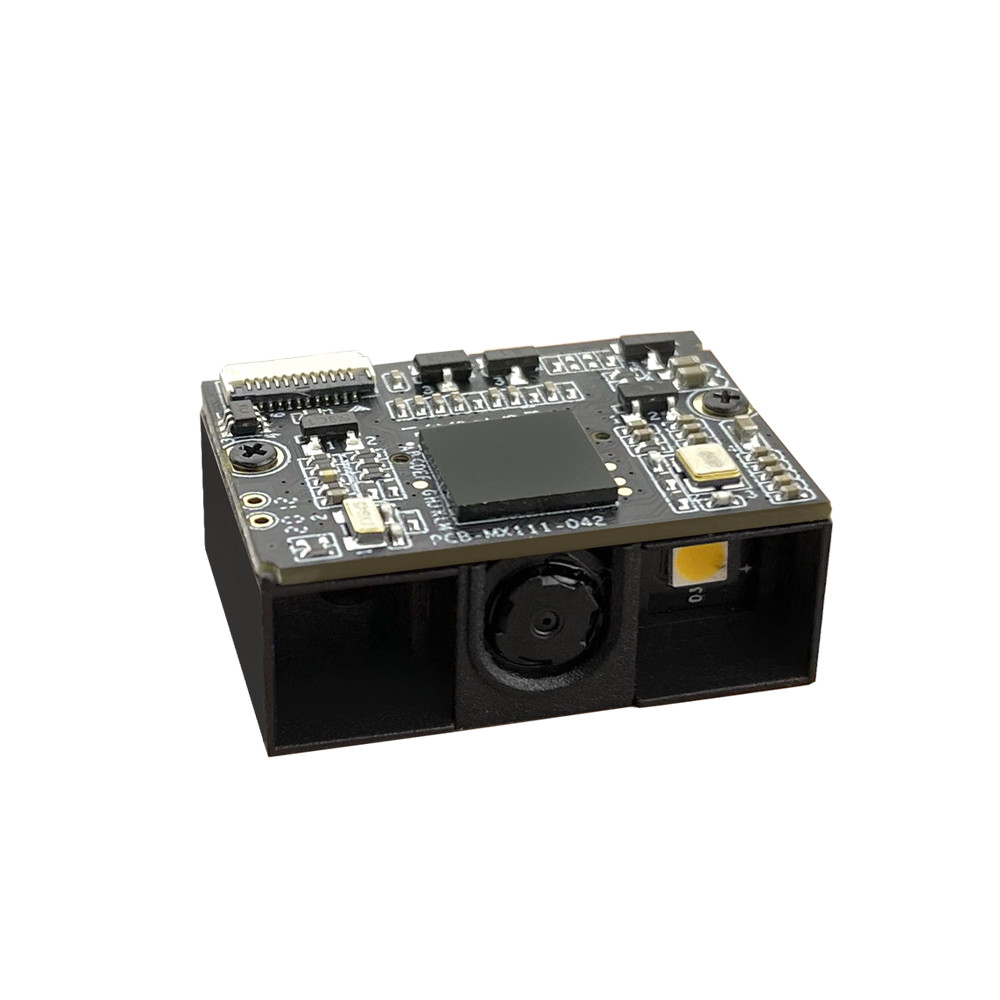

1D 2D Raspberry Pi Qr Code Scanner PDF417 Datamatrix Aztec Embed Barcode Module
1D 2D QR Raspberry PI 640*480 CMOS PDF417 Datamatrix Aztec Embed Barcode Scanner Module for POS Machine
QR Codes Scanner Features:
* High Performance & Ultra-Low Power Consumption:
The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.
* All-in-One Design:

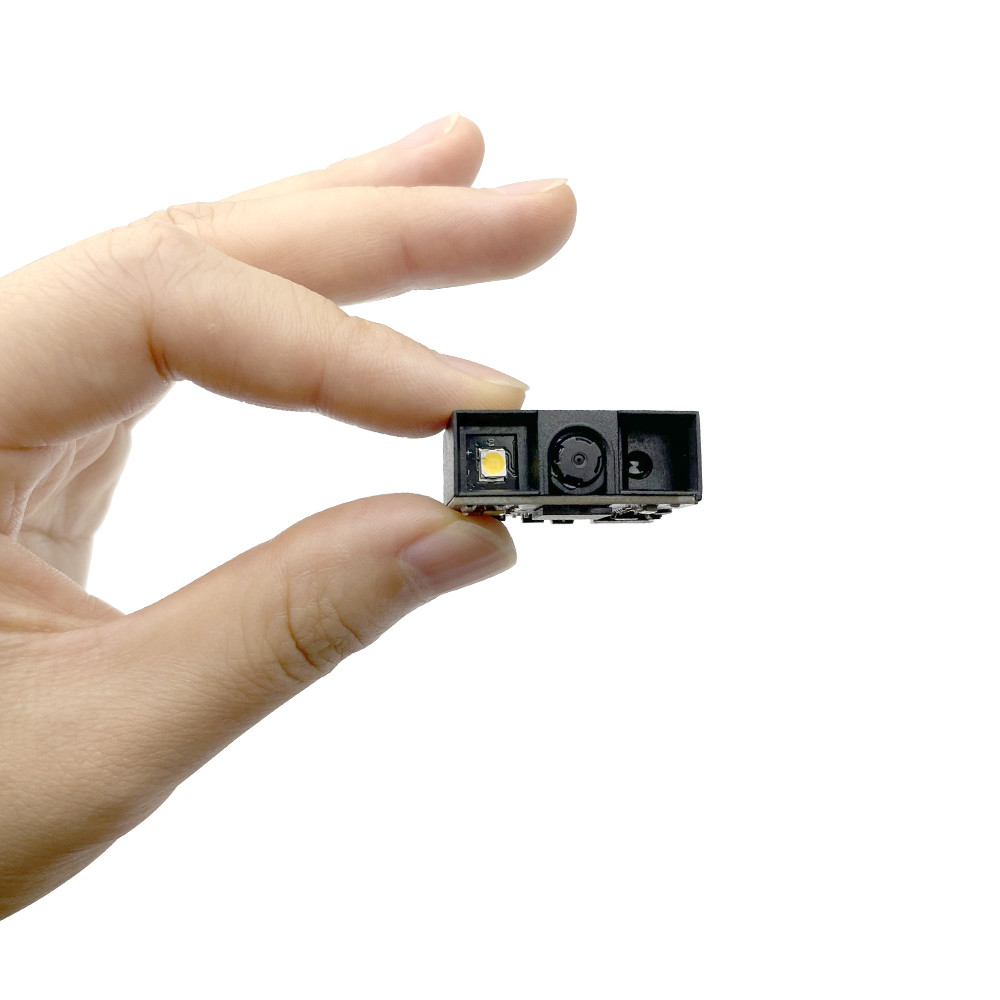

Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment.
* Multiple Interfaces:
The RD11C support TTL-232 12pin serial communication methods,or USB to meet diverse customer needs.
Parameters of Pos QR Code Scanner
| Specification | ||
| Optical System | 640 pixels(H)x 480 pixels(V) | |
| Illumination Element | Aiming: 617nm LED; Illumination 3200K White LED | |
| Depth of Field | 40 mm - 280 mm @UPCA -13 mil 100 %,PCS 90% | |
| Scan Angle | 38° (H) x 25° (V) | |
| Min. Bar Width | 0.1mm(4mil)@Code 39, PCS=90% | |
| Scan Mode | Trigger mode, Auto-sensing, Continuous scan, Pulse mode | |
| Print Contrast | > 30%(UPC/EAN 100% , PCS 90%) | |
| System Interface | TTL232 (12pin), USB 1.1 (HID Keyboard,Virtual COM Port) | |
| Depth of Field | ||
| Physical Characteristics | ||
| Dimensions | 28.2mm x 20.5mm x 11.8mm | |
| Weight | About 5g | |
| Input Voltage | DC 3.3V±5% | |
| Operating Current | 130 mA ±5%(Typical), 300 mA ±5%(Max.) | |
| REGULATORY | ||
| EMC | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI | |
| Environment & Safety | ||
|
Operating Temperature |
-20℃~50℃ | |
| Humidity | 5%~95% (non-condensing) | |
|
Storage Temperature |
-40℃~+70℃ | |
| Light Level | 0~100,000Lux(fluorescence ) | |
| Decoding Capability | ||
|
UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded
PDF417 MicroPDF417 Data Matrix QR Code Micro QR Code Aztec Code Maxi Code Reads barcode reliably of cell phone screens |
||
