Rakinda 1.3MP Industrial IP67 Code Reader Adopts 14 LED Lamps For Production line Quality Management And Tracking

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: R1
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/box
Supply Ability: 500pcs per week
Resolution: 2368×1760 Pixel Size: 3.2 μmx3.2 μm
Exposure Time: 60 μs To Lsec Seal: IP67
Light Source: White Light
High Light:

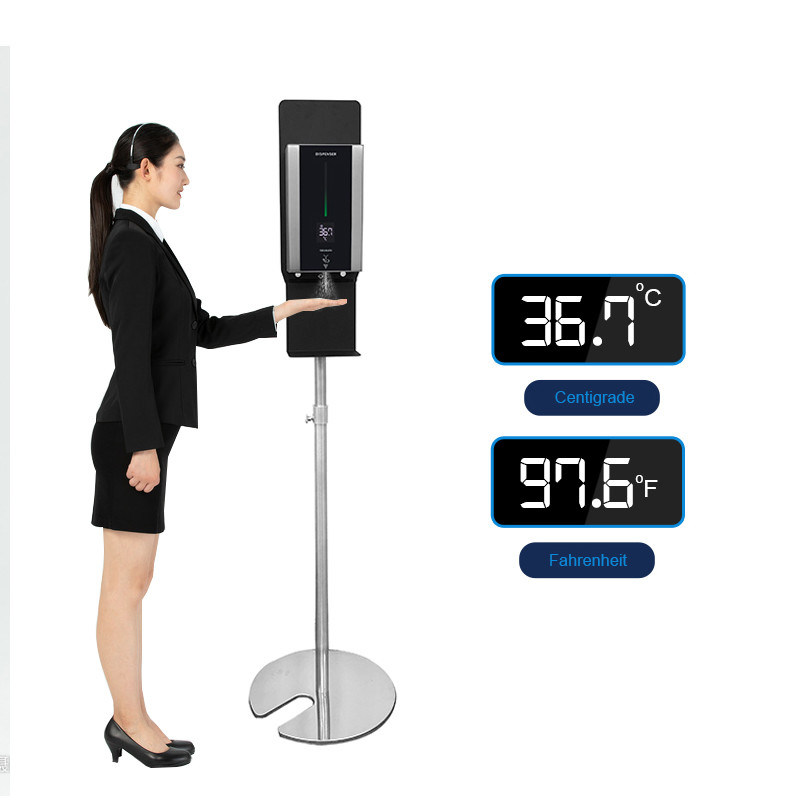

Digital Body Temperature Check Kiosk

,

Intelligent Body Temperature Check Kiosk

,

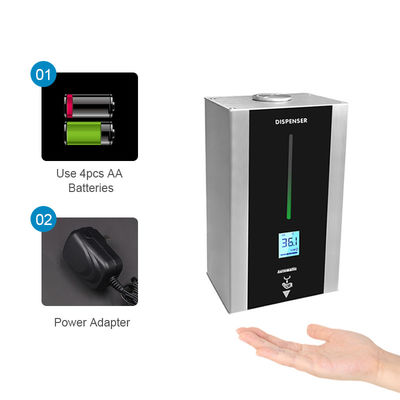

Auto Wake Up Hand Dispenser

Rakinda 1.3MP Industrial IP67 Code Reader Adopts 14 LED Lamps For Production line Quality Management And Tracking



Features
1.Adopts built-in deep learning algorithm to read codes with good robustness.
2.Adopts COMS global shutter sensor to provide high quality images.
3.Adopts multiple IO interfaces for input and output signals.
4.Adopts 14 LED lamps to provide light source.
5.Support polarized and non-polarized modes.
6.Adopts 2 LED aiming lamps for easy installation and code aiming.
7.Indicators on device display device status and code reading results.



Available Models
6 mm focal length: R1-0-06W
12 mm focal length: R1-0-12W
15mm focal length: R1-0-15W



Seal:IP67
Resolution:1280X1024

Max. Reading Speed:84 codes/sec

Max. Frame Rate:60 fps

Light Source:White light



Communication Protocol
SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP



Electrical Feature
Data Interface:Fast Ethernet


Digital I/O:
17-pin M12 connector provides power and I/O,
including non-isolated input (Lineln 0/1/2) x 3,
non-isolated output (LineOut 0/1/2) x 3, RS-232
input x 1, RS-232 output x 1. Device trigger via
pressing button on top supported.

Power Supply:24 VDC



Application:
Metal manufacturing, electronics manufacturing, auto parts etc. Industrial production line quality management and tracking management.
