| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE,FCC,ROHS |
| Model Number: | RD003 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiation |
| Packaging Details: | 1PCS/Box |
| Delivery Time: | 5-8working days |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 200PCS/Week |
| Image Sensor: | 752*480 | Illumination Lights: | White LED |
|---|---|---|---|
| Reading Distance: | 40-220 Mm | Working Current: | 600mA |
| Size: | 86mm X 86mm X 22mm (L*W:H) | ||
| Highlight: | contactless Hand Sanitiser Dispenser,1000ML Infrared Sensor Hand Sanitiser Dispenser,contactless freestanding temperature kiosk |
||

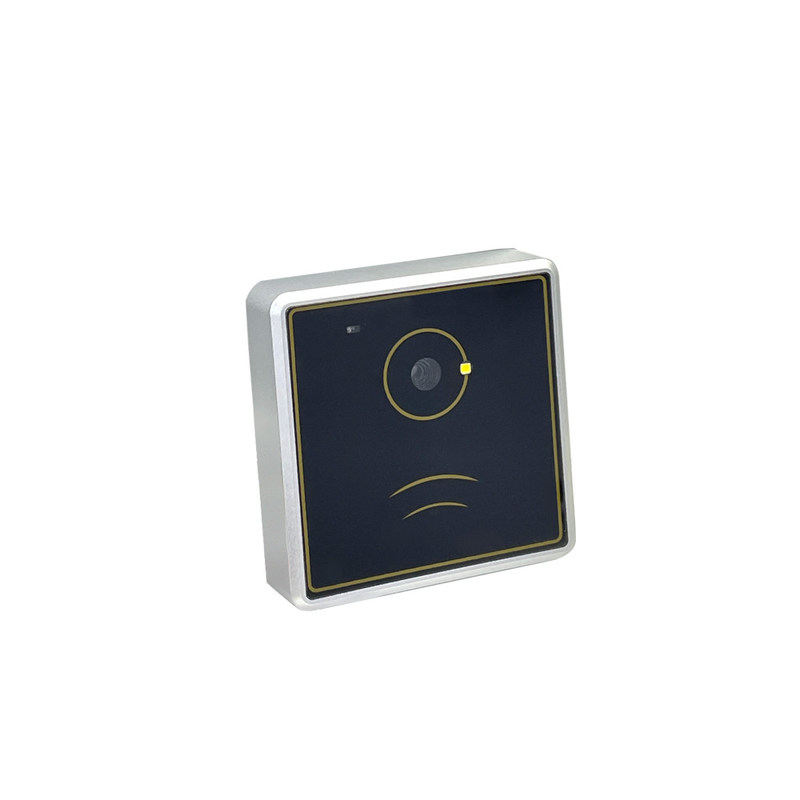

A QR code and Mifare card reader with RS232 and Wiegand interfaces is a versatile device commonly used in access control and authentication systems
When combined, a QR code and Mifare card reader with RS232 and Wiegand interfaces provides a flexible and comprehensive solution for access control and authentication needs. For example, users can authenticate themselves using either a Mifare card or a QR code scanned from their mobile device, offering convenience and versatility in access management.
Integration with access control systems typically involves configuring the reader to communicate using the RS232 or Wiegand protocol, allowing it to send authentication data (such as card IDs or QR code data) to the central access control panel for verification and access granting decisions.
Features
1. Wiegand output protocol: Wiegand26/32 can be set
2. Wiegand output cycle and pulse width can be set
3. Wiegand output byte order can be set
4. QR code output Wiegand data format and output character position can be set
5. Readable M1 card sector, sector number can be set, card sector password can be set
6. Read financial CPU card file data
7. Special modifications can be upgraded online
8. Wiegand interface, RS232 and RS485 optional
Parameters
| RD003 Multifunctional Reader Components | |
| Image Sensor | 752*480 |
| Illumination lights | White LED |
| Symbologies | 1D: CODE 128, UCC/EAN-128,AIM-128,EAN-8 |
|
2D: PDF417, QR CODE, DATA MATRIX. Supporting both phone screen code and paper printed code; |
|
| Reading Distance | 40-220 mm |
| Scanning Angle | 360°full angle |
| Mechanical Specifications | |
| Power input | 9-18VDC |
| Working current | 600mA |
| way beer control | low level effective |
| Reading I S014443A cards or Mifare sector content, can also read/write CPU card file according to request | |
| Barcode or 2D code scanning input | |
| Output code or IC card content by RS232 interface | |
|
Wiegand 34/26 output, output IC card number (normal reading function) and first three or four bytes of qr code character string (compatible with IC card number wiegand 26/34 format)
|
|
| RS232 and Wiegand output at the same time. Reading card or scanning qr cod it will generate both wiegand output and rs232 serial output | |
| Support RS232 serial 2D code converting to wiegand 34/26 output | |
| WIFI, LORA interface are extensible | |
|
Structure Dimensions
|
|
| Size | 86mm X 86mm X 22mm (L*W:H) |
