| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE,CF,RoHS |
| Model Number: | RK410 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiation |

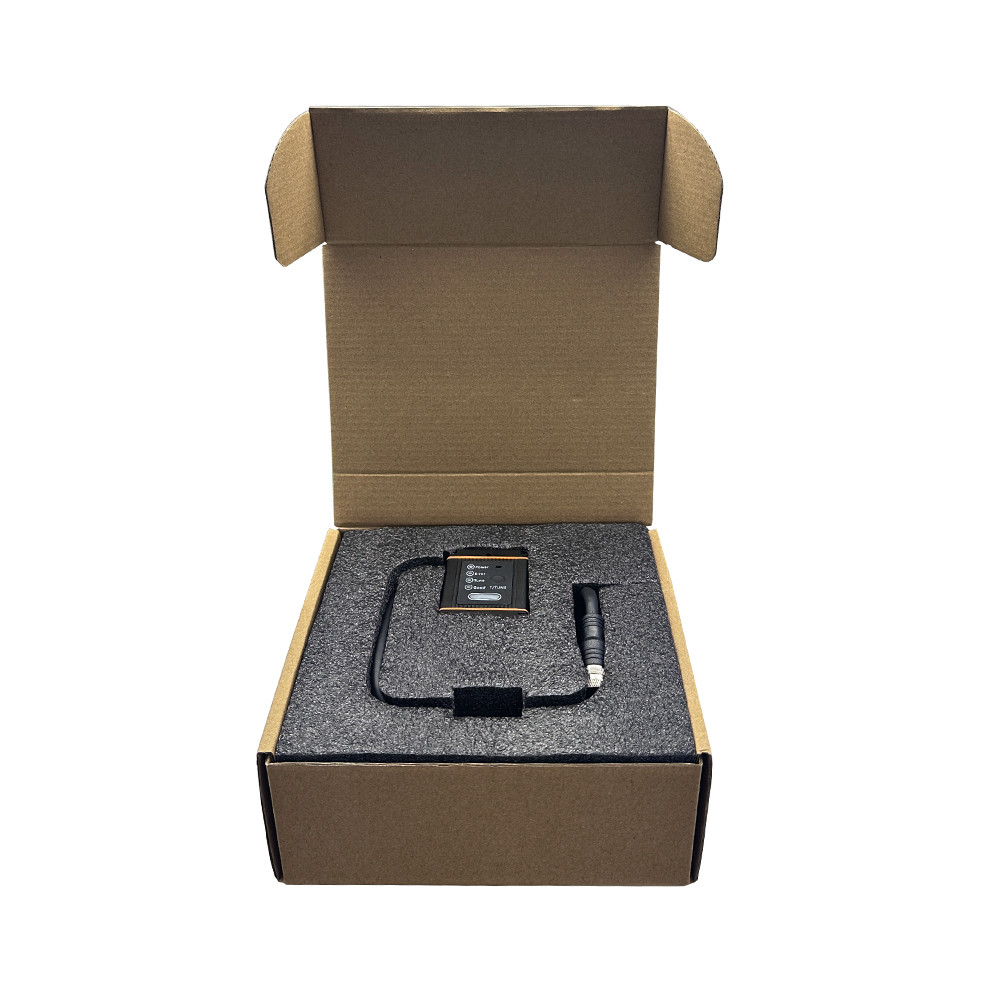

| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | Within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 100 PCS/ week |
| Support: | 24/7 | Mounting Height: | 190cm-200cm |
|---|---|---|---|
| Tf Card: | 8G | Focal Length: | 3.18mm |
| Power Supply: | DC24V 2A | Operating Temperature: | 5℃-50℃ |
| Record Capacity: | 150000 | Speed: | Fast |
| Storage: | RAM 2G，ROM 16G | ||
| Highlight: | 1L Hand Soap Dispenser,Kiosk Hand Soap Dispenser,1L alcohol gel dispensers |
||

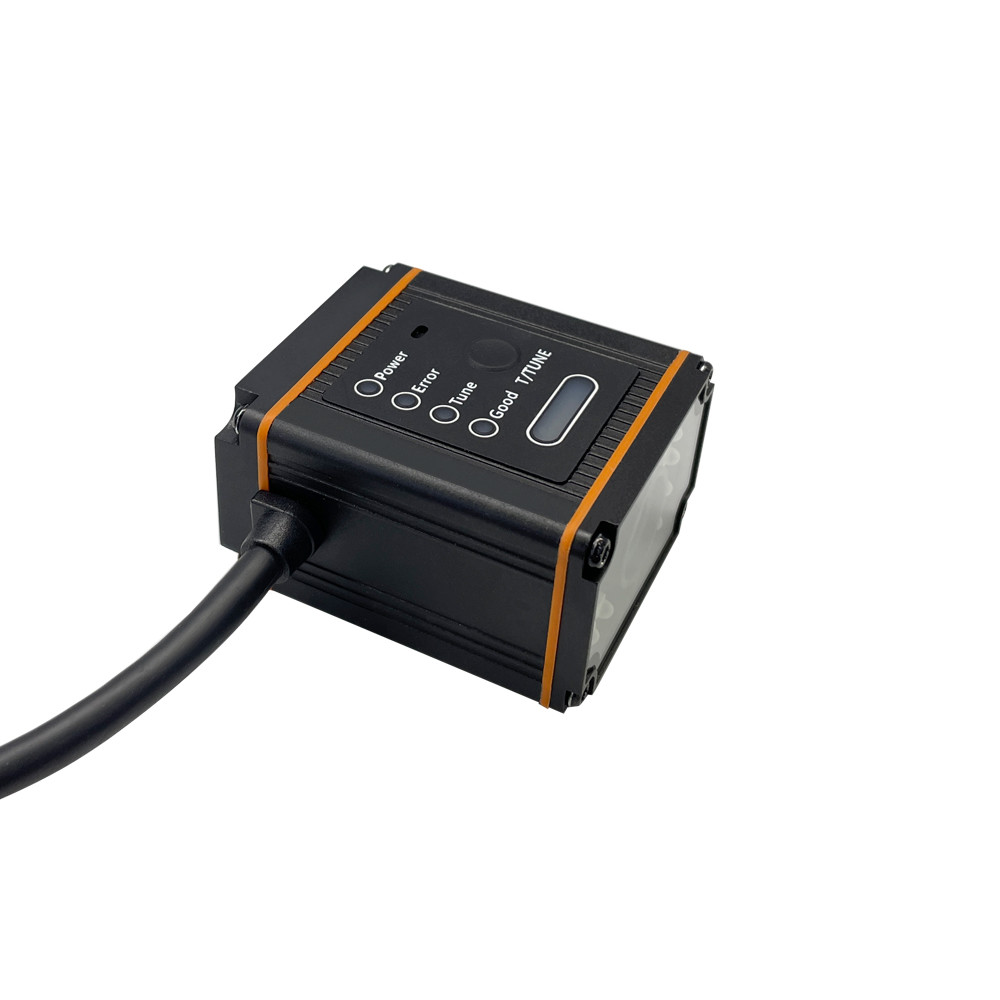

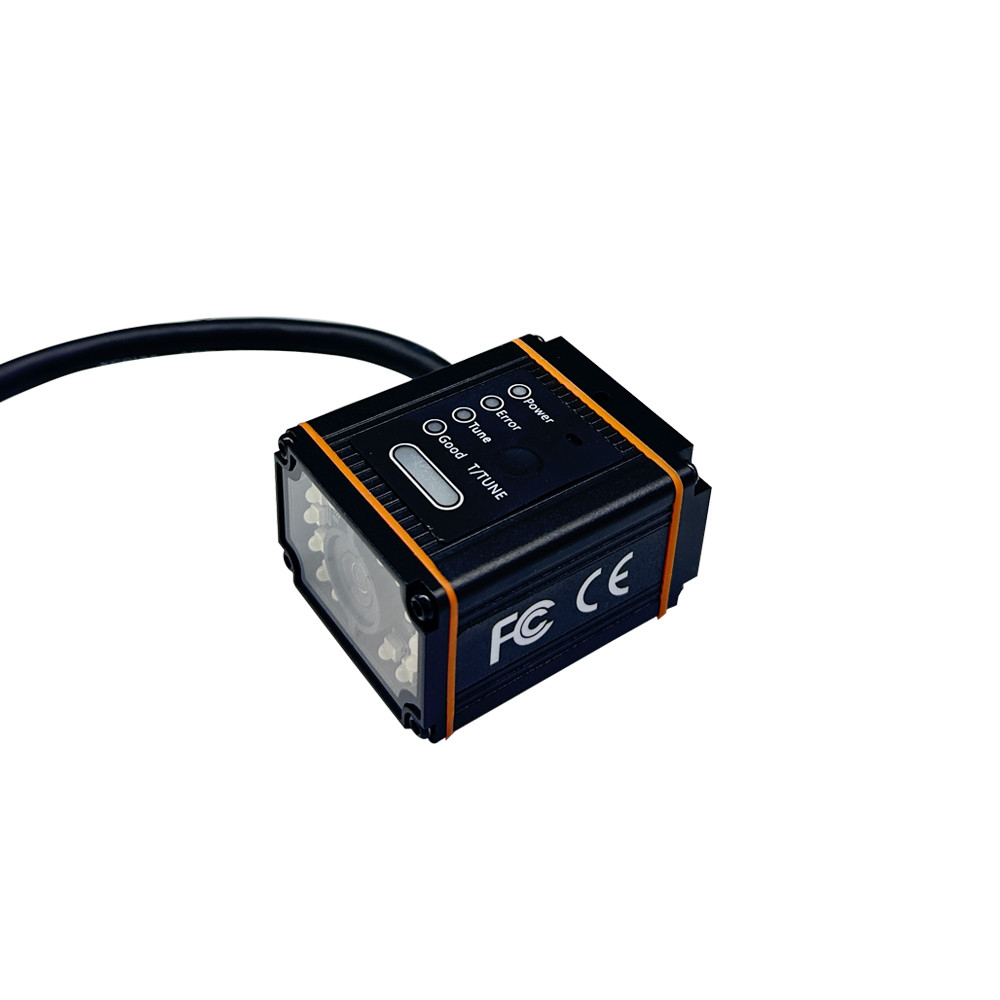

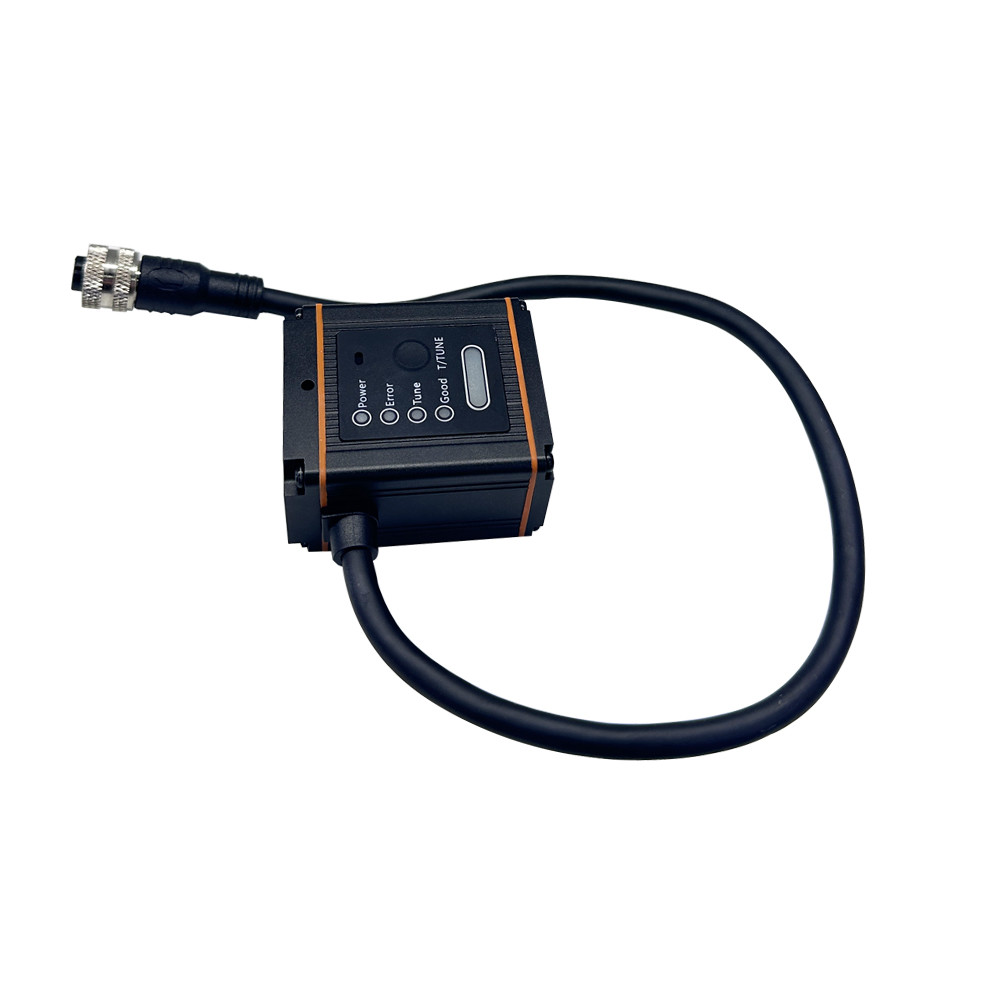

Discover the RK410 industrial barcode scanner with 1.3MP high-density sensor, advanced DPM algorithms, and TCP/IP connectivity. Perfect for IoT, machine vision, and production lines. IP65-rated & CE/FCC certified.
Key Features:
- 1.3MP High-Performance Sensor: Achieves precise scanning of 1D/2D barcodes, including challenging DPM (Direct Part Marking) codes.
- Industrial-Grade Durability: IP65 sealing ensures reliable operation in harsh environments (-40℃ to +70℃ storage).
- Smart Light Source Adjustment: Automatically adapts to reflective surfaces, curved codes, and low-contrast labels.
- Flexible Connectivity: Built-in Ethernet (TCP Client/Server, ModbusTCP) and RS232 interfaces for seamless IoT integration.
- Mechanical Focus Modes: Choose HD (high density), SR (standard range), or LR (long range) for optimal scanning accuracy.
Parameters
| Performance Characteristics | Image Sensor | 1 0 8 0 x 1 2 8 0 ( 1 . 3 M ) | ||
| Field of View | 29 ° ( H ) x 34 ° ( V ) | |||
| Light Source | Red LED | |||
| Aiming | 650 nm Laser | |||
|
Resolution |
HHD | LR | ||
| 1D : ≥3 mil ; 2D : ≥7 mil | 1D : ≥5 mil ; 2D : ≥10 mil | |||
|
Decode Capabilities |
1D | UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 ,Code 93 , Code 32 ,Code11 , Codabar , Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Hong Kong 2 of 5 , USPS Intelligent Mail , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited ,Composite Code-A , Composite Code-B , Composite Code-C | ||
| 2D | PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , Maxi Code | |||
|
Physical Characteristics |
Dimension (mm) | 44(W)× 53(D)× 29(H) | ||
| Weight | About 125g, without other accessories | |||
| Interfaces | Ethernet(TCP client/TCP server/Modbus TCP),RS232 | |||
| Input Voltage | 12 - 2 4 VDC | |||
| Output Signal | 1 Op to - isolated Input ( NPN / PNP / Relay ) | |||
| Input Signals | 2 Op to - isolated output(Good; NG ) | |||
| Sealing | IP 65 | |||
|
Reliability |
Storage temperature |
-40℃~+70℃ | ||
| Operating temperature | -10℃~+50℃ | |||
|
Relative humidity |
5%-95% ( no condensation ) | |||
|
Static Protection |
±12KV (air discharge), ±8KV (direct discharge) | |||
| Drop height | 1.5 meters to concrete floor | |||
