| Place of Origin: | China |
|---|---|
| Brand Name: | SCANMAX |
| Model Number: | F2-TH |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Name: | Face Recognition Device | Identification Height: | 1. 2-2.2 M |
|---|---|---|---|
| Identification Distance: | 0.5- 1.5m | Resolution: | 2 Million Pixels |
| Storage Capacity: | RAM 2G ROM 8G | Ethernet: | 10/100 Ethernet |
| High Light: | biometric attendance system face recognition,wireless portable barcode scanner |
||

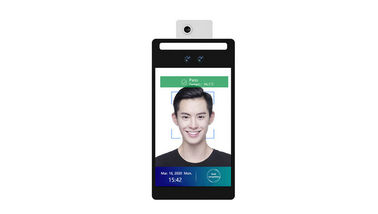

Face Recognition F2-TH Long-range Infrared Temperature Measurement Product Manual
Application Scenario

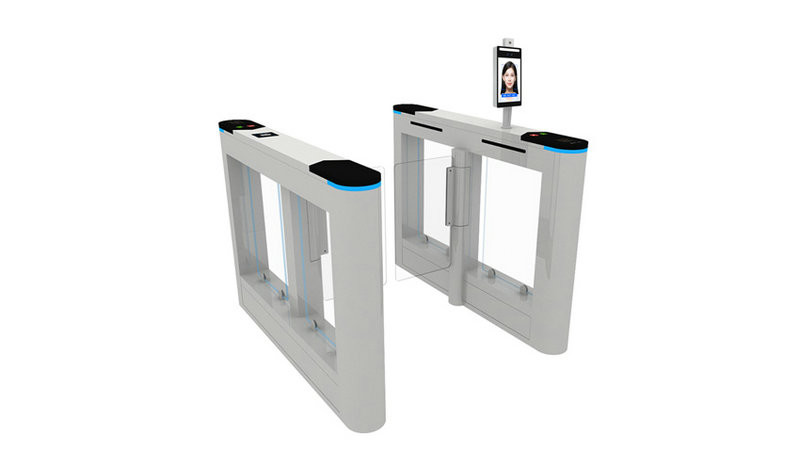

It is suitable for thousands of people's office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public services and management projects that require face access control

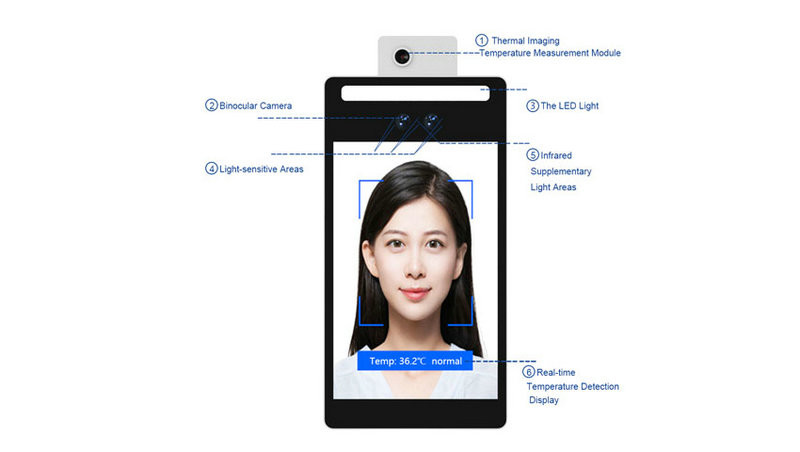

Product Features
Dynamic dual-camera anti-counterfeiting, completely solve the deception of various photos on various carriers
Dual infrared and RGB fill light at night; Infrared temperature measurement, optional mask recognition
Support external access control card reader, ID card reader
Support RS-485 serial port, Wiegand 26/34 output interface, support relay, door switch, door magnetic output content
Support 29,000 people to store historical records locally
Support public network and local area network deployment
Support HTTP interface connection
Support screen display content configuration
Support identification distance configuration
Identification height 1. 2-2.2 m
Identification distance 0.5- 1.5m (temperature test distance)
Recognition technology: Near-infrared live detection, embedded visible light face recognition, adapt to most indoor and outdoor environments, can quickly recognize on the move
5 ° C Accurate temperature detection: 2-3 seconds per person-time temperature detection accuracy
Status display Name broadcast display, custom information broadcast display
Parameters
|
Face Recognition Integrated terminal |
|||
|
Product Model |
F2-TH |
||
|
Size |
8 inch, full viewing angle, 170 degree IPS LCD screen |
||
|
Screen Resolution |
800*1200 |
||
|
Camera |
Type |
RGB |
Infrared |
|
Resolution |
2 million pixels |
||
|
Aperture |
F2.8 |
||
|
Focal Length |
3.18mm |
||
|
White Balance |
Automatic |
||
|
Wide Dynamic |
Support |
||
|
Vertical Wide Angle |
|
||
|
Horizontal Wide Angle |
|
||
|
Basic specifications |
Operating System |
Android7.1 or above |
|
|
Equipment Power |
DC12V(±10%)3A |
||
|
Equipment Power Consumption |
15w MAX |
||
|
Relative Humidity |
0% ¨ 90%(In a non-condensing state ) |
||
|
Operating Temperature |
-20 ~60(Wall-mounted design: the junction with the eight or six boxes is not waterproof, and a ceiling is required) |
||
|
Protection Cass |
IP55 |
||
|
Use Environment |
Indoor/Ourdoor |
||
|

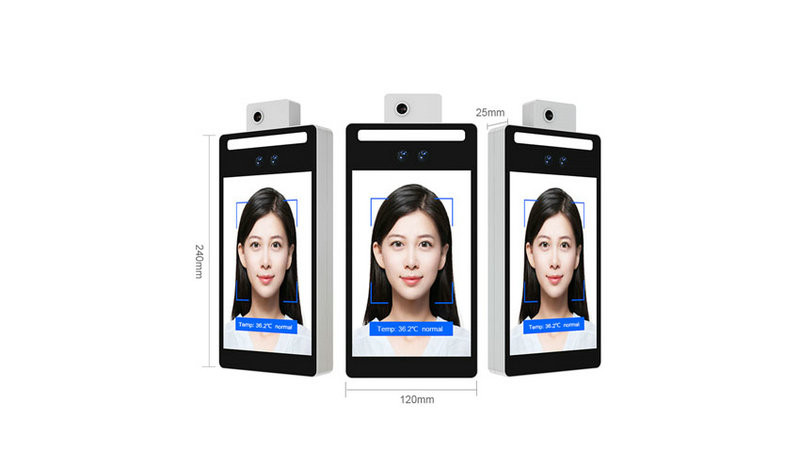

Equipment Size |
275.2mm*123.2mm*30.2mm |
||
|
Hardware Configuration |
Identification Method |
Brush Face |
|
|
Mifare card (optional: external purchase module required) |
|||
|
Resident ID card (optional: external purchase module required) |
|||
|
Face recognition parameters |
Face verification accuracy >99% |
||
|
Face recognition distance 0.5m-1.5m |
|||
|
Face ID card comparison time 600MS |
|||
|
Local capacity 20,000 sheets |
|||
|
Port |
Micro USB 1pcs |
||
|
RJ45 Gigabit 1pcs |
|||
|
Relay, Wiegand Interface, RS-485,Door Sensor, Door Switch |
|||
|
Support |
Infrared/White Fill Light, |
||
|
Basic Parameters |
Indicator Light |
Support authentication success, Green light prompt; Authentication failure, Red light prompt |
|
|
WIFI |
2.4G 802.11b/g/n |
||
|
Bluetooth |
Bluetooth4.0 |
||
|
4G LTE |
Full Netcom (optional: custom purchase required) |
||
|
Temperature Measurement Module |
Operating Temperature |
-20℃ ~ +85℃ |
|
|
Storage Temperature |
-40℃ ~ +85℃ |
||
|
Power Consumption |
< 0.3w |
||
|
Pixel |
32*32 Real-time temperature output |
||
|
Measurement Accuracy |
I + 0.5℃ |
||
|
Measuring Distance |
0.5 ~ 1.5m |
||
Details
