| Place of Origin: | China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE FCC ROHS |
| Model Number: | RD700 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, , Paypal |
| Supply Ability: | 100pcs per month |
| Power Consumption: | 1.75W | Dimensions: | 200mm X 150mm X 80mm |
|---|---|---|---|
| Maintenance: | Remote Diagnostics And Firmware Updates | Scan Window: | 38.3mm*60.4mm |
| Userinterface: | Multilingual Support With Audio Prompts | Datastorage: | Internal Memory With Cloud Sync |
| Symbologies: | PDF417, DM, Qr | Depth Of Field: | 40mm-430mm |
| Optical Resolution: | 10 Mil | Scan Mode: | Sense Mode/Trigger/ Command Control |
| Mountingtype: | Dashboard Or Pole Mount | Voltage: | DC 5 .0V |
| Displaytype: | LCD Or LED Screen | Interface: | TTL232 |
| Securityfeatures: | Encryption And Fraud Detection | ||
| Highlight: | biometric attendance system face recognition,wireless portable barcode scanner |
||

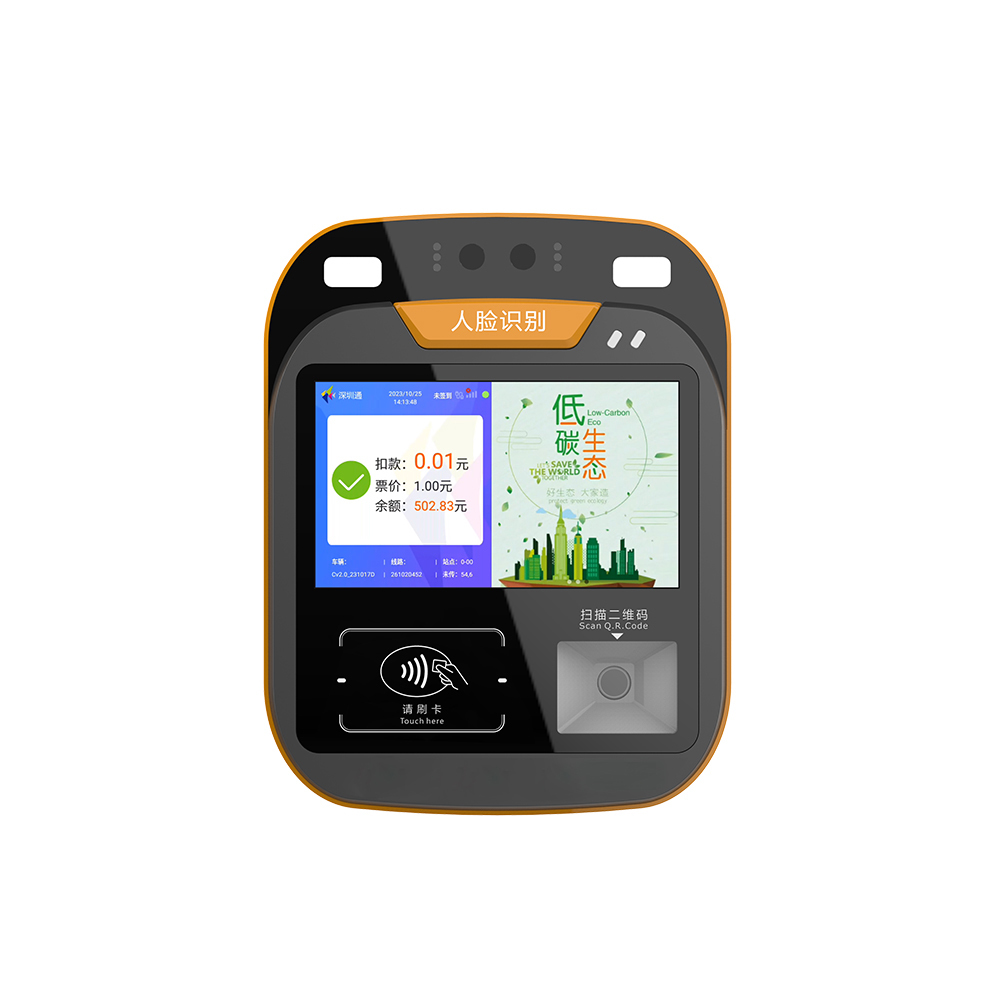

The RD700 is a versatile vehicle-mounted payment terminal built on the Android OS, designed to streamline fare collection across buses, ferries, and trains. This all-in-one solution supports multiple payment methods including contactless EMV bank cards, QR code scanning (WeChat Pay, Alipay), and NFC mobile wallets—meeting the growing rider demand for fast, cashless transit experiences. With password-free and signature-free transactions plus offline data authentication (ODA), the RD700 enables sub-second "tap-and-ride" boarding even in tunnels or remote areas without real-time network connectivity. Equipped with a 7-inch color display and 4G communication, this Android payment terminal delivers real-time transaction visibility and seamless integration with fleet management software.
Parameters of Contactless Payment Terminal
| Essential Parameter | |
| Processor | Quad-core Cotex-A55 Android 11 |
| Operating System Internal Storage 4G Module | ROM: 16G RAM: 2G |
| GPS | All-network 4G module with standard SIM card support*1 and built-in 4G antenna GPS+Beidou dual-mode positioning; single Beidou positioning; GPS antenna |
| WiFi | IEEE 802.11 b/g/n 2.4G |
| Bluetooth | 4.0 Bluetooth |
| PSAM Block | 4 PSAM cards supporting ISO 7816 standard |
| Scan Code Module | Code: QR Code (QR 1/2, Micro); Angle: 360° rotation, tilt +/-40° |
| Radio Frequency Module | 13.56MHz dedicated antenna; ISO 14443 TYPE A/B card; optional C card and 2.4G RF-SIM card |
| Dual-camera System | Resolution: 1920X1080; 200W pixels; 30fps; supports face detection and liveness detection |
| Ferroelectric FRAM | ferroelectric 8K byte FRAM |
| ID Card Module | Supports resident ID card scanning (Optional) |
| Temperature Measurement Module | Temperature measurement range: 30°C-45°C (Optional) |
| Peripheral Interface | |
| Port | RS485/RS232/Ethernet ports (default RS485, with three selectable functions) |
| OTG | USB-OTG port*1 |
| Universal Inter Face | RS232 universal interface*1 |
| CAN | CAN interface*1 (Optional) |
| GPS | External GPS antenna interface (Optional) |
| Human-computer Interaction | |
| Display Screen | 7-inch color display screen Function keys*4 |
| Function Key Pilot Lamp | Status indicator lights*2 Buzzer*1 |
| Buzzer | 15W 4Ω speaker |
| Speaker | 1-digit display *1, 4-digit display |
| Nixie Light Swing Card | Clearly marked card-swiping area |
| Power Supply Specifications | |
| Power Management | Powered by a DC power supply (9-36V) |
| Install | |
| Size | 262mm(L) * 204mm(W) * 89mm(H) |
| 311mm (L) * 204mm (W) * 89mm (H) (with module) | |
| Weight | Approximately 1.8kg |
| Work Environment | |
| Operating Ambient Temperature | -20℃ ~ +70℃ |
| Product Parameter Storage Ambient Temperature | -40℃ ~ +85℃ |
| Humidity of the Working Environment | 40°C, 15%–95% relative humidity (no condensation) |
| Storage Environment Humidity | 50°C, 5%–95% relative humidity (no condensation) |
| Product Property | |
| Reliability | IP54; ≥1 million read/write operations; over 100,000 button presses |
