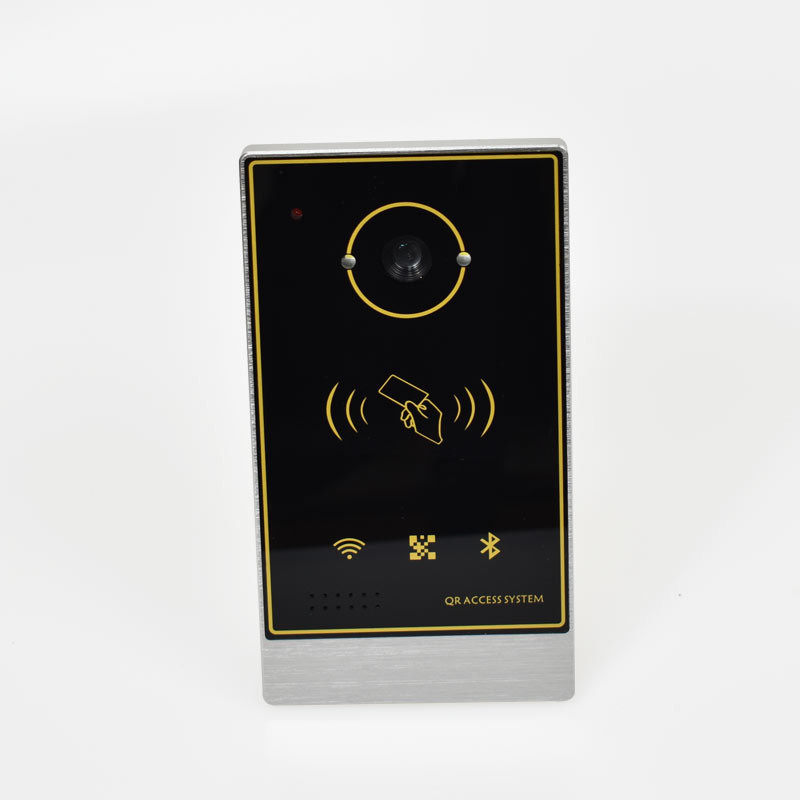

QR Mifare Card Scanning Devices RD007 Intelligent Access Control Device 9-18VDC

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE, RoHS
Model Number: RD007
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
Delivery Time: within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 PCS/ week
Wiegand Output: Wiegand 26/34 Output Image Sensor: 752 X 480 CMOS
Light Source:: White LED Reading Distance:: 10-55mm
Power Input: 9-18VDC Size: 152mm * 85mm * 35mm (L*W*H)
Communication Interface: RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth Working Current: < 600mA
High Light:

door access card system


gate access control

RD007 Interlligent Access Control Device QR Scanner Mifare Card Scanner that Using Smart House


1. The product has voice amplifier and speakers whose commonly used access incidents can be set, the network control play nearly 150 voices that can be customized.
2. Meet the agreed rules of the encrypted 2d code, in the case of no network, you can open the door or barrier directly.
3. Common parameters such as network IP parameters, lock delay, Wiegand 26/34, etc., can be set directly through the 2d code to make on-site debugging easier. 8. Equipment capacity: card 35,000 pieces, record 50,000 pieces, 2d code times 100,000, records and 2d code times are automatically looped over capacity.
4. The product uses the battery-free clock to maintain the circuit, eliminating the need to replace the battery regularly as well as express delivery troubles without batteries.
5. The product uses the data memory and the ferroelectric memory, even if the device suddenly power-down, it will not lose the stored data to ensure data safe and reliable.
6. Products can identify M1 card, second-generation ID card, CPU card, UltraLight, SR176, SRIX4K card number.
7. Network transmission standard for RJ45 10 / 100M TCP / IP transmission, extendable WIFI transmission or mobile phone Bluetooth transmission.
8. Support for connections cross-gateway or cross-segment TCP/IP network, and the controller can adapt automatically under direct-connect network cable or
crossover cable .
9. Built-in dual hardware anti-crash watchdog, even if the chip operation appear abnormalities, it can be restored in time, which does not affect the use.
10. Supports TCP/IP remote IAP upgrade. If there is a change in requirements, it can upgraded directly through network to be completed after the program modified.
11. Can be expanded to be installed WiFi module, it can make 2d code be transmitted to wireless network by WiF, WiFi module supports AP and STA dual mode.
12. Can be expanded to installed Bluetooth module to let products communicate with mobile phone Bluetooth to achieve other functions such as shake to open the door.
13. Integrated Development Package Docking DEMO Language: JAVA, C#, C++, etc

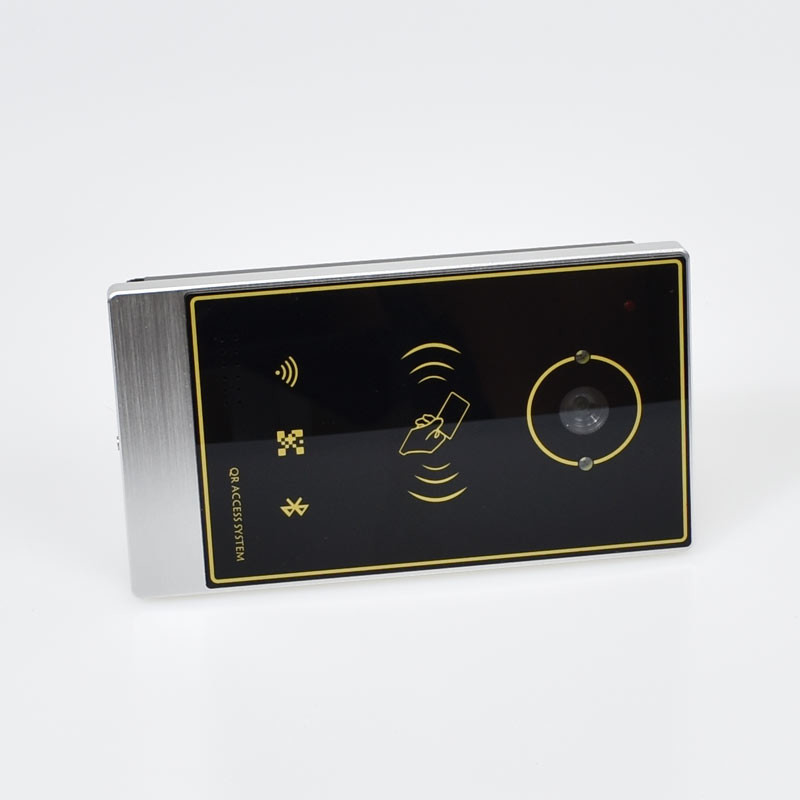

QR Mifare Card Scanning Devices RD007 Intelligent Access Control Device 9-18VDC 0

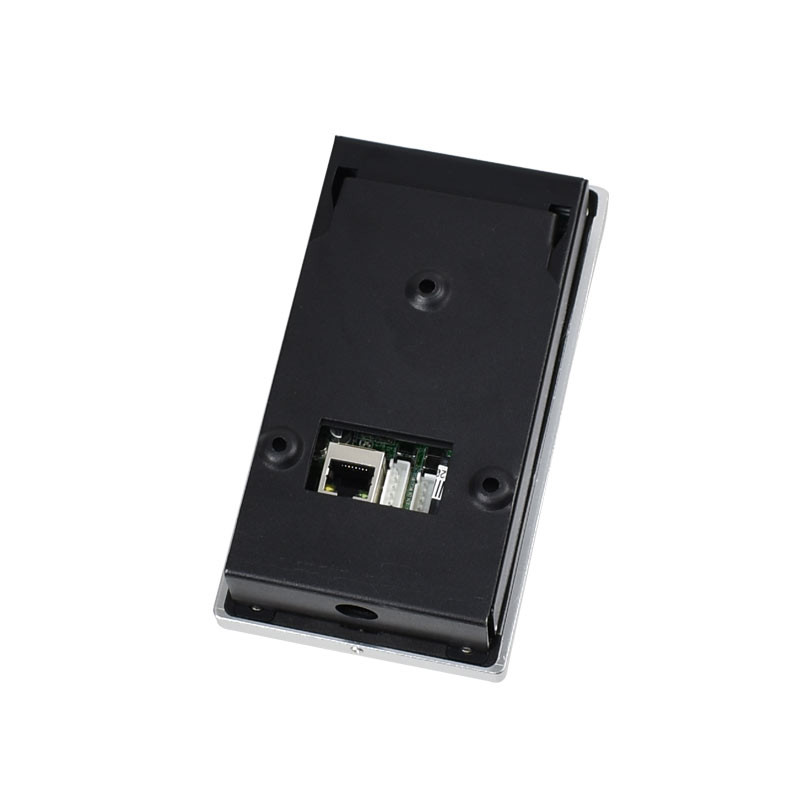

QR Mifare Card Scanning Devices RD007 Intelligent Access Control Device 9-18VDC 1

2D Code Engine Component Parameters
1. Image Sensor: 752X480;
2. Light Source: White LED
3. Symbologies
2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code.
1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc;
4. Reading Distance: 10-55mm;
5. Scan Angle**: 360° Full Angle


Input and Output Parameters
1. Power Input: 9-18VDC
2. Working Current: < 600mA
3. Can read like ISO14443Aor ISO14443B card serial number.
Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare
S70 IC card), SRIX4K, etc.
4. Barcode or 2D code input.
5. Wiegand 26/ 34 output, output IC card number (common read head function) and
associated card number output in compliance with QR code reservation rules.
6. Communication Interface: RJ45 10/100M TCP/IP, Extensible Wireless WIFI,
7. Communication Protocol: Support TCP / UDP / HTTP
8. Voice output: comes with voice, amplifier and speaker output, nearly 150 kinds of
voice output, customizable voice
9. Device input: 12V DC power input, 1 line gate input, 1 line exit button input, 1 line
alarm input
10. Equipment output: 2 way 250V/5A relay output, 1 way unlock,1 way expansion
can control door opener, light, water valve, etc.
11. Wiegand output: Wiegand 26/34 output


Installation size:152mm * 85mm * 35mm (L*W*H), Compatible with standard 86 box
