|Place of Origin:||Guangdong，China|
|Certification:||CE FCC ROHS|
|Model Number:||LV3000U Plus|
|Minimum Order Quantity:||1 pieces|
|Packaging Details:||Single package size: 10X10X10 cm|
|Delivery Time:||1-5 Working days|
|Payment Terms:||Western Union, T/T, paypal|
|Supply Ability:||5000pieces per month|
|Scan Element Type:||CMOS||Colour Depth:||32 Bit|
|Interface Type:||RS232||Max Paper Size:||A4 Size|
|Light Source:||LED 400nm To 750nm||IP Rating:||IP68|
2d barcode module,
barcode scanning solutions

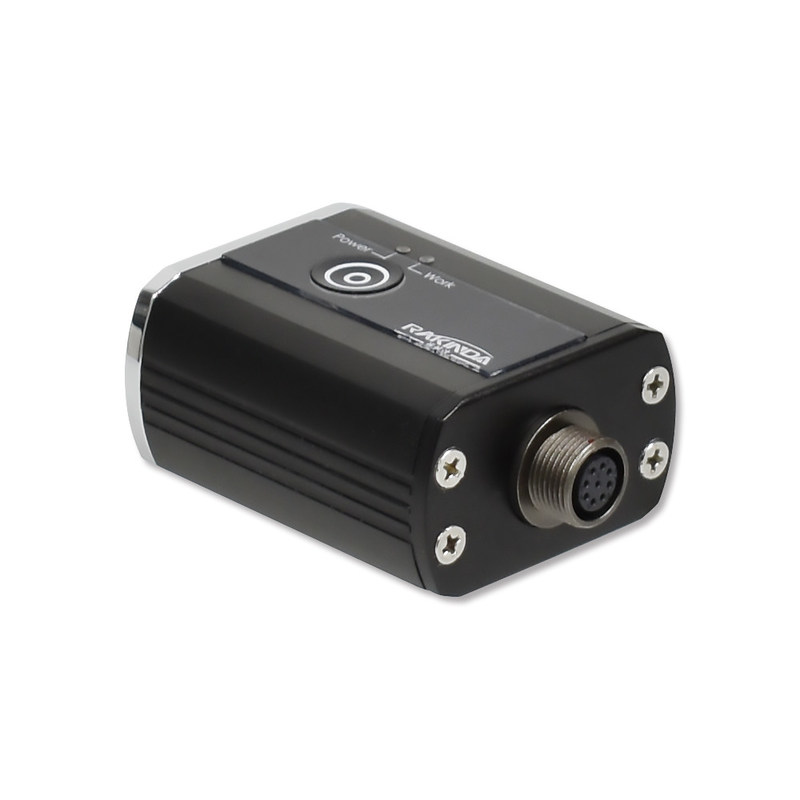

LV3000U PLUS Fixed Mount 2D Scanner is environmentally sealed to an IP68 rating to prevent dust, moisture, and other contaminants from entering it.
1. IR/Light Triggers
The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.
2. Automatic Exposure Control (AEC)
The sensors in the LV3000UPLUS automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.
3. IP68-sealed Housing
The LV3000U PLUS is environmentally sealed to an IP68 rating to prevent dust, moisture and other contaminantfrom entering it.
4. Unmatched Reading Performance
The LV3000U PLUS is capable of reading 1D as well as high-volume 2D barcodes on the screen covered withprotective film.
5. Highly Visible Laser Aimer
The LV3000U PLUS provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.
6. 1.5m Drop Resistance
The scanner withstands multiple 1.5m drops to concrete (for six sides, three drops per side).
Barcode Scanner Parameters:
|Performance||Image Sensor||1280*800 CMOS|
|Illumination Aiming||White LED laser diode or gree LED|
|Symbologies||2D||PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.|
|1D||EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.|
|Typical Depth of Foeld||EAN-13||55-360mm(13mil)|
|Scan Mode||Sense mode, Continuous mode, Level mode, Pulse mode|
|Scan Angle||Roll:360d, Pitch:±55°, Skew:±55°|
|Field of View||Horizontal 51°, Vertical 32°|
|Min Symbol Contrast||25%|
|Mechanical Electric||Interface||RS-232, USB|
|Notification||Beep, LED indicator|
|Rated Power Consumption||1622mW(typical)|
|Current SVDC||Operating||276.8mA(typical), 322.7mA(max.)|
|Environmental||Operating Temperature||-20℃ to 60℃(-4℉ to140℉)|
|Storage Temperature||-40℃ to 70℃ (-40℉ to 158℉)|
|Humidity||5% to 95% (non-condensing)|
|ESD||± 14kV (air discharge), ±8kV (direct discharge)|
|Certifications||FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC|
|Environmental||Cable||USB||Used to connect the LV3000U to a host device.|
|RS-232||Used to connect the LV3000U to a host device.|
|Power Adapter||DC5V adapter to power the LV3000U with RS-232 cable|
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start an online order directly. Or pls contact us first according to the contact info. We will send you the proper link directly.
Q3: What is your payment method?
A3: We accept Alibaba online orders, PayPal, T /T, LC, Western Union, MoneyGram.
Q4: How long is your warranty time?
A4: We officially promised warranty time is two years after delivery.
Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.
Q6: What's the lead time?
A6: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q7: Can you provide OEM service?
A7: Yes. We need further discuss details.
Q8: If I come across any problem during product use, where I can get the support?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional, patient,explanation by email or call in time.
Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.
