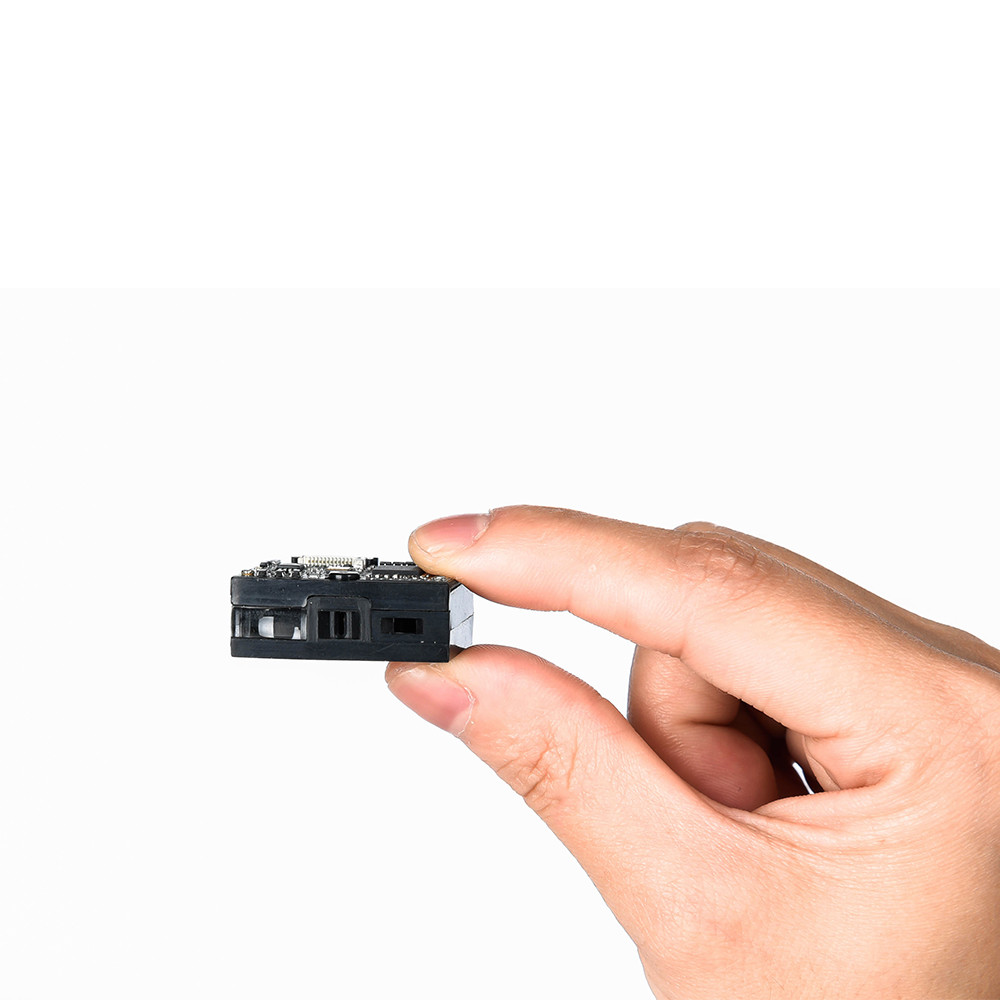

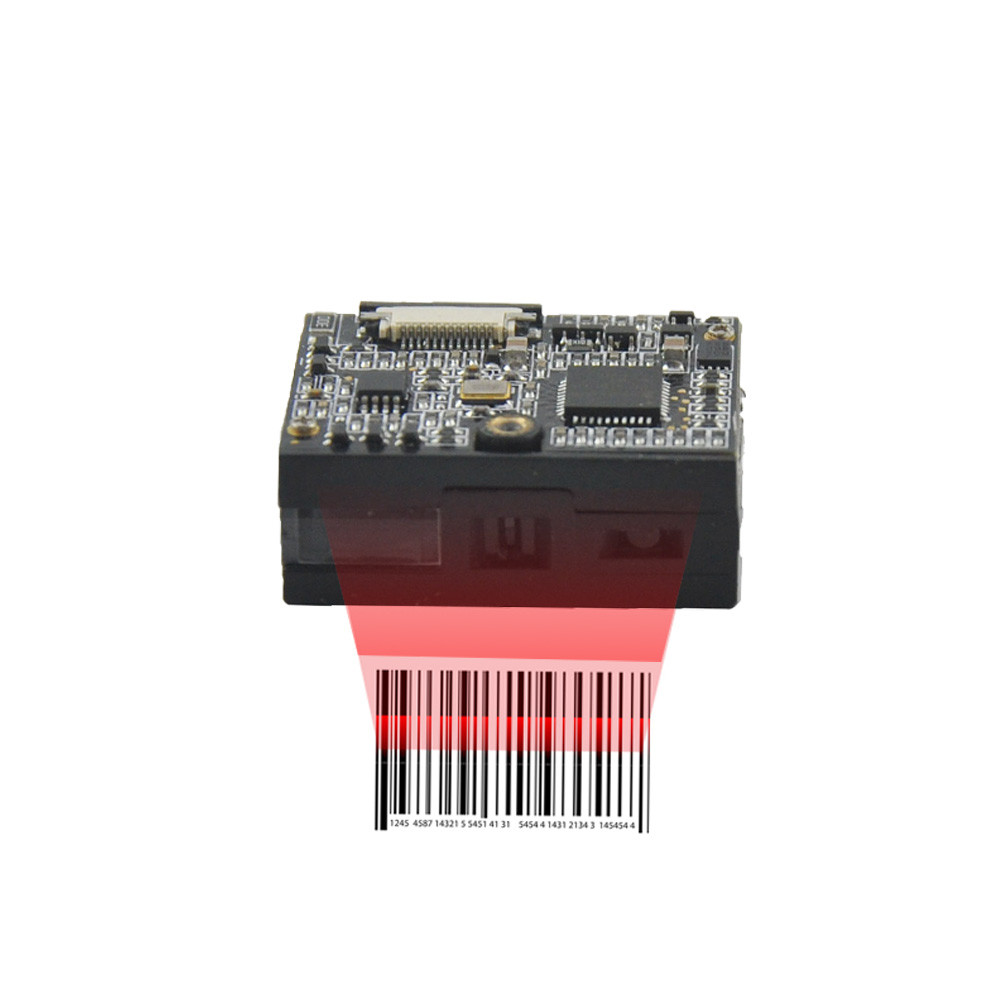

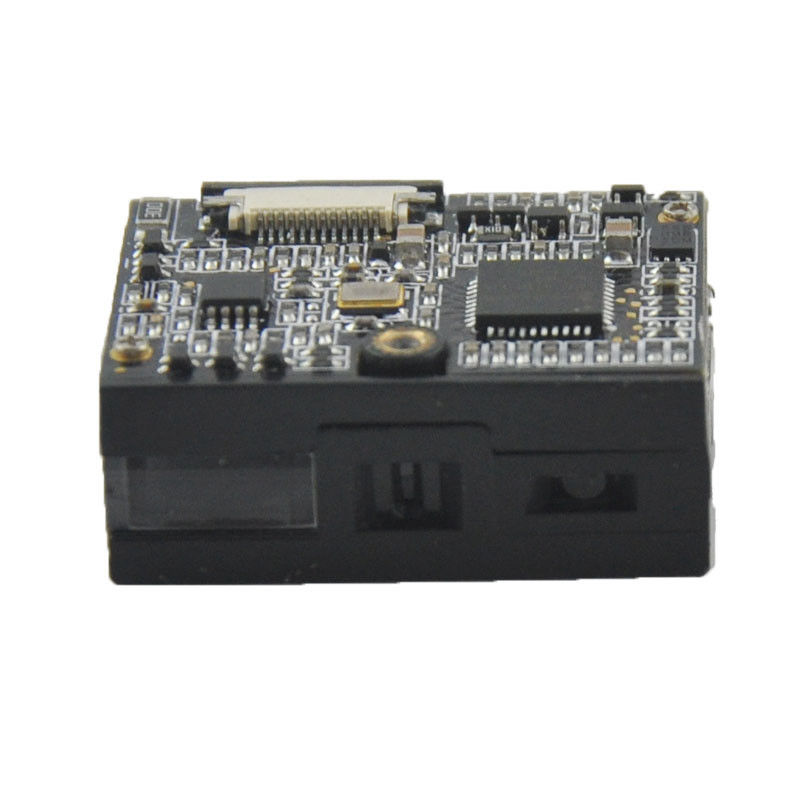

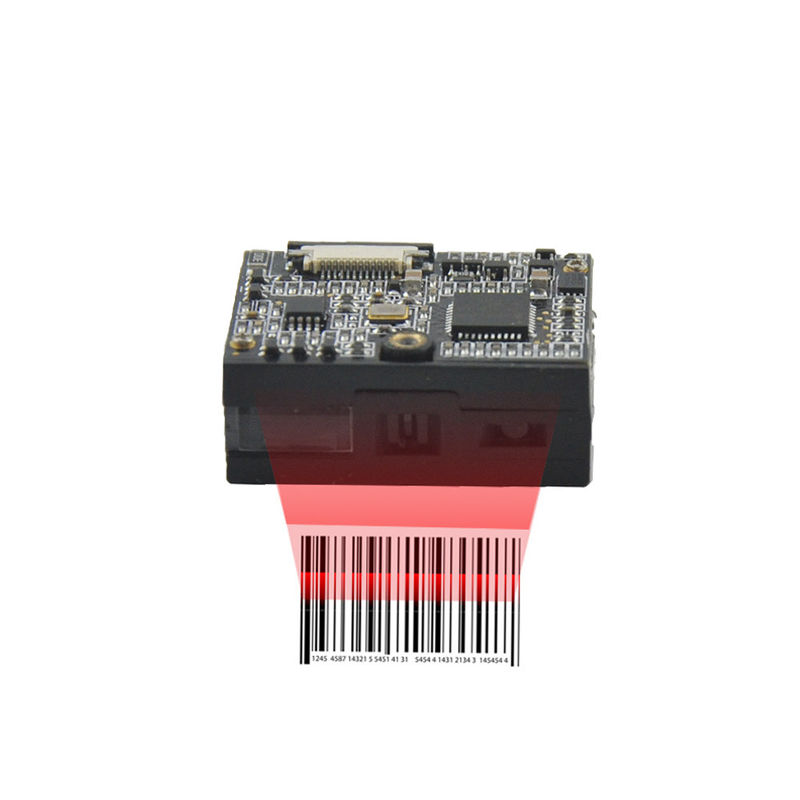

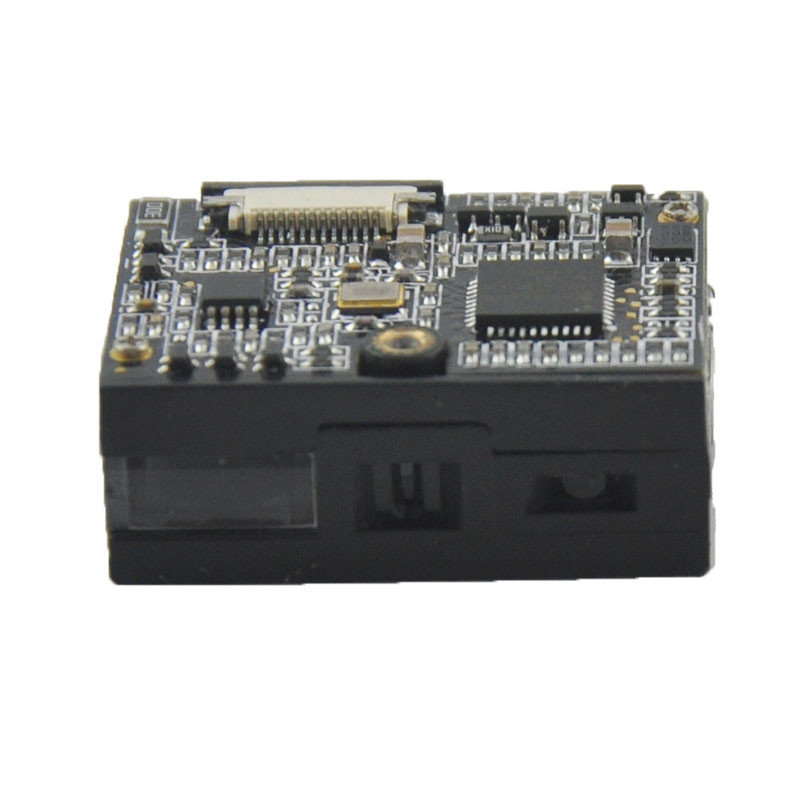

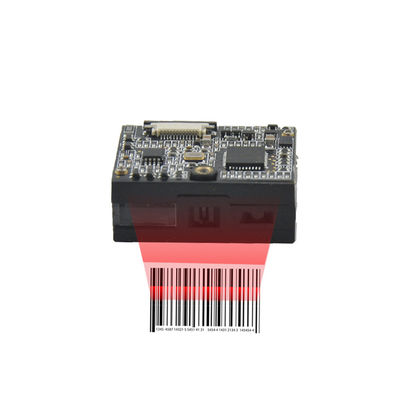

Household Raspberry Pi Barcode Scanner Module LV1365 CCD Embedded Type OEM Scan Engine

Household Raspberry Pi Barcode Scanner Module LV1365 CCD Embedded Type OEM Scan Engine

Household Raspberry Pi Barcode Scanner Module LV1365 CCD Embedded Type OEM Scan Engine

Product Details:

Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC Rohs
Model Number: LV1365

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: carton package
Delivery Time: 1-5 Working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Model: LV1365 Weight: 6g
Power Consumption: 0.2 W Code: 1 D
Warranty Time: 1 Year Lead Time: 1-5 Working Days

Household Raspberry Pi Barcode Scanner Module LV1365 CCD Embedded Type OEM Scan Engine​



LV1365 CCD scanner is designed for OEM applications, this high performance scan engine can easily be integrated into various projects such as tablets, handheld bluetooth scanner, kiosks, ticketing machines, PDAs, RFID reader and many more.

The LV1365 scanner supports EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar,Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.

LV1365 scanner has been successfully used in various household devices, such as milking machine, coffee machine.

The below pic is a coffee machine case using LV1365 scanner:

Household Raspberry Pi Barcode Scanner Module LV1365 CCD Embedded Type OEM Scan Engine



LV1365 Scanner Datasheet:

Interface TTL232/USB-KBW
Image Sensor Linear imager
Resolution 1500
Scan Rate up to 300 scans/sec
Decode Rate 200 decodes/sec (default)
Symbologies EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.
Precision ≥ 4mil
Light Source LED (610nm ~ 640nm)
Rated Power Consumption 0.20W
Operating Voltage 3.0 ~3.6VDC



Rakinda is a prestigious high-tech company specializing in designing, developing and manufacturing barcode scan instruments including OEM barcode scan engine, desktop barcode scanner, handheld barcode scanners, cordless barcode scanners, image platform, android data terminal, etc. The application domains are manufacturing, retailing, postage, logistic and medical services, etc.

With over 17 years of experience in barcode scan technology industry area, Rakinda has achieved some important success by enormous effort. The scanner products are certified by CE, FCC and RoHS etc.



FAQ
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: How can I buy?
A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q4: What is your payment method?
A4: We accept online credit card, TT, Paypal, Western Union.
Q5: Can I visit your factory:
A5: Yes, you are warmly welcome.
Q6: How long is your warranty time:
A6: 1 Year.
Q7: Where can we download the user manual of the scanners?
A7: We will send by email after you get samples.
Q8: What's the lead time?
A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q9: Can you provide OEM service?
A9: Yes. We need further discuss about details.
Q10: How do you ship the scanners usually?
A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
