UHF Access Control System Intelligent Scanner Devices Multi Passageway Control RS232 RJ45 Interface

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: ISO 18000-6C
Model Number: RF03
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam.
Delivery Time: within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 PCS/ week
Protocol:: ISO 18000-6C Interface: RS-232(DB9), RJ45
Working Frequency:: 902MHz~928MHz Power Supply:: AC 220V±10% 47~63 Hz
Weight: 13kg/pc Size: 1371×370×69mm/pc
High Light:

desktop barcode reader

,

handheld uhf rfid reader

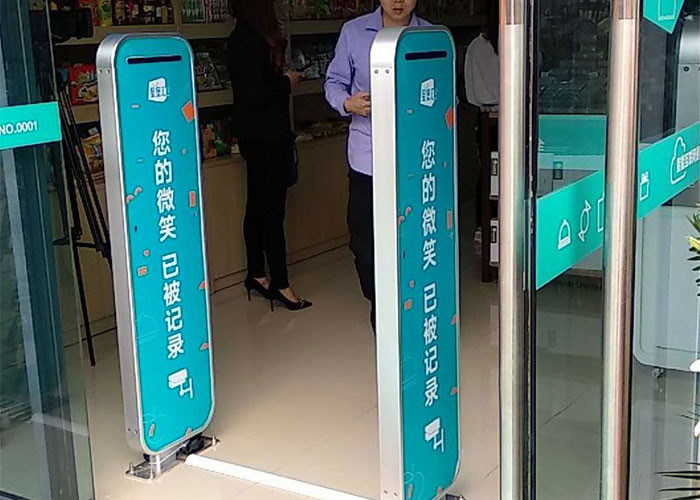

FR03 UHF Access Control System

UHF access control system supports EPC C1 G2(ISO18000-6C) protocol and server mode to realize multi-passageway control. It has built-in high gain antenna group and ImpinjR2000 based high-speed reader-writer and control module. It shows high-speed tags-reading performance and excellent read and writes area control performance. It has RS232 or RJ45 interface, easy to connect software platform. The system is specially fit for logistics, warehouse, books, file and attendance management.



Characters:
1. Independent intellectual design
2. Support server mode to realize multi-passageway control
3.Support EPC C1 G2(ISO18000-6C)protocol
4.Working frequency 902~928MHz (865~868MHz can be customized)
5. Output power 30dbm (adjustable)
6. Robust reading multiple tags and below 1% miss reading rate in IR trigger mode
7.Specially designed antenna to realize horizontal narrow beam, accurate coverage of access control area without the blind spot
8. built-in alarm light and beeper to ensure the reliable sensitive alarm
9.
Long distance between RIFD anti-theft door up to 2.2m



Specifications
Size: 1371×370×69mm/pc
Weight: 13kg/pc
Working frequency: 902MHz~928MHz
Protocol: ISO 18000-6C
Working temperature: -20℃~60℃
Storage temperature: -30℃~70℃
Humidity: 5%~95%RH (non-condensing)
Power supply: AC 220V±10% 47~63 Hz
Power consumption: around 45W
Interface: RS-232(DB9), RJ45
Suggest distance between doors of each passageway: 0.8~1.5m (max. 2.2m)
Access Control Parts (N passageways)
Access control bracket N+1 pcs (N passageways)
9dBic narrow beam antenna 4*N pcs
Controller and power module ≥N/2 pcs
Reader and writer module: N pcs
RS232 interface: N pcs
RJ45 interfaces: N pcs
Switchboard >N pcs
Radio frequency feeder: 4*N pcs
Photoelectric Beam Detector: 2*N pcs
IR connection cable: 2*N pcs
