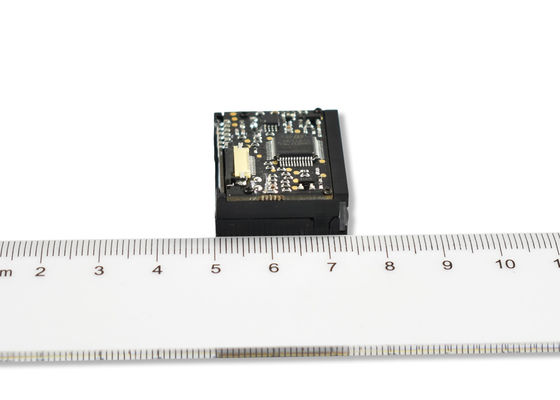

Mini Bar Code Barcode Scanner Module 265 LUX For Android Tablet PC

Mini Bar Code Barcode Scanner Module 265 LUX For Android Tablet PC

    • Mini Bar Code Barcode Scanner Module 265 LUX For Android Tablet PC
    • Mini Bar Code Barcode Scanner Module 265 LUX For Android Tablet PC
  • Mini Bar Code Barcode Scanner Module 265 LUX For Android Tablet PC

    Product Details:

    Place of Origin: China
    Brand Name: RAKINDA
    Certification: FCC,CE,Rosh
    Model Number: LV1000.01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: 14*11*8.5cm
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 10000 per month
    Contact Now
    Detailed Product Description
    Name: OEM Scan Engine Symbologies: 1D
    Reading Mode: CCD Interface: TTL232
    Wireless: None Category: Full Feature, Customizable
    Scan Rate: Up To 300 Scans/sec Weight: 6g
    Size: 28.2*23.4*11.2mm

    Mini Bar Code Barcode Scanner Module 265 LUX For Android Tablet PC







    Brand new 1d reader engine bar code scanner hot sale mini barcode scanner for android tablet pc



    Ease of integration



    Compact (smaller than a paperclip) and easy to integrate design, image capture device with decoder on one board. The small form factory enables easy integration into various solutions.



    Advanced Technology



    Includes core-technology , which is independently designed and manufactured technology includes the optical, CMOS, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D barcode symbologies.


    Its' reading performance reaches and exceeds global standards. By using the accessories provided, the user can ideally set up the scanner to its user environment.



    Application Scenarios



    Designed for OEM applications, this high performance scan engine caneasily be integrated into various solutions such as kiosks, ticketing machines,PDAs and many more.

    Mini Bar Code Barcode Scanner Module 265 LUX For Android Tablet PCMini Bar Code Barcode Scanner Module 265 LUX For Android Tablet PC

    Performance
    Interface TTL232/USB-KBW
    Image Sensor CCD
    Resolution 2500
    Scan Rate up to 300 scans/sec
    Decode Rate 200 decodes/sec (default)
    Symbologies Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, etc.
    Precision ≥ 5mil (Condition: PCS=0.9, testing code: Code 39)
    Light Source LED(622 nm - 628 nm)
    Light Intensity 265 LUX (130 mm )
    Depth of Scan Field 40mm-430mm
    Print Contrast Signal ≥ 30%
    Sensitivity** Pitch ±65°@ 0°Roll and 0° Skew
      Roll ±30°@ 0°Pitch and 0° Skew
      Skew ±60°@ 0°Roll and 0° Pitch
    Illumination 0 ~ 100,000 LUX
    Mechanical/ Electrical
    Power Consumption 0.33W
    Voltage DC 3.3 V
    Current Working 150mA(Max)
      Idle 45mA
      Sleep 1 mA
    Weight 6g
    Environment
    Operate Temperature -20℃ - +60℃
    Storage Temperature -40℃ - +85℃
    Humidity 5% - 95% ( non-condensing )
    Certificates
    FCC Part15 Class B, CE EMC Class B
    Accessories
    Evaluation Kit The Evaluation Kit for EM1300, with trigger, beep functions and USB, RS232 interfaces.
    Flex Cable RS232 Cable This cable connect to the RS232 port of EVK1300.
    With a standard female RS232 port to connect to standard male RS232 port.
    With a power port to accept power adapter supply.
    USB Cable This cable connects to the USB Slave port of LV1000 with a USB-B male port. With a standard USB Slave port to connect to standard USB Host port.
    Power Adapter The power adapter for EVK1300 by RS232 Cable.
    Output: DC5V, 2A; Input: AC100~240V, 50~60HZ
    **Test Condition:
    Code39: 3 Bytes ; Resolution = 10mil; W:N = 3:1 ; PCS = 0.8 ;
    Barcode Height = 11mm; Distance = 120mm; T=23°C; Illumination= 200 LUX



    Q: What is your payment method?
    A: We accept online credit card, TT, Paypal, Western Union.
    Q: Can I visit your factory:
    A: Yes, you are warmly welcome.
    Q: How long is your warranty time:
    A: 1 Year.
    Q: Where can we download the user manual of the scanners?
    A: We will send by email after you get samples.
    Q: What's the lead time?
    A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
    Q: Can you provide OEM service?
    A: Yes. We need further discuss about details.
