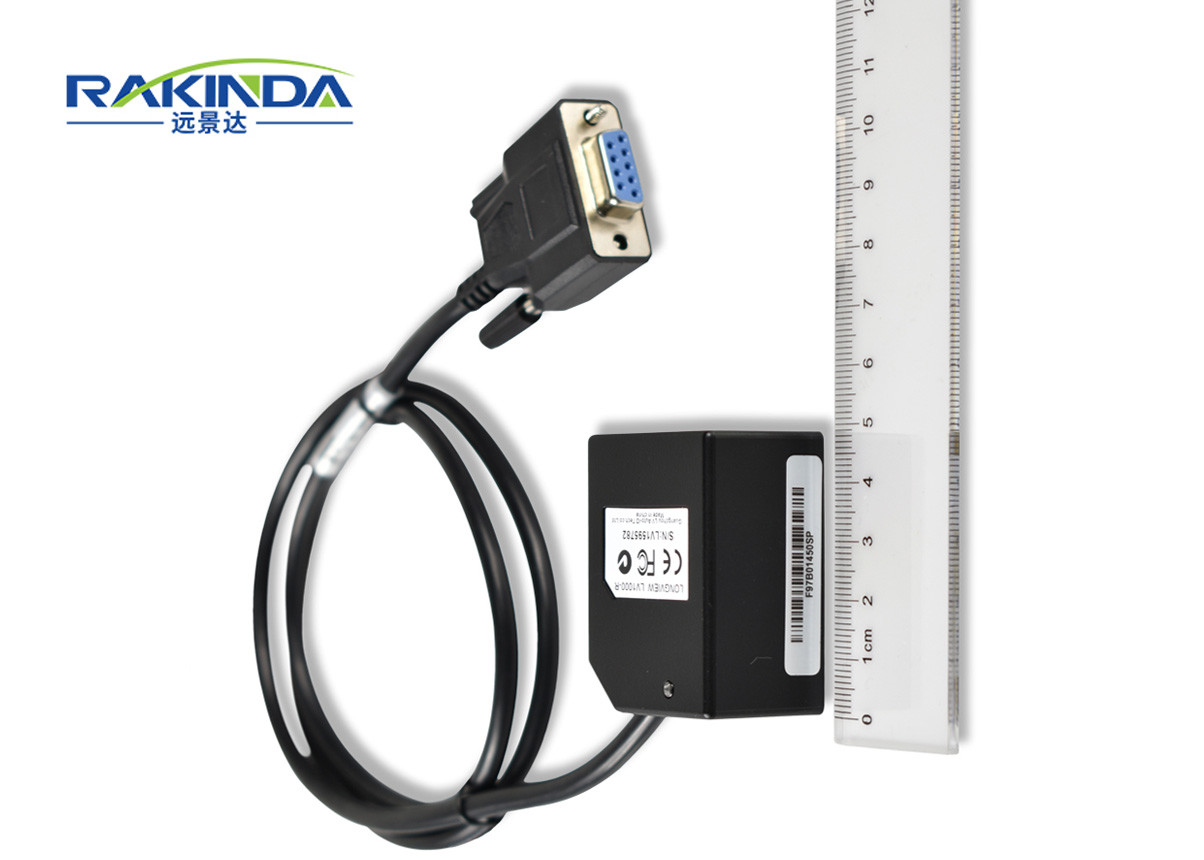

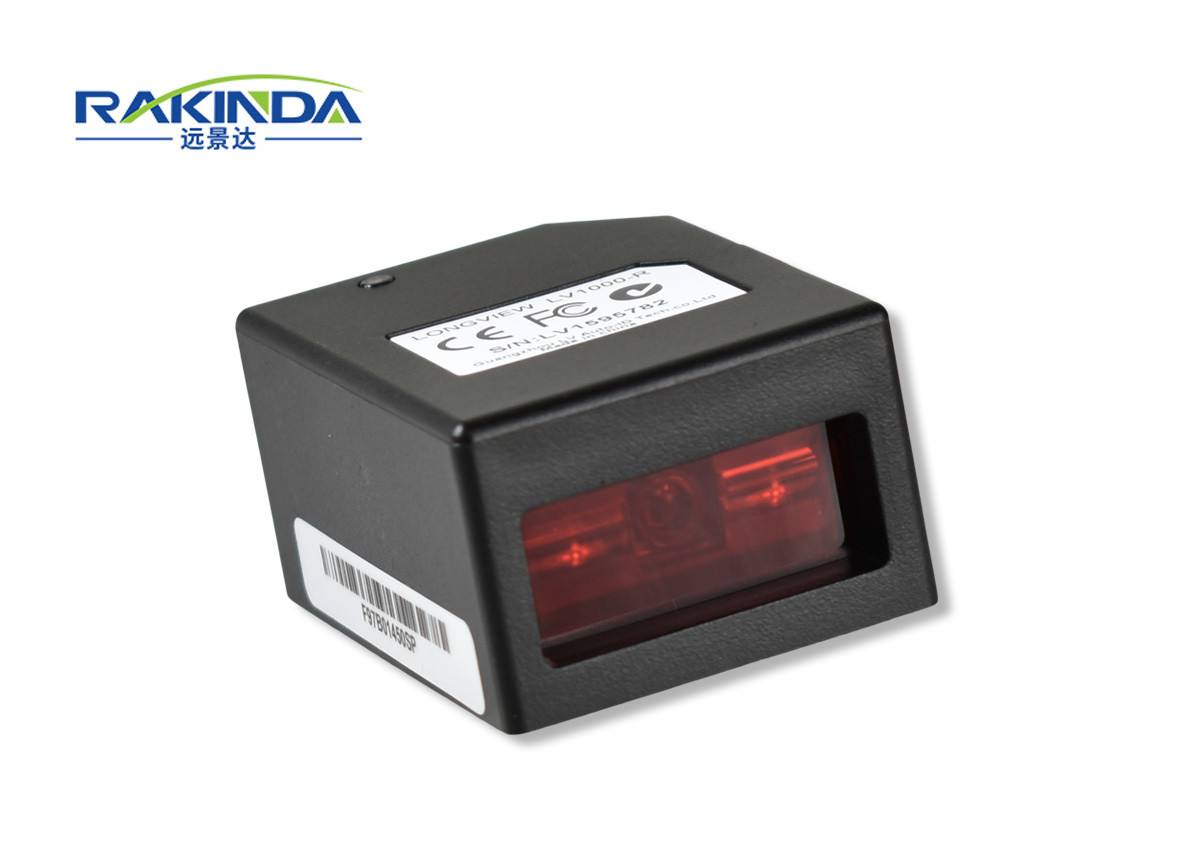

High Performance Barcode Scan Engine Linear imager Sensor 5mil Precision

High Performance Barcode Scan Engine Linear imager Sensor 5mil Precision

    • High Performance Barcode Scan Engine Linear imager Sensor 5mil Precision
    • High Performance Barcode Scan Engine Linear imager Sensor 5mil Precision
  • High Performance Barcode Scan Engine Linear imager Sensor 5mil Precision

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: LV1000R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Product Name: Barcode Scan Engine Type: 1D Barcode Scanner Module
    Reading Mode: CCD Precision: ≥ 5mil( Condition: PCS=0.9, Testing Code: Code 39)
    Payment: T/T, Western Union, Paypal Weight: 70g
    Humidity: 5% - 95% (non-condensing) Illumination: 0 ~ 100,000 LUX

    High Performance Barcode Scan Engine Linear imager Sensor 5mil Precision





    Introduction

    There are 2 ways to program (configure) the Engine, Code Programming and Command Programming.



    Code Programming

    The Engine reads a set of specially encoded barcodes to program options and features. In the following

    sections, we will explain the options and features available and provide the barcodes to program them.

    This method of programming the Engine is most straight forward. However, it requires manually readings of each barcode. As all manual operations, errors are more likely to occur.



    Command Programming

    The Host can send the Pro CMD strings to program the Engine. In the following sections, the Pro CMD

    strings will be included with the barcodes for Code Programming.

    This method of programming the Engine could be automated. A software program can be developed to

    download all the configuration data to the Engine. The program can also verify the download.



    Note: Except some temporary programming, the programming results are restored in non-volatile memory. They will not be lost when the Engine is powered off.



    Technical Specifications of LV1000R 1D Barcode Scanner Module

    Performance
    Image Sensor Linear imager
    Resolution 2500
    Interface type RS232, USB 1.1
    Symbologies Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1Databar,etc.
    Precision ≥ 5mil( Condition: PCS=0.9, testing code: Code 39)
    Depth of Scan Field 40mm-430mm
    Print Contrast Signal ≥ 30%
    Sensitivity** Pitch ±65°@ 0°Roll and 0° Skew
    Roll ±30°@ 0°Pitch and 0° Skew
    Skew ±60°@ 0°Roll and 0° Pitch
    Illumination 0 ~ 100,000 LUX
    Light Source LED(622 nm - 628 nm)
    Light Intensity 265 LUX (130 mm )
    Mechanical/ Electrical
    Power Consumption 1.25W
    Voltage DC 5 V
    Current Max 250 mA
    Working 170mA
    Idle 65mA
    Dimensions 49.0 *37.0 * 26.0 mm
    Weight 70 g
    Environment
    Operate Temperature -5°C - +45°C
    Storage Temperature -40°C - +60°C
    Humidity 5% - 95% (non-condensing)

    High Performance Barcode Scan Engine Linear imager Sensor 5mil Precision



    Barcode Scanner FAQ



    Q1: Can I get some samples? are they free?

    A1: Of course, but samples are not free.

    Q2: What's the delivery time?

    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.

    Q3: What about payment?

    A3: Payment terms: T/T,West Union and L/C etc.

    Q4: Can you list the product of your company?

    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.

    Q5: What's the OS of the POS?

    A5: Android and Windows,details please refer to the technical data of the Product.

    Q6: Where can we download the SDK/user manual for some of your products?

    A6: SDK/User manual will be sent to you by email after the sample order.

    Q7: Warranty time?

    A7: 1 year

    Q8: Do you provide Evaluation Kit for testing barcode scanner module?

    A8: Yes, but you need to pay for EVK separately.

    Q9: Product OEM?

    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.

    Q10: Customer service?

    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
