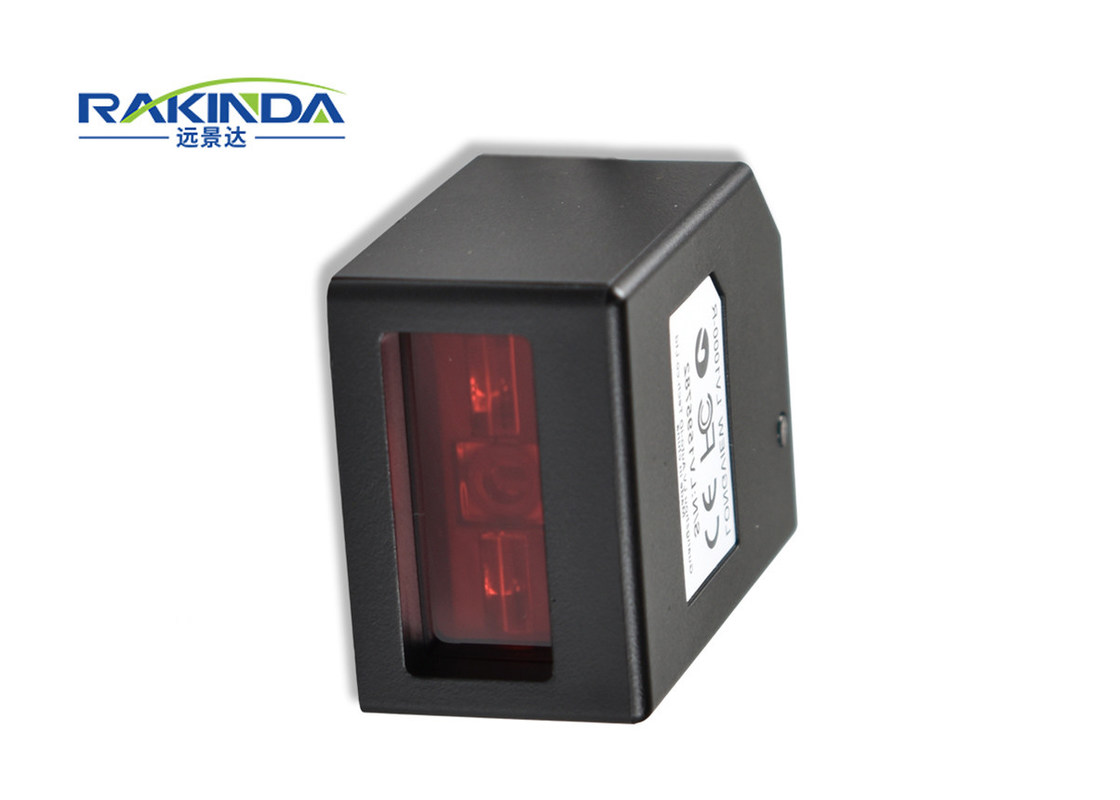

Industrial Barcode Scanner Linear Image Sensor 30% Print Contrast Signal

Industrial Barcode Scanner Linear Image Sensor 30% Print Contrast Signal

    • Industrial Barcode Scanner Linear Image Sensor 30% Print Contrast Signal
    • Industrial Barcode Scanner Linear Image Sensor 30% Print Contrast Signal
  • Industrial Barcode Scanner Linear Image Sensor 30% Print Contrast Signal

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: LV1000R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Product Name: 1D Barcode Scan Engine Print Contrast Signal: ≥ 30%
    Wireless: None Image Sensor: Linear Imager
    Payment: T/T, Western Union, Paypal Weight: 70g
    Dimensions: 49.0 *37.0 * 26.0 Mm Illumination: 0 ~ 100,000 LUX

    Industrial Barcode Scanner Linear Image Sensor 30% Print Contrast Signal​





    Features

    1. Red light resource technology and unique red light solution

    2. Embedded in assembly line with rugged box

    3. Better drop-resistance

    4. Supporting RS232/ USB interface

    5. Faster speed 300times/second

    6. Flicking Scanning and Auto Scanning and Continuous Scanning with high sensitivity

    7. Self-service embedded

    8. Supporting customization

    9. Red light 1D CCD barcode scanner module

    10. Waterproof, strong light resistance and dust resistance with industrial encapsulates



    The LV1000R 1D barcode scanner module is an compact and lightweight linear CCD scanning module which offers superior 1D barcode scanning. Idea for OEM application from various kiosk solution to point of sales (POS) which is limited counter space requirement. The clear aiming frame enables users to visually see the area that is to be captured.



    Applications

    The LV1000R 1D barcode scanner module can applied to Supermarket, Retail, Healthcare, Logistics, Postal Communication, Government, Clothing industry, Power Industry, Hospital, Bookstore and do on.

    LV1000R's superior performance, excellent reading ability, makes your work moreconvenient and flexible.



    Technical Specifications of LV1000R 1D Barcode Scan Engine

    Performance
    Image Sensor Linear imager
    Resolution 2500
    Interface type RS232, USB 1.1
    Symbologies Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1Databar,etc.
    Precision ≥ 5mil( Condition: PCS=0.9, testing code: Code 39)
    Depth of Scan Field 40mm-430mm
    Print Contrast Signal ≥ 30%
    Sensitivity** Pitch ±65°@ 0°Roll and 0° Skew
    Roll ±30°@ 0°Pitch and 0° Skew
    Skew ±60°@ 0°Roll and 0° Pitch
    Illumination 0 ~ 100,000 LUX
    Light Source LED(622 nm - 628 nm)
    Light Intensity 265 LUX (130 mm )
    Mechanical/ Electrical
    Power Consumption 1.25W
    Voltage DC 5 V
    Current Max 250 mA
    Working 170mA
    Idle 65mA
    Dimensions 49.0 *37.0 * 26.0 mm
    Weight 70 g
    Environment
    Operate Temperature -5°C - +45°C
    Storage Temperature -40°C - +60°C
    Humidity 5% - 95% (non-condensing)

    Industrial Barcode Scanner Linear Image Sensor 30% Print Contrast Signal

    Note:

    The scan window must be kept clean. Improper maintenance will breach the limited warranty.

    Avoid rough objects not to damage or scratch the window.

    Use brush to remove the stain.

    Use soft cloth (cloth for glasses) to clean.

    Prohibit spraying towards the window.

    Only use clean water as a cleanser.



    Barcode Scanner FAQ



    Q1: Can I get some samples? are they free?

    A1: Of course, but samples are not free.

    Q2: What's the delivery time?

    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.

    Q3: What about payment?

    A3: Payment terms: T/T,West Union and L/C etc.

    Q4: Can you list the product of your company?

    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.

    Q5: What's the OS of the POS?

    A5: Android and Windows,details please refer to the technical data of the Product.

    Q6: Where can we download the SDK/user manual for some of your products?

    A6: SDK/User manual will be sent to you by email after the sample order.

    Q7: Warranty time?

    A7: 1 year

    Q8: Do you provide Evaluation Kit for testing barcode scanner module?

    A8: Yes, but you need to pay for EVK separately.

    Q9: Product OEM?

    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.

    Q10: Customer service?

    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
