Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating

Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating

    • Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating
    • Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating
    • Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating
    • Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating
    • Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating
  • Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating

    Product Details:

    Place of Origin: China
    Brand Name: Rakinda
    Certification: CE FCC Rohs
    Model Number: LV4200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiation
    Packaging Details: carton package
    Delivery Time: 1-5 Working days
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Model: LV4200 Feature: Scanning Phone Screen Code
    Application: Embedded Type Weight: 41.5g
    Interface: USB Or TTL 232 Operating Voltage: 3.0 To 5.5 VDC

    Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating



    Rakinda is initially established in 2000. We have been deveoped to the development of barcode scanning technology to provide customers good quality barcode scanners at a affordable price. With the development and application of barcode scanners, barcode scanning technology has been playing a more and more important role both in industrial circle and people's daily life.



    For example, people are used to wait in queue to buy a ticket. Now kiosk with barcode scanner embedded makes the auto ticketing machine possible. The below is a lottery auto vending kiosk:

    LV4200_Datasheet_en.pdf

    Auto Scanner Area Imaging 2D Barcode Module Capture On Screen Code 160mA Operating



    With this kiosk, people can buy lottery through QR code paypment by themselves on a street. This also proves that QR code payment changes people's daily life. It bings revolutionary changes to people's consumptive habits.

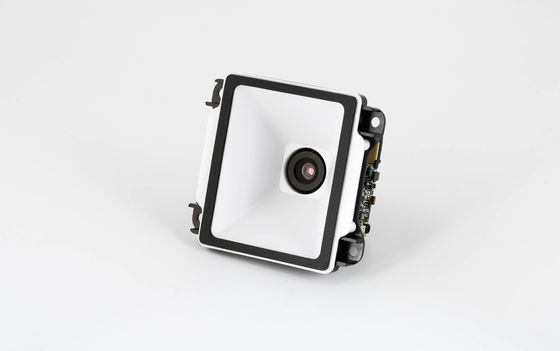

    This lottery kiosk uses Rakinda LV4200 2D barcode scanner module. LV4200 area imaging scanner is good at scanning mobile phone screen code. After it is set to auto sense mode, as long as a phone screen code is presented, it will sense it and scan it automatically. Even at night when environment is dark, with its white LED light source, it can do the same work. It works day and night without fail.

    LV4200 scanner uses white color background, which also makes it speical. For in most cases, fixed mounted scanners are black color. White color is more eyecatching for users.



    LV4200 scanner supports USB and TTL-232 interfaces to meet diverse customer needs and it also guarantees easy integration with multiple interfaces.



    LV4200 Scanner Paramters

    Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,
    050, 080, 100, 140)
      1D Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,
    UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,
    Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,
    Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited,
    RSS-Expand)

    Scan Angle



    Roll: 360°, Pitch: ±40°, Skew: ±40°
    Field of View Horizontal 80°, Vertical 56°
    Current at 5 VDC  Operating 160mA
      Sleep 12mA
    Operating Temperature -20℃~+60℃ (-4°F~140°F)
    Storage Temperature -40℃~+80℃(-40°F~176°F)
    Humidity 5%~95% (non-condensing)
    Ambient Light 0~100000lux (natural light)

    Test conditions: Code 39; 3 Bytes; Resolution=10mil; W:N=3:1; PCS=0.8; Barcode Height=11mm; Scan Distance=120mm; T=23℃; Illumination=300lux.



    Rakinda is a prestigious high-tech company specializing in designing, developing and manufacturing barcode scan instruments including OEM barcode scan engine, desktop barcode scanner, handheld barcode scanners, cordless barcode scanners, image platform, android data terminal, etc. The application domains are manufacturing, retailing, postage, logistic and medical services, etc.


    FAQ
    Q1: Can I get some samples? Are they free?
    A1: We support 1pc sample order. Samples should be paid.
    Q2: Can I get extra cables for the scanners?
    A2: Yes you can. We will provide according to your request.
    Q3: How can I buy?
    A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
    Q4: What is your payment method?
    A4: We accept online credit card, TT, Paypal, Western Union.
    Q5: Can I visit your factory:
    A5: Yes, you are warmly welcome.
    Q6: How long is your warranty time:
    A6: 1 Year.
    Q7: Where can we download the user manual of the scanners?
    A7: We will send by email after you get samples.
    Q8: What's the lead time?
    A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
    Q9: Can you provide OEM service?
    A9: Yes. We need further discuss about details.
    Q10: How do you ship the scanners usually?
    A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
