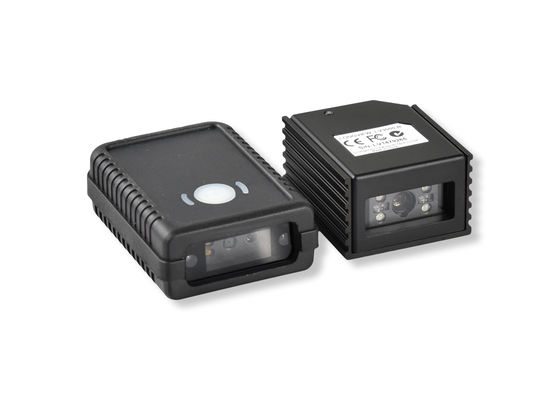

2D Barcode Module 5.15 uA Sleep Current LV3096R for Reading Ticket

2D Barcode Module 5.15 uA Sleep Current LV3096R for Reading Ticket

    • 2D Barcode Module 5.15 uA Sleep Current LV3096R for Reading Ticket
    • 2D Barcode Module 5.15 uA Sleep Current LV3096R for Reading Ticket
  • 2D Barcode Module 5.15 uA Sleep Current LV3096R for Reading Ticket

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: LV3096R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Product Name: USB Barcode Scanner Module Operating Voltage: 5V DC
    Weight: 80g Scan Element Type: CMOS
    Dimensions: 69.46(L)×48.11(W)×22.15(H)mm Style: 2D Scan Engine
    Symbologies: 1D/ 2D Ambient Light: 0 ~ 100000 Lux (natural Light)

    2D Barcode Module 5.15 uA Sleep Current LV3096R for Reading Ticket​



    Features:

    1. 2D Barcode Decoder Chip: The LV3096R barcode scanner module armed with the state-of-the-art 2D barcode decoder chip invented by Rakinda demonstrates high scanning performance.

    2. Two-In-One Design: Seamless integration of CMOS image sensor and decoder board makes the engine small size, lightweight and easy for integration.

    3. High Performance & Ultra-Low PowerConsumption: The module can read 1D and 2D barcodes with a low power consumption only one third that of a traditional engine.

    4. All-Round Scanning Capability: It can read barcodes on series of medium - paper, plastic cards, mobile phones and LCD displays.



    It can be both external scanner in assembly line, or as built-in scanner for various devices such as kiosk, ticket validators, etc.



    Technical Specifications of LV3096R 2D Code Scan Engine

    Product name 2D Scan Engine
    Item number LV3096R
    Processor IOTC 2D decoder chip 48MHz
    Interface RS232/ USB
    Image Sensor 752× 480 CMOS
    Symbologies 2D: PDF417, Data Matrix, QR Code
    1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
    ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
    Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
    Reading Precision ≥ 5mil
    Depth of Field*

    EAN13 (13mil) 55mm - 185mm;

    Code 39 (5mil) 55mm - 100mm;

    PDF 417 (6.67mil) 40mm - 130mm;

    Data Matrix (10mil) 40mm - 135mm;

    QR Code (15mil) 40mm - 160mm

    Symbol Contrast ≥ 30% reflectance difference
    Scan Angle**

    Roll: 360°

    Pitch: ±55°

    Skew: ±55°

    Field of View Horizontal 36°; Vertical 23°
    Ambient Light 0 ~ 100,000 LUX (natural light)
    Rated Power Consumption 0.79W
    Operating Voltage 5VDC
    Dimensions 69.46(L)*48.11(W)*22.15(H)mm
    Current @ 5 VDC

    Operating Current 240 mA;

    Sleep Current <5.15 uA

    Weight 80g
    Operating Temperature -20 ℃ to + 60 ℃
    Storage Temperature -40 ℃ to + 80 ℃
    Humidity 5% - 95% ( non-condensing )
    Certification FCC Part15 Class B, CE EMC Class B

    2D Barcode Module 5.15 uA Sleep Current LV3096R for Reading Ticket

    Aimer

    The LV3096R has a view finder that produces a solid circle-shaped aiming pattern to help the user to easily position the target barcode within the engine’s field of view to increase scan efficiency. The aiming pattern can be turned On or Off. It is advisable to turn it on when scanning barcodes.



    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
