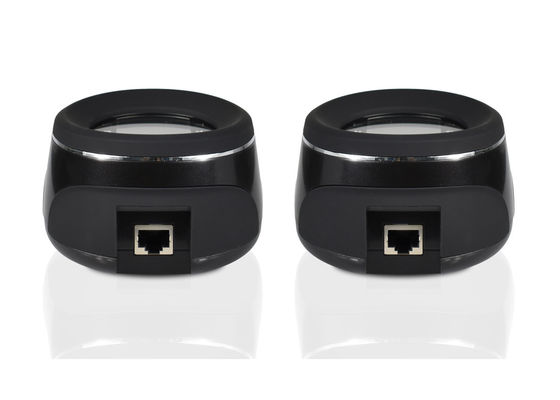

Raspberry Pi Barcode Scanner Module Barcode Scan Engine Reading Phone Screen

Raspberry Pi Barcode Scanner Module Barcode Scan Engine Reading Phone Screen

    • Raspberry Pi Barcode Scanner Module Barcode Scan Engine Reading Phone Screen
    • Raspberry Pi Barcode Scanner Module Barcode Scan Engine Reading Phone Screen
  • Raspberry Pi Barcode Scanner Module Barcode Scan Engine Reading Phone Screen

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: RD4100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Item Name: 2D Code Scanner Module Style: Scanner Module Read Phone Screen
    Scan Speed: 100 Scans/sec Weight: 300g
    Ambient Light: 0 ~ 100,000 LUX Dimensions: 90mm(Diameter) X 60mm(H)
    Power Adapter: Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz Notification: Beep

                Raspberry Pi Barcode Scanner Module Barcode Scan Engine Reading Phone Screen



    WHAT IS A 2D BARCODE SCANNER?

    2D barcodes are essential recognition technology used in mobile marketing. The barcode symbol associates an object with digital content. This type of association is used in many facets of advertising. These barcodes are featured on signs, websites, packaging, flyers, and clothing. When people scan these codes with their smartphones, they instantly see a company’s campaign content, including anything from a product video to a mobile site. 2D barcodes are scanned using three primary scan engines: laser, 2D area imager, and linear imager. These methods are employed in mobile computers and barcode scanners and tailored to specific environments and industries.



    Technical Specifications of RD4100 2D Code Scanner Module

    Product name Desktop 2D Barcode Scanner
    Item number RD4100
    Processor IOTC 0370 CHIP
    Interface RS-232 (9.6~115.2Kbps); USB 1.1 ( HID-KBW, HID-POS )
    Image Sensor 752× 480 CMOS
    Symbologies 2D: PDF417, Data Matrix, QR Code
    1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
    Codabar, Code 128, Code 93, ITF-6, ITF-14,
    Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
    Matrix 2 of 5, GS1 Databar (RSS-Expand,
    RSS-Limited, RSS-14), Code 39, Code 11,
    MSI-Plessey, Plessey
    Scan Mode Sense mode
    Resolution 10mil
    Light Source White LED
    Scan Window 38.3mm*60.4mm
    PCS ≥ 30%
    FOV Diagonal: 85°, Horizontal: 63.7° , Vertical: 70°
    Ambient Light 0 ~ 100,000 LUX
    Power Consumption 1.75W (max.)
    Power Adapter Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz
    Notification Beep
    Dimensions 90mm(Diameter) x 60mm(H)
    Weight 300g
    Operating Temperature -10 ℃ to + 50 ℃
    Storage Temperature -20 ℃ to + 60 ℃
    Humidity 5% - 95% ( non-condensing )
    Certification FCC Part15 Class B, CE EMC Class B

    Raspberry Pi Barcode Scanner Module Barcode Scan Engine Reading Phone ScreenRaspberry Pi Barcode Scanner Module Barcode Scan Engine Reading Phone ScreenRaspberry Pi Barcode Scanner Module Barcode Scan Engine Reading Phone Screen

    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
