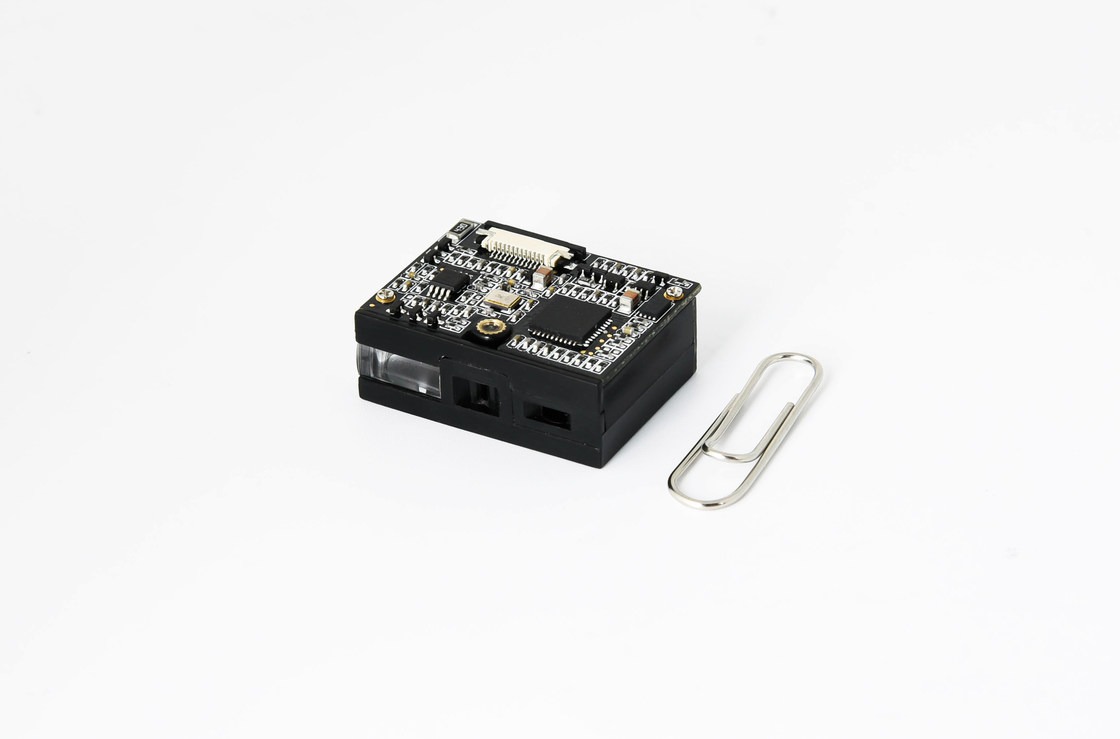

0.33W Mini TTL232 CCD Barcode Reader Scanner LED Light Source

0.33W Mini TTL232 CCD Barcode Reader Scanner LED Light Source

0.33W Mini TTL232 CCD Barcode Reader Scanner LED Light Source

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: LV1365

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: package in carton;
Delivery Time: 3-10 working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 piece for a week
Contact Now
Detailed Product Description
Name: Barcode Reader Imagin Sensor: Linear Imager
Reading Precision: ≥ 4mil Package: Carton
Module: LV1365 1D Bar Code Scanner Resolution: 1500

0.33W Mini TTL232 CCD Barcode Reader Scanner LED Light Source

BAR CODE READER ABSTRACT OF THE DISCLOSURE:In a bar code reader, a field of view which includes a symbol to be read is imaged upon a light-responsive array such as a CCD imager device. The output of this array is transferred to a memory array to provide a bit-mapped type of binary representation of the image including the symbol. The memory is scanned (instead of the field of view itself being mechanically scanned) to recognize and decode the symbol. Because the angular orientation of the symbol is variable, this binary representation may be interpreted to determine how the memory array is to be scanned to recognize the bar code symbol.



Model LV1365
Interface TTL232
Scan Rate Up to 300 scans/sec
Image Sensor Linear imager
Decode Rate 200 scans/sec
Resolution 1500
Light Source LED (610nm ~ 640nm)
Ambient Light 0 ~ 100,000 LUX
Depth of scan field 40mm-430mm
Print Contrast Signal ≥30%
Power Consumption 0.33W(max)
Notification Beep
Dimensions 28.2L×23.4W×11.2Hmm
Weight 6g
Operating Temperature -20°C - +60°C
Humidity 5% - 95% (non-condensing)
Certificates FCC Part15 Class B, CE EMC Class B







0.33W Mini TTL232 CCD Barcode Reader Scanner LED Light Source



Features:

1.Two-In-One Design: Seamless integration of imager and decoder board makes the scan engine small, lightweight and easy for integration.

2. Superior performance: The scan engine delivers fast and accurate reading of 1D barcodes.

3.Low power consumption: The scan engine provides an optimal solution for battery-operated equipments and mobile devices.

4.Easy to use: Simple parameter configuration.

5.With high quality and competitive price
