Phone Screen 2D Arduino Barcode Scanner Module Fixed Mount for ATM

Phone Screen 2D Arduino Barcode Scanner Module Fixed Mount for ATM

    • Phone Screen 2D Arduino Barcode Scanner Module Fixed Mount for ATM
    • Phone Screen 2D Arduino Barcode Scanner Module Fixed Mount for ATM
  • Phone Screen 2D Arduino Barcode Scanner Module Fixed Mount for ATM

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: RD4500I

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation

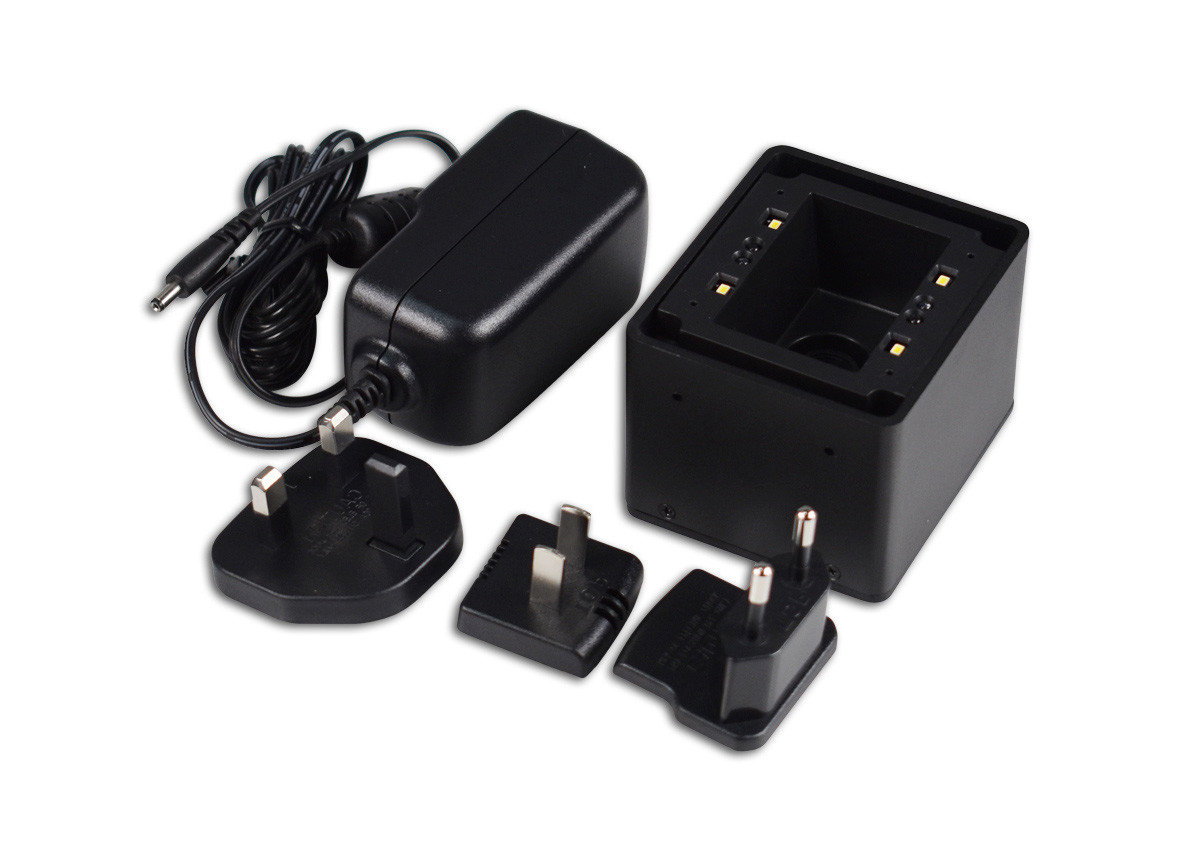

    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Item Name: Phone QR Barcode Reader Scan Element Type: 752× 480 CMOS
    Type: Phone Screen Barcode Scanner Module Wireless: None
    Symbologies: 1D/ 2D ( PDF417, Data Matrix, QR Code ) Size: 71mm(L) X 61mm (W) X 50mm(H)
    Humidity: 5% - 95% ( Non-condensing ) Color: Black

                      Phone Screen 2D Arduino Barcode Scanner Module Fixed Mount for ATM



    Bar codes are increasingly popular as a way to link mobile users with in-store product information or campaign-related content from a poster or print ad. However, bar codes are also increasingly being used to enable mobile payments, often giving merchants and consumers a quicker and easier path to mcommerce than near-field communications.



    Probably the best example of how powerful bar codes can be in terms of enabling mobile payments is the Starbucks Card Mobile app, which has reportedly processed 42 million payments via mobile bar codes that are delivered to the app and scanned at retail. PayPal is also testing a new app in Britain that enables users to make purchases via a unique bar code linked to their account.



    The RD4500I barcode scanner module is used for mobile payment on screen with excellent performance and swift scanning even if in poor light.



    Technical Specifications of RD4500I Phone QR Barcode Reader

    Performance
    Processor IOTC 0370 CHIP
    Image Sensor 752×480 CMOS
    Interface RS-232/ USB
    Symbologies 2D PDF417, Data Matrix, QR Code
    1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
    Scan Mode Sense mode
    Precision 10mil
    Light Source White LED
    Scan Window 38.3mm×60.4mm
    PCS ≥30%
    FOV Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°
    Mechanical/Electrical
    Power Consumption 1.75W (max.)
    Notification Beep
    Dimensions (L x W x H) 71×61×50mm
    Weight 280g
    Environmental
    Operating Temperature -10°C - +50°C
    Storage Temperature -20°C - +60°C
    Humidity 5% - 95% (non-condensing)
    Ambient Light 0 ~ 100,000 LUX
    Certifications
    FCC Part15 Class B, CE EMC Class B

    Phone Screen 2D Arduino Barcode Scanner Module Fixed Mount for ATM

    QR Codes can be of two main categories

    The QR Code is presented on the mobile device of the person paying and scanned by a POS or another mobile device of the payee.

    The QR Code is presented by the payee, in a static or one time generated fashion and it's scanned by the person executing the payment.

    Mobile self-checkout allows for one to scan a QR code or barcode of a product inside a brick-and-mortar establishment in order to purchase the product on the spot. This theoretically eliminates reduces the incidence of long checkout lines, even at self-checkout kiosks.



    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
