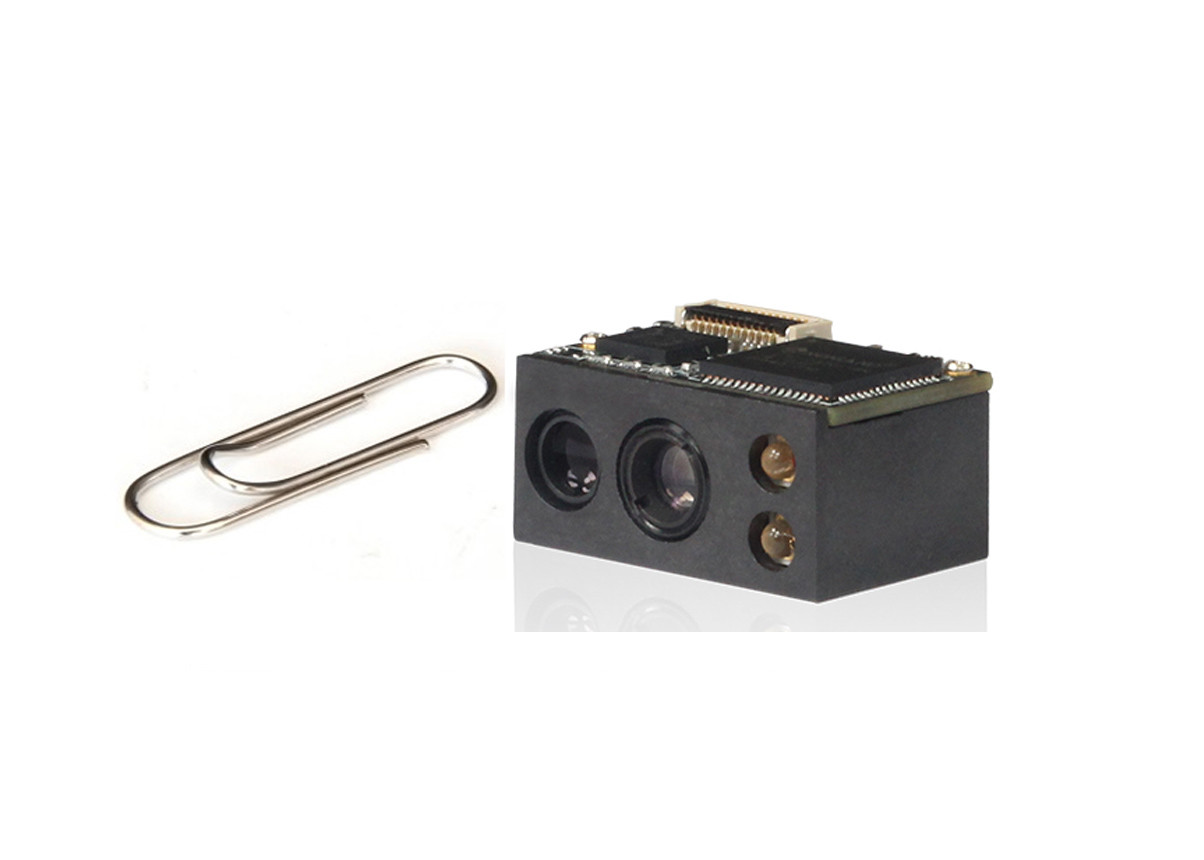

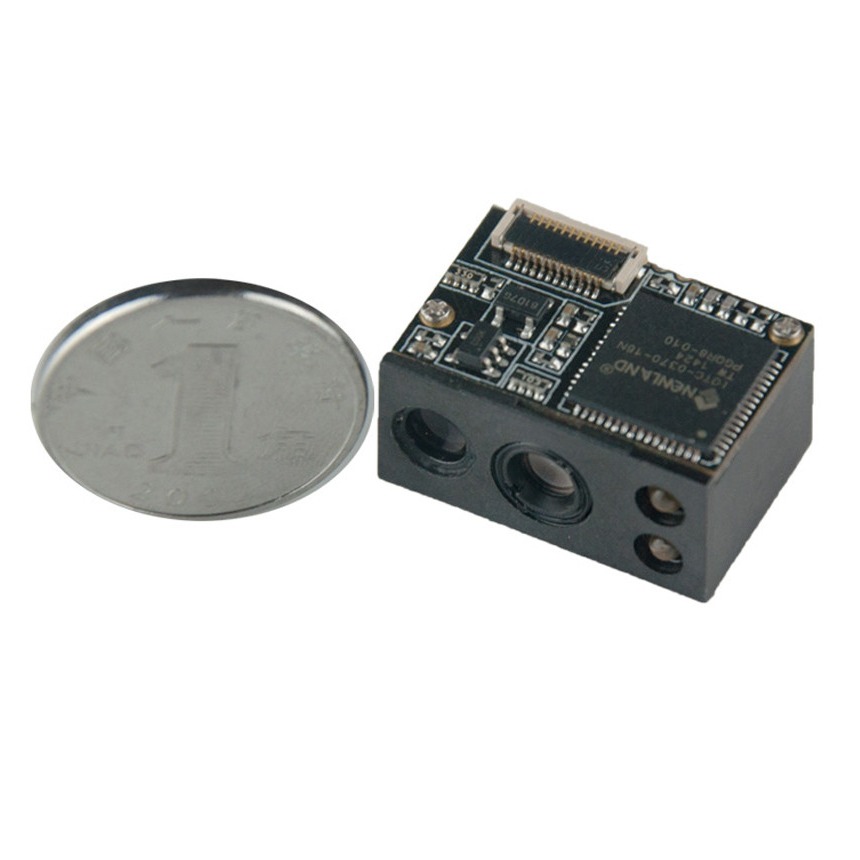

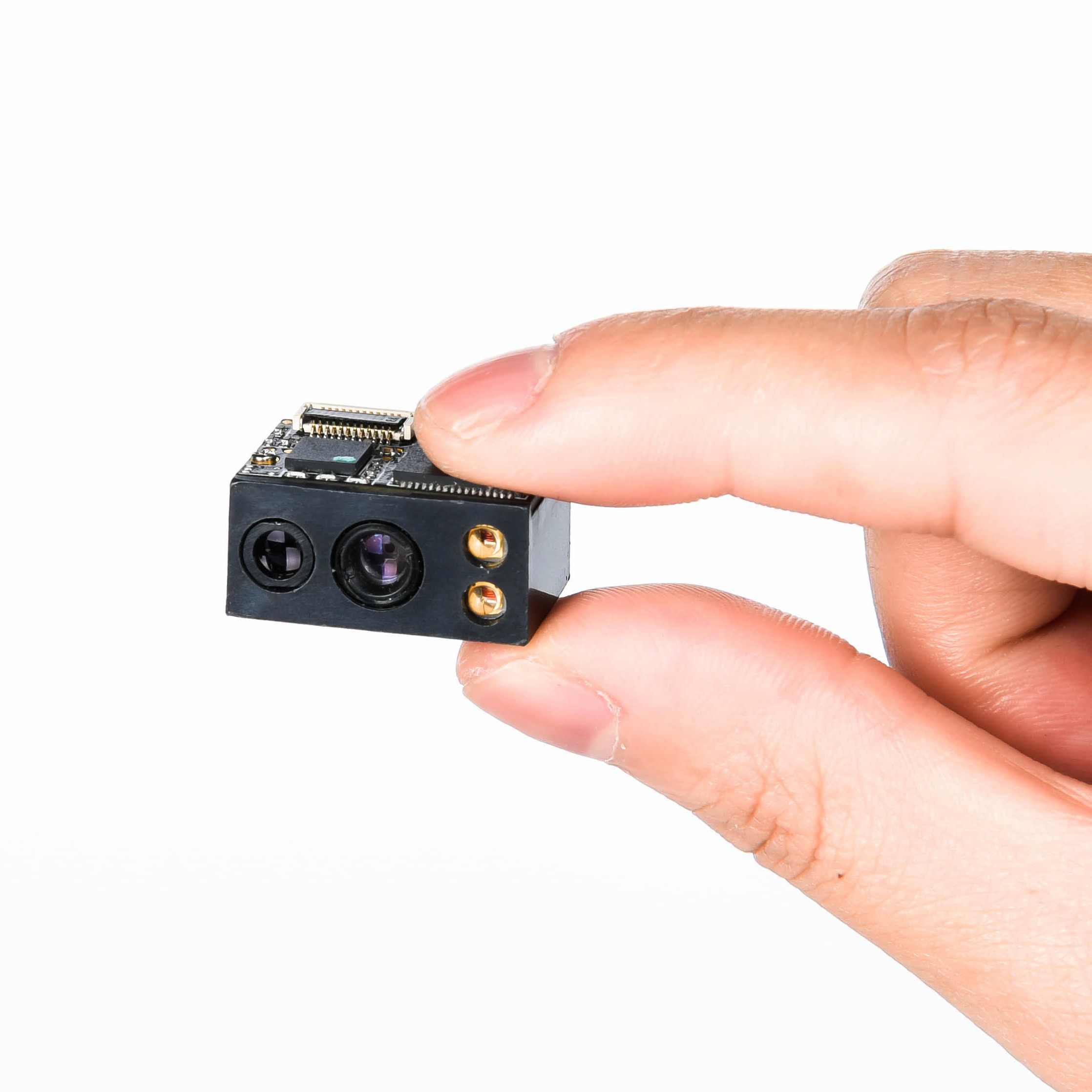

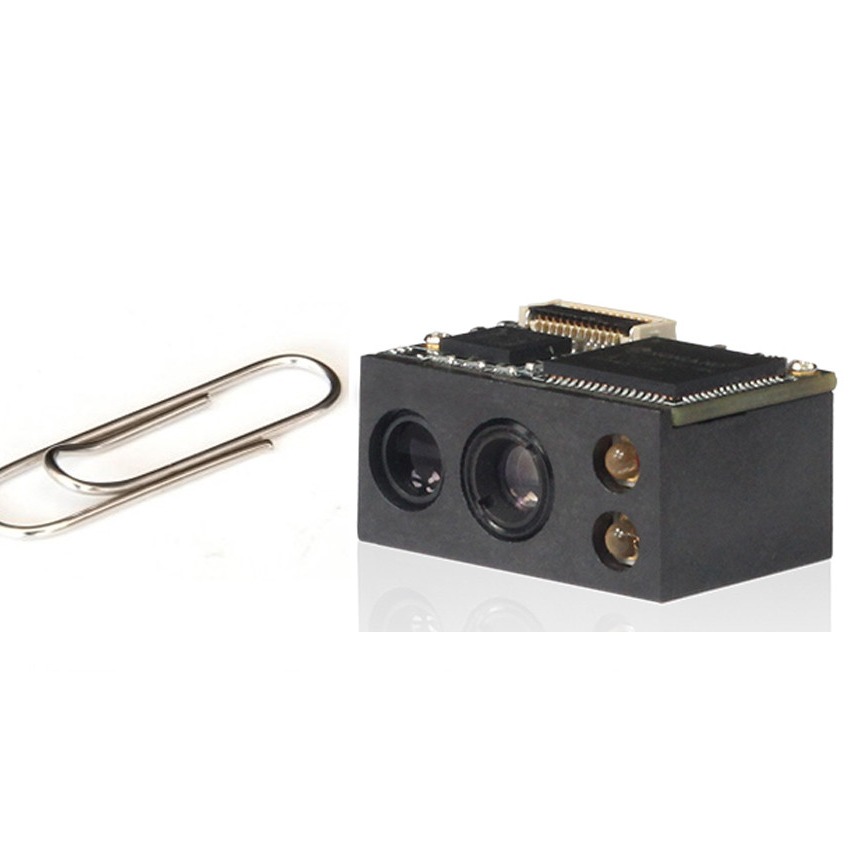

CE FCC Data Matrix 2D Barcode Scan Engine 5% - 95% Humidity LV3096

CE FCC Data Matrix 2D Barcode Scan Engine 5% - 95% Humidity LV3096

    • CE FCC Data Matrix 2D Barcode Scan Engine 5% - 95% Humidity LV3096
    • CE FCC Data Matrix 2D Barcode Scan Engine 5% - 95% Humidity LV3096
    • CE FCC Data Matrix 2D Barcode Scan Engine 5% - 95% Humidity LV3096
  • CE FCC Data Matrix 2D Barcode Scan Engine 5% - 95% Humidity LV3096

    Product Details:

    Place of Origin: China
    Brand Name: Rakinda
    Certification: CE, FCC, Rohs
    Model Number: LV3096

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiation
    Packaging Details: carton package
    Delivery Time: 1-3 Working days
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Model: LV3096 2D Barcode Reader Module Light Source: Red LED
    Code: 1D And 2D Codes Sensor: CMOS
    Communication: 12pin Ttl 232 Lead Time: 1-7 Working Days

    CE FCC Data Matrix 2D Barcode Scan Engine 5% - 95% Humidity LV3096​



    Concerning LV3096 2D barcode reader module, you may want to know the following details:

    1. Do you have the software I can load to enter the scanned information? No software utilities are required. The scanner output emulates a keyboard and is independent of the operating system and application

    2. Can the scanner plug in to my PDA or phone? LV3096 2D scanner is embedded type. It will connect to the PCB inside your PDA or phone through ttl 232 flex cable.

    3. Will the scanners read the PDF417 code on the driver’s license? Yes. Test shows LV3096 scanner is good at scanning PDF417 on driver's license.

    4. I have heard the term 3D barcodes, what are they? There are no 3D codes at present. People who refer to 3D usual ly mean 2D barcodes as they have mixed up the terms.

    5. What is the advantage 2D barcodes over linear or 1D barcodes? 2D barcodes offer the ability to encode more characters in a smaller space. In a 1D code, the length grows as more characters are added. There is a practical limit to the length of a linear barcode based on the field of view of the barcode scanner. This limitation could be 25 characters depending on the barcode type and print density. By comparison, a 2D data matrix barcode 0.25” x 0.25” can hold 50 characters or more.



    Manufacturer Rakinda is established in 2000. Since then, we are devoted to the barcode scanning industry and we have been providing products and services for many fields. We provide a diverse product line. Pls kindly contact us for more details.



    LV3096-Datasheet.pdf

    LV3096 Scanner Datasheet:

    Image Sensor 752*480 CMOS
    Code: 2D: pdf417, qr code, data matrix
    1D: EAN-13, EAN-8, UPC-A, UPC-E,ISSN, ISBN, Codabar, code 128, code 93, itf-6, itf-16, interleaved 2 of 5, industrial 2 of 5, standard 2 of 5, matrix 2 of 5, gs1 databard, code 39, code 11, msi-plessey, plessey
    Resolution >= 5mil
    Weight 5g
    Operating Current 230mA
    Standby Current 4mA
    Power Consumption 0.76W
    EVK Available
    Operating Voltage 3.3V DC
    Humidity 5%-95%



    LV3096 Scanner Module embedded in handheld back clip:

    CE FCC Data Matrix 2D Barcode Scan Engine 5% - 95% Humidity LV3096





    FAQ

    Q1: Can I get some samples? Are they free?

    A1: We support 1pc sample order. Samples should be paid.

    Q2: Can I get extra cables for the scanners?

    A2: Yes you can. We will provide according to your request.

    Q3: How can I buy?

    A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.

    Q4: What is your payment method?

    A4: We accept online credit card, TT, Paypal, Western Union.

    Q5: Can I visit your factory:

    A5: Yes, you are warmly welcome.

    Q6: How long is your warranty time:

    A6: 1 Year.

    Q7: Where can we download the user manual of the scanners?

    A7: We will send by email after you get samples.

    Q8: What's the lead time?

    A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.

    Q9: Can you provide OEM service?

    A9: Yes. We need further discuss about details.

    Q10: How do you ship the scanners usually?

    A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
