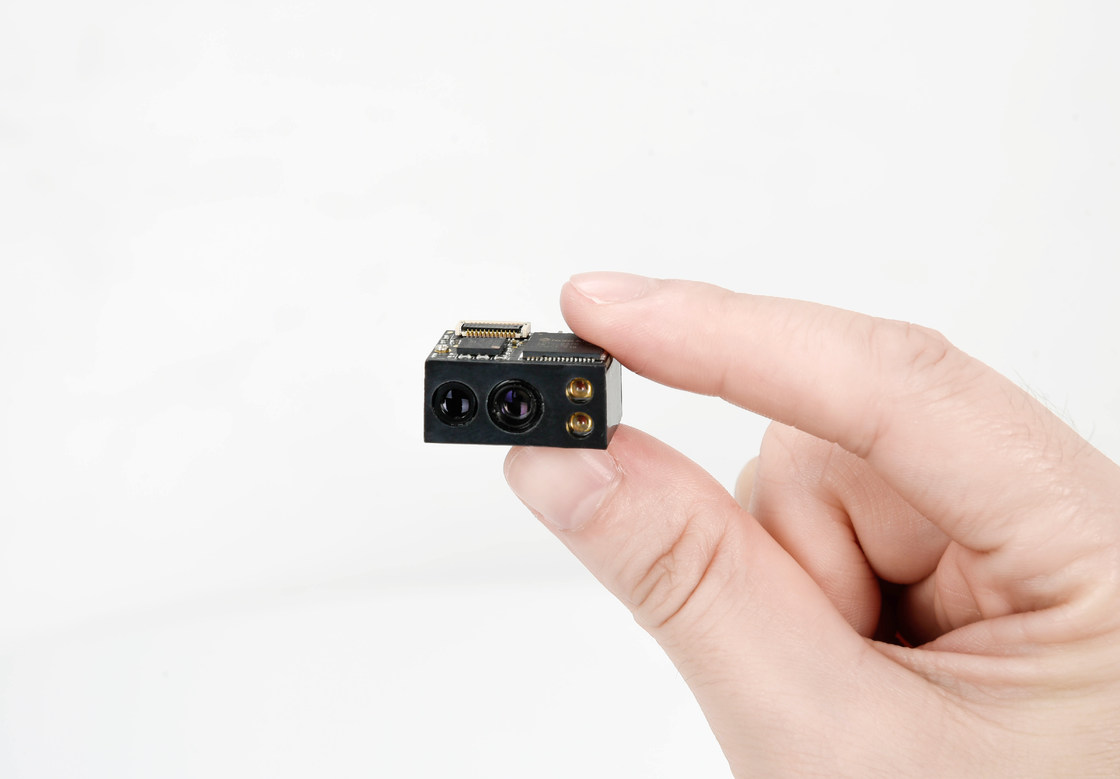

USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096

USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096

    • USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096
    • USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096
    • USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096
    • USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096
    • USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096
  • USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096

    Product Details:

    Place of Origin: China
    Brand Name: Rakinda
    Certification: CE, FCC, Rohs
    Model Number: LV3096

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiation
    Packaging Details: carton package
    Delivery Time: 5-8 Working days
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Model: LV3096 2D Barcode Scanner Module Interface: TTL 232 Or USB (optional)
    Weight: 5g Power Consumption: 0.76 W
    Operating Voltage: 3.3 VDC Operating Current: 230mA

    USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096



    Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment. (Seamlessly compatible with SE955 1D scan engine)

    The LV3096 2D Long Range Scanner Module provides high performance and long range 1D and 2D barcode scanning. This scanner module ensures that users of the handheld computer can still maintain comfortable one-handed use for an entire shift without muscle fatigue. The scanner module can be installed with ease. The LV3096 1D 2D Barcode Scanner Module supports the following Symbologies: QR Code, PDF417, data matrix, UPC/EAN, Code 128, Code 39, Code 93, I 2 of 5, Discrete 2 of 5, Codabar, MSI UCC/EAN 128.



    LV3096-Datasheet.pdf

    When your products need to capture 1D and 2D barcodes, LV3096 2D scan engine delivers the same high-quality performance that drives our continued leadership in the barcode scanning industry — all in a very affordable package. You get first-time every-time scanning of even damaged and poorly printed barcodes; the ability to read barcodes that are printed on paper labels or displayed on the screen of a mobile phone or computer; and the rapid image scanning speed that improves worker productivity and the customer experience. With the LV3096 scan engine, you can create products that will make a difference for your customers — and their customers.



    If you want gun type 2D scanner or fixed moun 2D barcode scanner, these products are also available with LV3096 scanner inside. If you need such scanners, pls kindly contact us!



    Manufacturer Rakinda is established in 2000. Since then, we are devoted to the barcode scanning industry and we have been providing products and services for many fields. We provide a diverse product line. Pls kindly contact us for more details.



    LV3096 Scanner Datasheet:

    Image Sensor 752*480 CMOS
    Code: 2D: pdf417, qr code, data matrix
    1D: EAN-13, EAN-8, UPC-A, UPC-E,ISSN, ISBN, Codabar, code 128, code 93, itf-6, itf-16, interleaved 2 of 5, industrial 2 of 5, standard 2 of 5, matrix 2 of 5, gs1 databard, code 39, code 11, msi-plessey, plessey
    Resolution >= 5mil
    Weight 5g
    Operating Current 230mA
    Standby Current 4mA
    Power Consumption 0.76W
    EVK Available
    Operating Voltage 3.3V DC
    Humidity 5%-95%



    LV3096 Scanner Pin Info:

    USB Interface 2D Barcode Scanner Module 0.76W 5Mil Resolution LV3096

    FAQ

    Q1: Can I get some samples? Are they free?

    A1: We support 1pc sample order. Samples should be paid.

    Q2: Can I get extra cables for the scanners?

    A2: Yes you can. We will provide according to your request.

    Q3: How can I buy?

    A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.

    Q4: What is your payment method?

    A4: We accept online credit card, TT, Paypal, Western Union.

    Q5: Can I visit your factory:

    A5: Yes, you are warmly welcome.

    Q6: How long is your warranty time:

    A6: 1 Year.

    Q7: Where can we download the user manual of the scanners?

    A7: We will send by email after you get samples.

    Q8: What's the lead time?

    A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.

    Q9: Can you provide OEM service?

    A9: Yes. We need further discuss about details.

    Q10: How do you ship the scanners usually?

    A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
