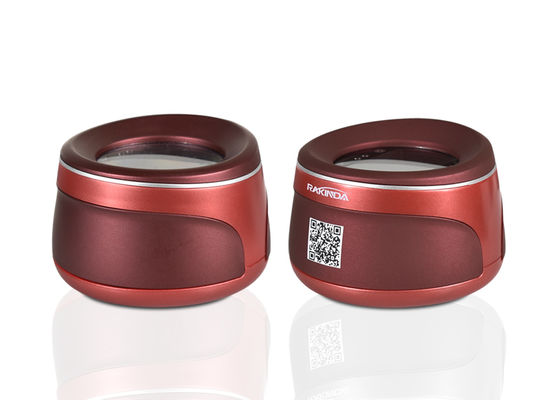

Round Desktop Barcode Scanner RS232 CMOS PDF417 Barcode Reader Scanner

Round Desktop Barcode Scanner RS232 CMOS PDF417 Barcode Reader Scanner

Round Desktop Barcode Scanner RS232 CMOS PDF417 Barcode Reader Scanner

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: RD4100

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: package in carton;
Delivery Time: 3-10 working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 piece for a week
Contact Now
Detailed Product Description
Name: Desktop Barcode Scanner Dimensions: 90mm(Diameter) X 60mm(H)
Interface: RS232 Shape: Round Ball

Round Desktop Barcode Scanner RS232 CMOS PDF417 Barcode Reader Scanner​



Troubleshooting

If the scanner does not work properly, please check it by this way:

1. Check the data cable is properly connected with the host, including whether the data cable is firmly connected and whether it is the original data cable.

2. If it is to read the phone screen bar code, please check if the phone screen backlight is turn on; if it is paper bar code, please check if the bar code label quality is good; the scanner may not be able to read the fold stained barcodes.

3. Check whether the barcode to be read is enabled; if not, please set it to enable to read the barcode type.

Designed primarily for such applications as electronic tickets/coupons, mobile marketing and office automation, the RD4100 series desktop 1D/2D barcode scanner is able to read barcodes from paper and mobile phones.


Round Desktop Barcode Scanner RS232 CMOS PDF417 Barcode Reader Scanner



Processor IOTC 0370 CHIP
Interface RS-232 (9.6~115.2Kbps)
USB 1.1(HID-KBW, HID-POS)

Image Sensor 752× 480 CMOS
  2D: PDF417, Data Matrix, QR Code
  1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
  Codabar, Code 128, Code 93, ITF-6, ITF-14,
Symbologies Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
  Matrix 2 of 5, GS1 Databar (RSS-Expand,
  RSS-Limited, RSS-14), Code 39, Code 11,
  MSI-Plessey, Plessey
Scan Mode Sense mode
Resolution 10 mil
Light Source White LED
Scan Window 38.3mm*60.4mm
PCS ≥30%
FOV Diagonal: 85°, Horizontal: 63.7° , Vertical: 70°
Ambient Light 0 ~ 100,000 LUX
Power Consumption 1.75W (max.)
Power Adapter Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz
Notification Beep
Dimensions 90mm(Diameter) x 60mm(H)
Weight 300g
Operating Temperature -10℃ to + 50 ℃
Storage Temperature -20℃ to + 60 ℃
Humidity 5% - 95%(non-condensing)
Certification FCC Part15 Class B, CE EMC Class B



1.All products we sold out has a warranty.as for different product,warranty differs too.Please contact us for details.

2.Price is for reference only, forbulk ordering, please contact us for more favorable price.

3.All products of our store are brand new and original quality products.We commit that one false,ten compensation.

4.Plain invoice and valued added tax invoice can be provide for you. If in need ,please contact us.

5.If goods were damaged during transportation,please refuse and email to us for instructions.

6.After sale service on installation or any other problem is available. Please feel free to contact us.
