5 Grams Barcode Reader Module 230 mA Operating Current Low Power Consumption

5 Grams Barcode Reader Module 230 mA Operating Current Low Power Consumption

5 Grams Barcode Reader Module 230 mA Operating Current Low Power Consumption

Product Details:

Place of Origin: China
Brand Name: RAKINDA
Certification: FCC,CE,Rosh
Model Number: LV3096

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: 18.5*9.5*4CM
Payment Terms: Western Union, T/T, paypal
Supply Ability: 9999 pcs per month
Contact Now
Detailed Product Description
Name: LV3096 2D CMOS Barcode Scanner Module Interface: TTL232
Size: 21.17(W)×14.6(D)×11.52(H)mm Weight: 5.0g
Image Sensor: 752×480 CMOS Processor: IOTC 2D Decoder Chip 48MHz
Illumination: Red LED 625±10 Nm Symbologies: 1D,2D[pdf417,QR Code,DM]
Reading Precision: 5mil Rated Power Consumption: 0.76W
Equipments: Data Collectors, Meter Readers, Ticket Validators And PDAs

 5 Grams Barcode Reader Module 230 mA Operating Current Low Power Consumption





1. 2D Barcode Decoder Chip: The engine armed with the state-of-the-art 2D barcode decoder chip invented by demonstrates unprecedented reading performance.


2. Two-In-One Design: Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easy for integration.


3. High Performance & Ultra-Low Power Consumption: The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.


4. All-Round Scanning Capability: It can read barcodes on virtually any medium - paper, plastic cards, mobile phones and LCD displays.

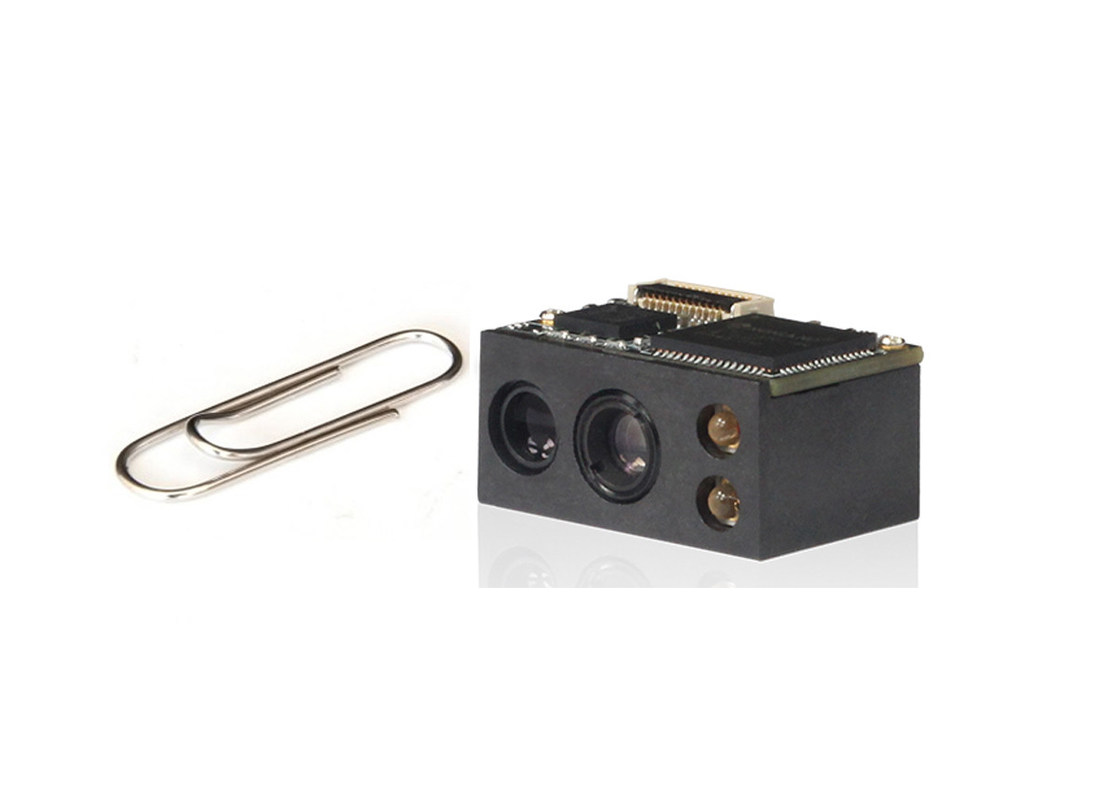

This compact engine weighs only 5 grams and fits easily into even the most space-constrained equipments such as data collectors, meter readers, ticket validators and PDAs.





LV3096 2d barcode scanner specification



Performance
Image Sensor 752×480 CMOS
Processor Newland IOTC 2D decoder chip 48MHz
Illumination Red LED 625±10 nm
Symbologies 2D PDF 417, Data Matrix(ECC200,ECC000,050,080,100,140), QR Code
1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Reading Precision ≥ 5mil
Depth of Field* EAN13 (13mil) 55mm - 185mm
Code 39 (5mil) 55mm - 100mm
PDF 417 (6.67mil) 40mm - 130mm
Data Matrix (10mil) 40mm - 135mm
QR Code (15mil) 40mm - 160mm
Symbol Contrast ≥ 30% reflectance difference
Scan Angle** Roll: 360°, Pitch: ±55°, Skew: ±55°
Field of View Horizontal 36°; Vertical 23°
Mechanical/Electrical
Interface TTL-232, USB (optional)
Rated Power Consumption 0.76 W
Operating Voltage 3.3±10% VDC
Current @ 3.3 VDC Operating Current 230 mA
Standby Current 4mA (USB communication not supported); 7mA (USB communication supported)
Sleep Current <5 uA
Dimensions 21.17(W)×14.6(D)×11.52(H)mm
Weight 5.0g
Environmental
Operating Temperature -20℃~ +60℃
Storage Temperature -40℃~ +80℃
Humidity 5% ~ 95% (non-condensing)
Ambient Light 0 ~ 100000 lux (natural light)
Certifications



The LV3096’s 2D barcode decoder chip ingeniously blends UIMG technology and advanced chip design & manufacturing, which significantly simplifies application design and delivers superior performance and solid reliability with low power consumption.



The LV3096 supports all mainstream 1D as well as PDF417, QR Code (M1/M2/Micro), Data Matrix and GS1-DataBarTM(RSS) (Limited/ Stacked/ Expanded versions).
