PDF417 Laser Scanner Module RD4500I 2d Scan Engine Fixed Mount Payment Terminal

Basic Information
Place of Origin: China
Brand Name: RAKINDA
Certification: CE,FC,ROHS
Model Number: RD4500I
Minimum Order Quantity: 1PCS
Price: Negotiate

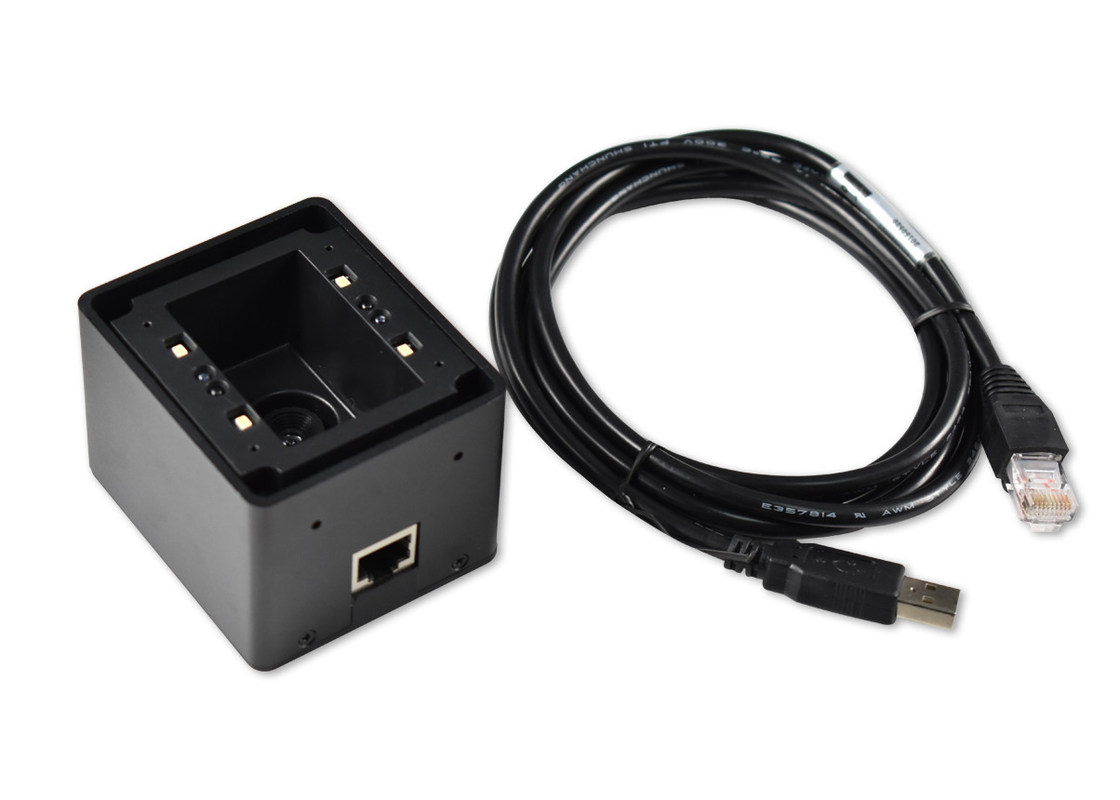

Packaging Details: A box contains a scanner and accessory USB/RS232 cable
Delivery Time: 3 to 5 days
Payment Terms: T/T, D/P,Paypal
Supply Ability: 50000pcs/Month
Type: Barcode Scanner Module Scan Element Type: CMOS
Scan Speed: 200 Scans/s Interface Type: USB, RS232
Model Number: RD4500I Novelty: New
Scanning Light Source: Natural Light+LED Size: 82mm(L) X 72mm (W) X 52mm(H)
High Light:

PDF417 Laser Scanner Module

,

RD4500I Laser Scanner Module

,

Fixed Mount Laser Scanner Module

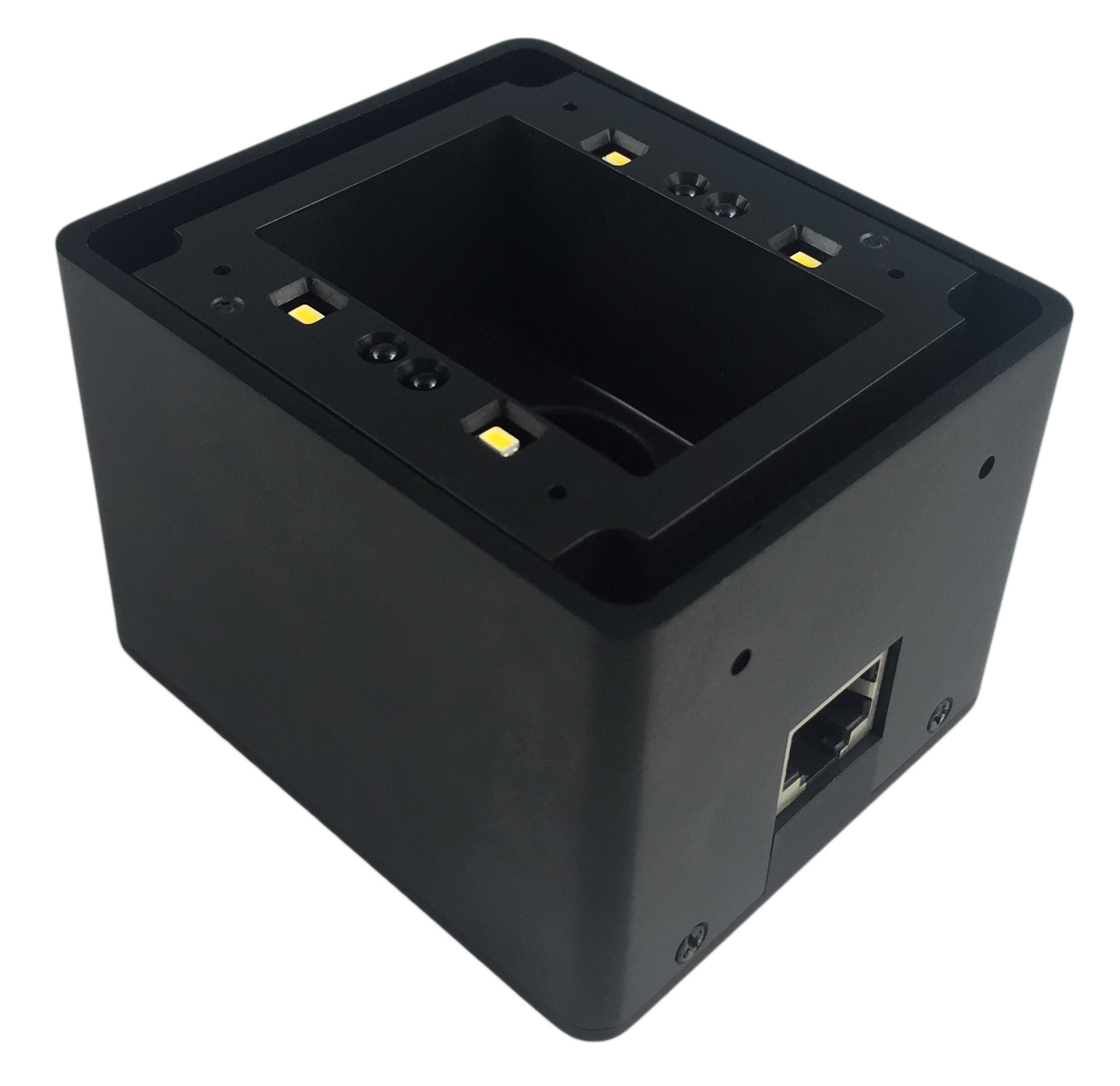

PDF417 Laser Scanner Module RD4500I 2d Scan Engine Fixed Mount Payment Terminal



Laser scanner module RD4500I 2d scan engine fixed mount payment terminal PDF417 cod 39

RD4500I 2d scanner-Specification.pdf



Feature:

The RD4500I Fixed mount 2D imager module provides a self-contained 1D and 2D barcode scanning solution, whether decoding mobile phone screens or paper. It offers many differentiating features that simplify installation (e.g., cable connector compatibility and more mounting options) and enhance performance (e.g., Wide Angle,laser aimers and illumination, enhanced scan time and print contrast, and higher operating temperature range). Its unique design simplifies installation and deployment for a wide range of kiosk applications.


Application:

Potential applications include medical diagnostic and analytical equipment; rail, airport, resort, event, car park and border control access control kiosks; lottery terminals/ticket checkers; e-voting machines; retail point-of-sale self-checkout equipment; smart lockers; banking ATMs; and in-vehicle ticket validators used in buses, subways and trains



1) Self-service kiosks and ticket vending machines
2) Access control gates & turnstiles for stadia, building access & transportation
3) Retail voucher redemption and loyalty cards
4) Car park ticket machines and automatic barriers
5) Casino and TITO gaming machines



Interface:

The RD4500I 2D fixed mount bar code reader supports USB, RS232, TTL232, RS485 and Wiegand interfaces to meet different needs.



QR Code Scanner Parameters:

Performance
Processor IOTC 0370 CHIP
Image Sensor 752×480 CMOS
Interface RS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS)
Symbologies 2D PDF417, Data Matrix, QR Code
1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Scan Mode Type Sense mode
Resolution 10mil
Light Source White LED
Scan Window 38.3mm×60.4mm
PCS ≥30%
FOV Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°
Mechanical/Electrical
Power Consumption 1.75W (max.)
Notification Beep
Size (L x W x H) 84×74×50mm
Weight 300g

PDF417 Laser Scanner Module RD4500I 2d Scan Engine Fixed Mount Payment Terminal 0PDF417 Laser Scanner Module RD4500I 2d Scan Engine Fixed Mount Payment Terminal 1PDF417 Laser Scanner Module RD4500I 2d Scan Engine Fixed Mount Payment Terminal 2PDF417 Laser Scanner Module RD4500I 2d Scan Engine Fixed Mount Payment Terminal 3PDF417 Laser Scanner Module RD4500I 2d Scan Engine Fixed Mount Payment Terminal 4
