200mW 256*192 Uncooled Temperature Measuring Thermal Module

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SCANMAX
Certification: CE, RoHS
Model Number: FT10
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 200PCS/Week
Resolution: 256*192 Image Frame Rate: 25Hz/15Hz
Operating Temperature: -15℃~+60℃ Size / Mm: 62*42*25
Control Interface: USB Power Consumption: <200mW*
High Light:

Uncooled Temperature Measuring Thermal Module

,

256*192 Temperature Measuring Thermal Module

,

200mW Face Recognition Thermal Module

FT10 OEM Uncooled Thermal Imaging Temperature Measuring Module



Body Infrared Thermal Imager​ Product Description
The temperature measuring thermal imaging module is developed based on wafer chip scale packaging uncooled vanadium oxide infrared detector, fit for working with various intelligent platform. It boasts the features of high performance, low power consumption, small size and easy for development and integration. It meets the secondary development requirement of various infrared temperature measuring applications.


Product Features
*Small size, easy integrated,size :62mm (L)*42mm(W)*25mm(H);
*USB interface, easy to connect;
*Low power consumption;
*High image quality
*Accurate temperature measurement;
*Standard data interface, supporting secondary development, easy to *integrate, and supporting access to various intelligent processing platforms.



Product Parameters

Model FT10
Resolution 256*192
Cellspacing 12μm
Angle of view 25.5°*19.2°
Image frame rate 25Hz/15Hz
NETD ≤60mK@f#1.0
Operating temperature -15℃~+60℃
Supply voltage 3.8V-5.5V DC
Power consumption <200mW*
Weight <18g
Size / mm 62*42*25
Data interface Control interface/USB
Control interface USB
Image enhancement Multi-gear detail enhancement
Picture correction Shutter correction
Swatches White Hot/Black Hot/Multiple Pseudo Color Options
Temp measurement range 0 ℃ ~ + 60 ℃
Temp measurement accuracy ± 0.5 ℃ / ± 5% of range
Temp correction Manual / Auto
Temperature data output Real-time parallel output
Temp measurement statistics Support maximum / minimum statistics, Temperature analysis

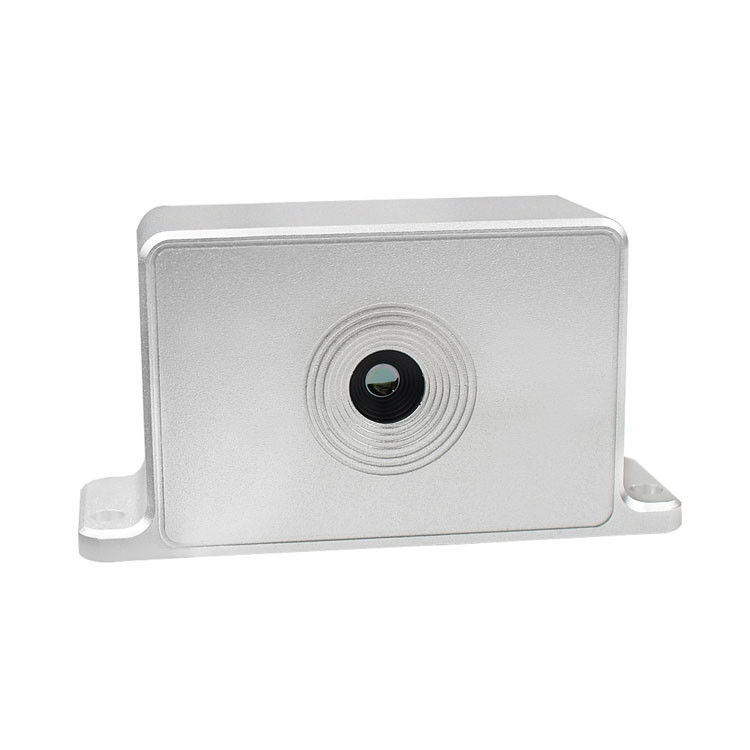

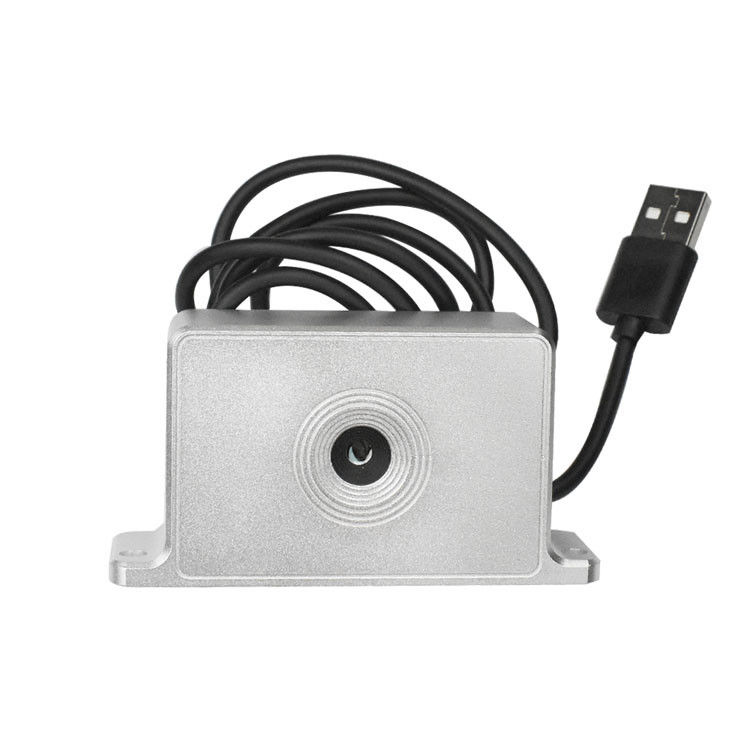

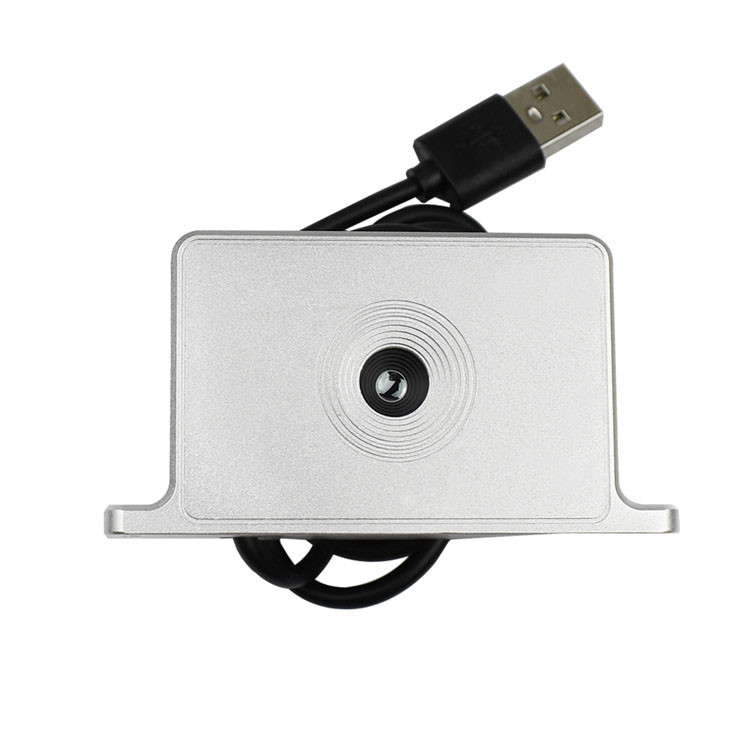

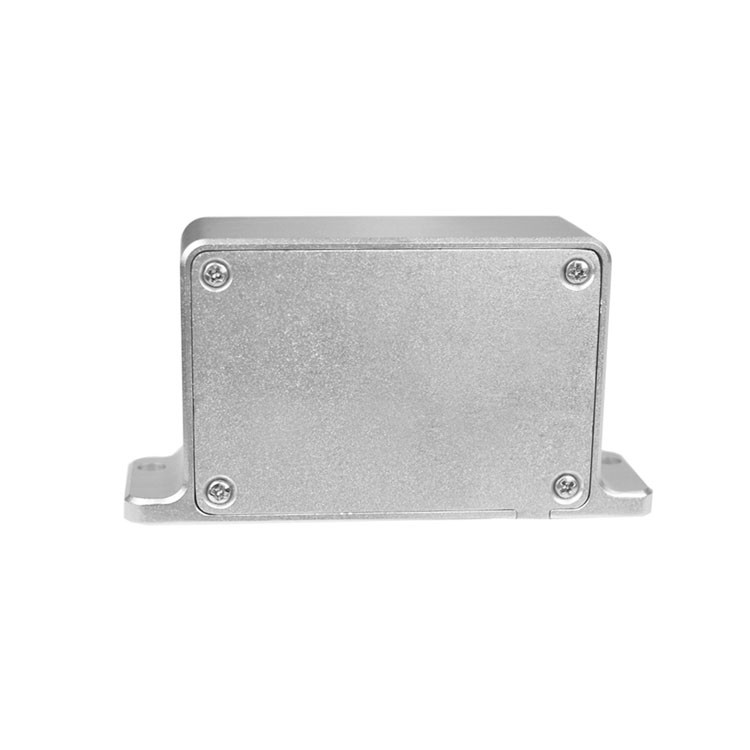

200mW 256*192 Uncooled Temperature Measuring Thermal Module 0200mW 256*192 Uncooled Temperature Measuring Thermal Module 1200mW 256*192 Uncooled Temperature Measuring Thermal Module 2200mW 256*192 Uncooled Temperature Measuring Thermal Module 3200mW 256*192 Uncooled Temperature Measuring Thermal Module 4

200mW 256*192 Uncooled Temperature Measuring Thermal Module 5200mW 256*192 Uncooled Temperature Measuring Thermal Module 6200mW 256*192 Uncooled Temperature Measuring Thermal Module 7
