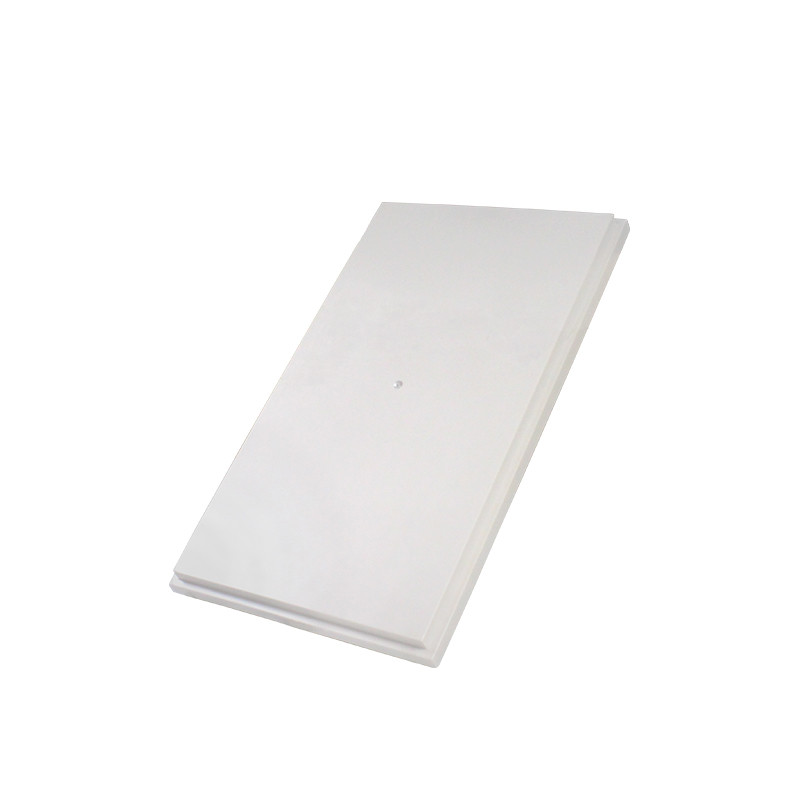

RS232 / RS485 Uhf Rfid Integrated Reader 10dBi Long Range 10dBi Polarization ISO18000-6C

RS232 / RS485 Uhf Rfid Integrated Reader 10dBi Long Range 10dBi Polarization ISO18000-6C

    • RS232 / RS485 Uhf Rfid Integrated Reader 10dBi Long Range 10dBi Polarization ISO18000-6C
    • RS232 / RS485 Uhf Rfid Integrated Reader 10dBi Long Range 10dBi Polarization ISO18000-6C
    • RS232 / RS485 Uhf Rfid Integrated Reader 10dBi Long Range 10dBi Polarization ISO18000-6C
    • RS232 / RS485 Uhf Rfid Integrated Reader 10dBi Long Range 10dBi Polarization ISO18000-6C
  • RS232 / RS485 Uhf Rfid Integrated Reader 10dBi Long Range 10dBi Polarization ISO18000-6C

    Product Details:

    Place of Origin: China
    Brand Name: SCANMAX
    Certification: GB/T7722-2005
    Model Number: SM-8288A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiation
    Packaging Details: Normal craft paper and foam
    Delivery Time: Within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
    Supply Ability: 200PCS/Week
    Contact Now
    Detailed Product Description
    Working Frequency: 902~928 MHz Or 865~868MHz Protocol: ISO18000-6C(EPC C1 GEN2)
    Working Way: Buzzer & LED Antenna Gain: 10dBi Polarization

    Description



    SM-8288A fixed RFID reader could be applied in various harsh working environment for multiple protocol compatible and reading fast. Full support the tag of ISO-18000-6C or ISO-18000-6B. Its stable reading distance is 12 - 15m (related to the tag and environment), it has a beautiful shape. IP-65 protection case for water-proof, easy to install.



    SM-8288A Fixed RFID Reader Key Features



    1. A shape of linear, the LED will light when read a tag.



    2. Could used in some very cold area, such as northeast and northwest, because its ability of lighting-resisting and lower temperature protection.



    3. The output power is 30dbm, support multi work modes (auto, command, triggering).



    4. Applied in various application: vehicle and entrance guard, electronic free collection, logistic management and production automatic.



    5. Can connect with the device which has W26 and W34 interface, no need to develop.



    6. Wake up tags: tag only be waked up when communicate with reader, prevent the disturbing from other tags, ensure the correct information between reader and system's tag.



    Mainly application as follows:



    1. Parking management: Long range intelligent parking management and automatic charge without stop the car.
    2. Production line management: Goods identification for production flow.
    3. Auto Access control: Long range access control management for custom, sea port.
    4. Logistics and warehouse management.
    5. People auto registry for important meeting or exhibition.
    6. Automatic weighing and data capture.



    SM-8288A Fixed RFID Reader Specification



    Performance parameters
    Working Frequency 902~928 MHz or 865~868MHz
    Protocol ISO18000-6C(EPC C1 GEN2)
    Radio frequency power 0dBm~30dBm(Adjustable)
    Software & SDK DEMO and C#, VC, VB, Java, DELPH, etc.,
    Encryption Can be directly encrypted, copy prevention.
    Reading range stable reading range 12~15M (Depends on tag&environment)
    Industrial lightning protection 6000V industrial lightning protection
    Low temperature protection Northeast, Northwest extremely cold region, low temperature protection
    Frequency modulation way Broad spectrum frequency hopping or fixed frequency
    Input/output port Two-way relay output(customized), one-way trigger input
    Antenna gain 10dBi polarization
    Working way Buzzer & LED
    Power 12V/3A Adaptor
    Physical parameters
    Item size 420x240x50mm
    Package size 600x310x110mm
    Net weight 4KG
    Shell material ABS
    Working temperature -20℃~+65℃
    Storage temperature -45℃~+95℃
